• Model NO.：FD50
• Lift height：>5000mm
• Condition：New
• Center of Load：600mm
• Min.Turning Radius：3250mm
• Max.Traveling Speed：26km,H
• Overall Width：2235mm
• Transport Package：Standard Container
• Specification：2480x1150x2120mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84272090
• Production Capacity：500

Specificationsunit FD50CharacteristicsPower dieselRated Capacitykg5000Center of loadmm600Lifting heightmm3000Free lifting heightmm203Forks L×W×Hmm1220×150×55Tilt Forward/Backward.6/12Min.turning radiusmm3250Min.ground clearance(Mast)mm200Overhead guard heightmm2460Height from seat to overhead guardmm1050Front overhangmm610PerfMax.traveling speed(loaded)km/h26Max.lifting speed(loaded/empty)mm/s370/450Drawbar pull/GradeabilitykN/%51.4/20DimensionsOverall length (without fork)mm3431Overall widthmm2235Mast lowered height mm2500Mast extended heightmm4417ChassisTireFront 8.25-15-14PRRear 8.25-15-14PRWheelbasemm2250Tread widthFront/Rearmm1470/1700Curb weightNone-loadkg7980PowertrainBatteryVoltage/CapacityV/Ah(12/90)x2EngineModel CY6102BG6Rated powerkw/r.p.m81/2500Rated torqueNm/r.p.m353/1700Cylinder amount 6Bore×Stroke mm102×118Displacement 5.785Fuel tankL140Transmission 1/1 automatic transmissionWorking pressureMPa20

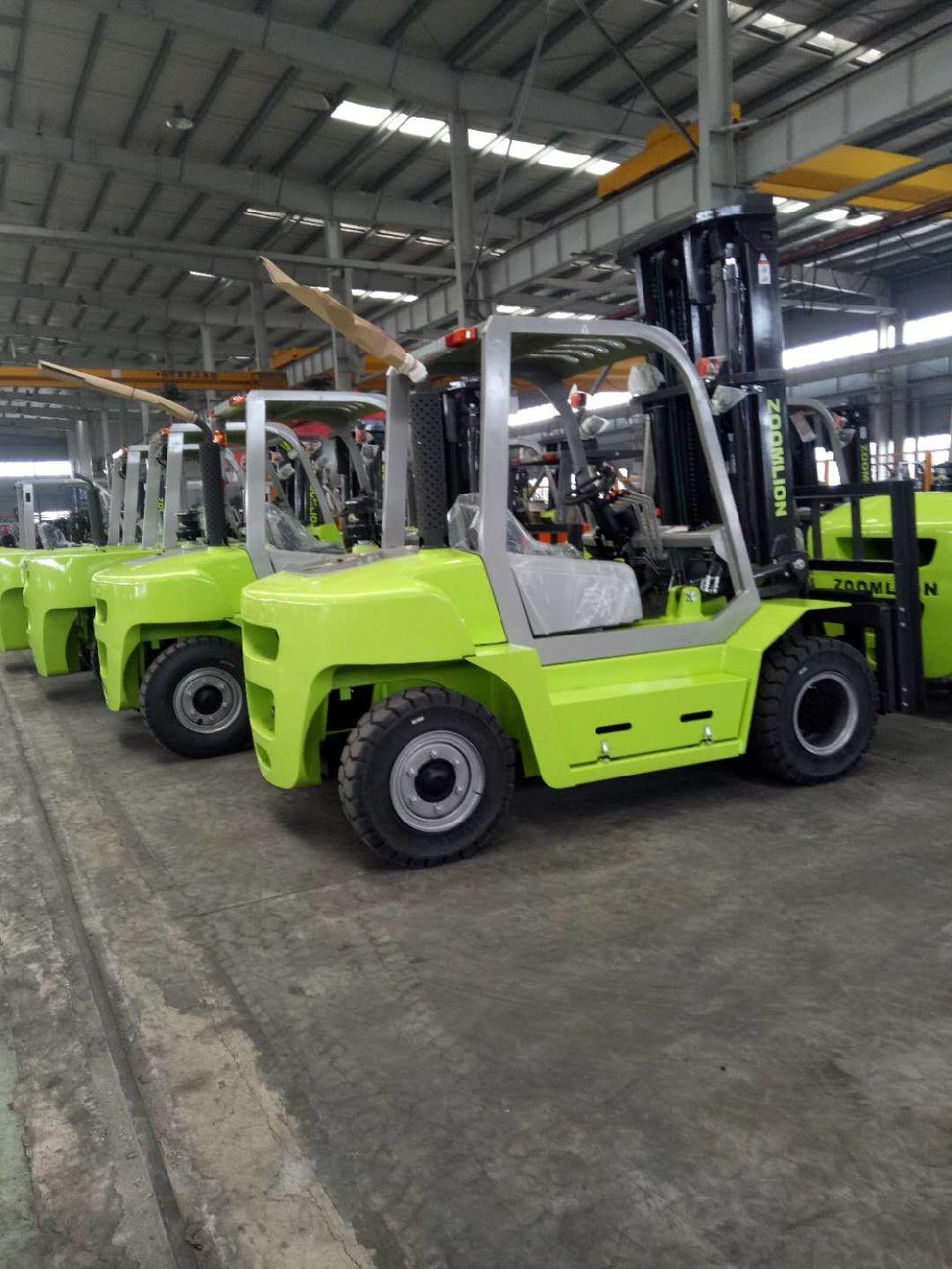

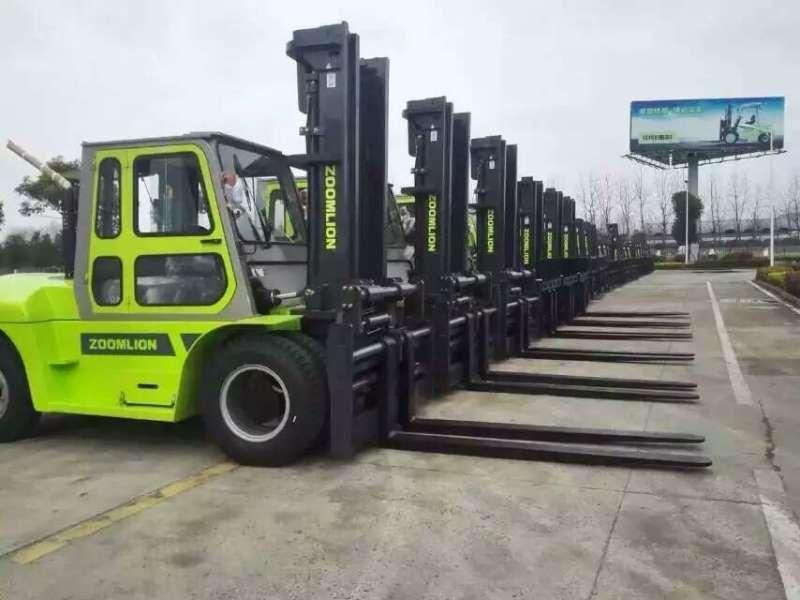

Product Image
