Factory Supply Warehouse Walkie Forklift Full Electric Pallet Stacker
Jining Bafang Mining Machinery Group Co., Ltd.- Cab Location：Not Adjustable
- Type：Stacker
- Power：DC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：>500mm
Base Info
- Model NO.：BF-CDD
- Lift height：Less Than 2m
- Condition：New
- Transport Package：Wooden Frame
- Trademark：Bafang
- Origin：China
- Production Capacity：500sets,Month
Description

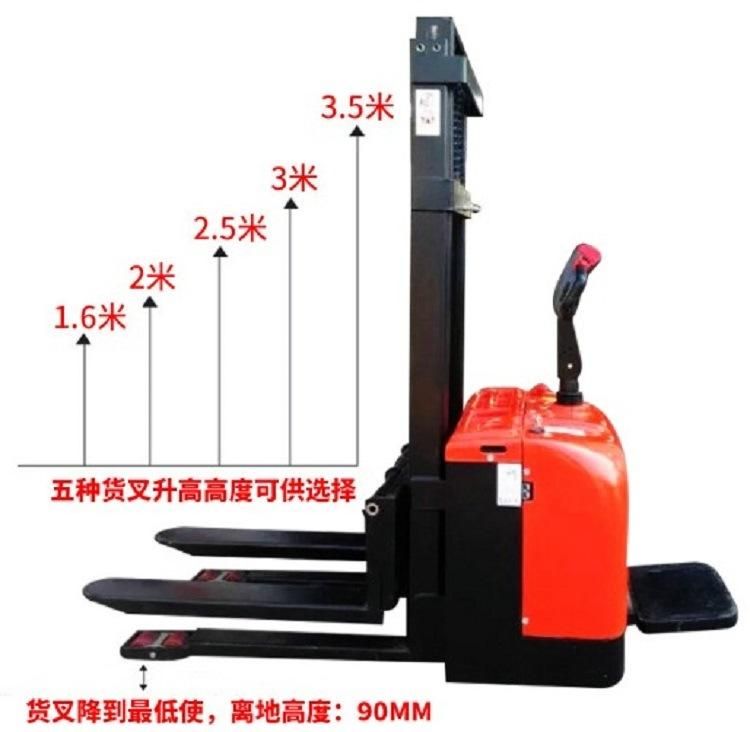

Model
Loading(kg)
Lifting height(mm)
Vehicle width(mm)
Vehicle length(mm)
Fork off the ground(mm)
Load center distance (mm)
CDD1516
1500
1600
860
1870
85
500
CDD1520
1500
2000
860
1870
85
500
CDD1525
1500
2500
860
1870
85
500
CDD1530
1500
3000
860
1870
85
500
CDD1535
1500
3500
860
1870
85
500
CDD1540
1500
4000
860
1870
85
500
CDD1545
1500
4500
860
1870
85
500
Please pay attention as follow:
Loading: Can choose 0.5/1/1.5/2 ton, and can be customized 2.5ton
Driving style: stand-type electric operation
Braking method: battery brake
Front wheel size: 80*70mm
Drive wheel size: 250*80mm
Balance wheel size: 125*50mm
Battery voltage / capacity: 24V/210AH

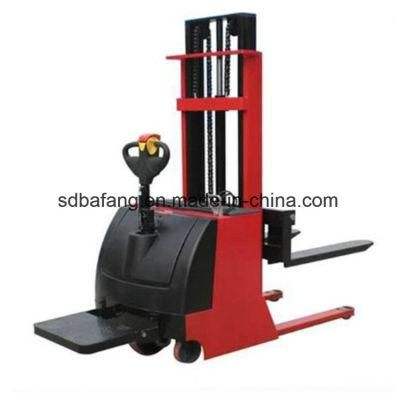

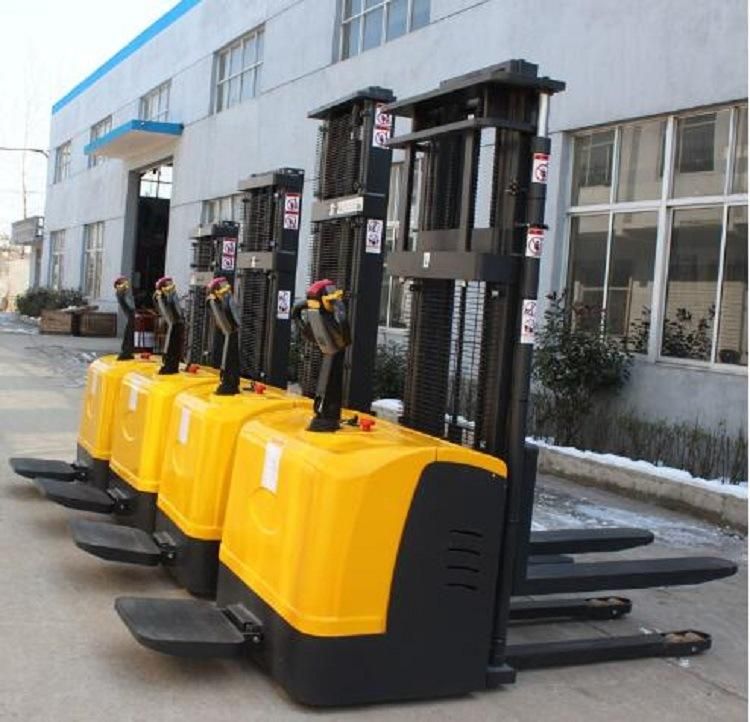

Product pictures
Company information
For more detailed specifications please feel free to contact with us
Jining Bafang Mining Machinery Group Co.,Ltd
Name:Mavis Zhang
Telephone:86-537-2228876 +86-13012657265
Web:sdbafang.en.made-in-china.com
