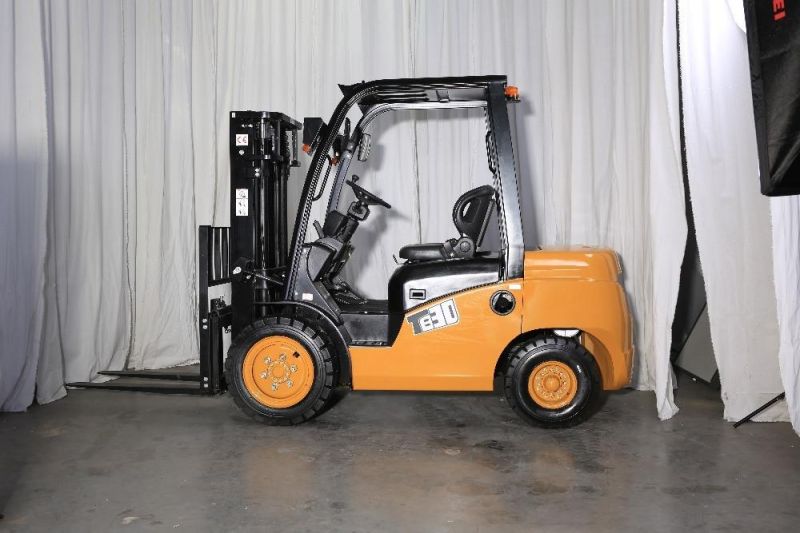

3.0ton Diesel Forklift Truck

Shanghai Hytger Industry & Trade Co., Ltd.
  • Warranty：12months
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：CPCD30-T3
  • Lift height：3000~5000mm
  • Condition：New
  • Name：3.0ton Diesel Forklift Truck
  • Capacity：3000kg
  • Lifting Height：3000mm
  • Free Lift：120mm
  • Fork Size：1070*125*45mm
  • Overall Size：2710*1225*2190mm
  • Min Turing Radius：2450mm
  • Weight：4020kg
  • Engine：Xinchai
  • Transport Package：Seaworthy Packing
  • Specification：CE, SGS, ISO
  • Trademark：SHYTGER
  • Origin：Shanghai, China
  • HS Code：84312090
  • Production Capacity：1200units,Year

Description

3.0ton Diesel Forklift TruckBasic ParameterItem No:                      CPCD30Load capacity:              3000kgAttachment:                 Block clamps attachment3.0ton Diesel Forklift TruckAttention:1.ISUZU,NISSAN,Mitsubishi etc is alternative2.Hydraulic gear box automatic is available2.2 Stage full free mast,3stage full free mast is available3.Sideshift,bale,block paper roll clamps etc can be alternative.   4,All colors are available.Remarks:1.Trade terms:FOB,CFR,CIF are available.2.Delivery time:within 25days received payment.3.Packing:Nude,by container4.Warranty:2000 working hours or 12month.
Specification:General1Model  CPCD302Power Type  Diesel 3Rated Capacity kg30004Load Centre mm500CharacteristicLift Height mm30006Fork Size L×W×T mm1070×125×457Mast Tilt AngleF/R Deg6°/11°8Front Overhang (Wheel center to fork face)4819Ground Clearance (Bottom of mast) 10Overall DimensionLength to face of fork (Without fork)mm2710  11 Overall Width mm120012 Mast Lowered Height mm200513 Mast Extended Height (With backrest) mm421014 Overhead Guard Height mm214015Turning Radius (Outside)mm2450Performance16Speed Travel (Full km/h20/18 17Lifting (Full mm/s400/400 18Max. Gradeability %20Chassis19TireFront  28×9-15-14PR20Rear  6.50-10-10PR21Wheelbase mm175022Service Weight kg4250Power23BatteryVoltage/Capacity V/Ah12/80 24EngineModel  WP2.7G55E225Manufacture  WEICHAI26Fuel Tank Capacity L70



FAQ:

T/T,L/C,Western Union,Paypal etc.

Company information:
Since the foundation, Shanghai Hytger Industry & Trade Co., Ltd. has striven to offer you high-class material handling solutions and high-class services. HYGTER has specialized in manufacturing and selling forklift trucks, stackers, pallet trucks, loader trucks, container cranes, tire presses, dock ramps, aerial work platforms and other hydraulic equipment and their parts. After many years of successful development, HYGER has grown to be a strong global supplier of material handling equipment and construction machinery.
