• Model NO.：TK15A-30
• Load Capacity：1T - 5T
• Fuel：Electric
• Load center：>500mm
• Lift height：>5000mm
• Condition：New
• Transport Package：Nude Packing
• Specification：SMALL
• Trademark：GP
• Origin：China
• HS Code：8427109000
• Production Capacity：10000
• Package size per unit product：22.00cm * 96.00cm * 196.50cm
• Gross weight per unit product：2485.000kg

Basic Info.

Model NO. TK15A-30 Load Capacity 1T - 5T Fuel Electric Load center >500mm Lift height >5000mm Condition New Transport Package Nude Packing Specification SMALL Trademark GP Origin China HS Code 8427109000 Production Capacity 10000

Packaging & Delivery

Package size per unit product 22.00cm * 96.00cm * 196.50cm Gross weight per unit product 2485.000kg

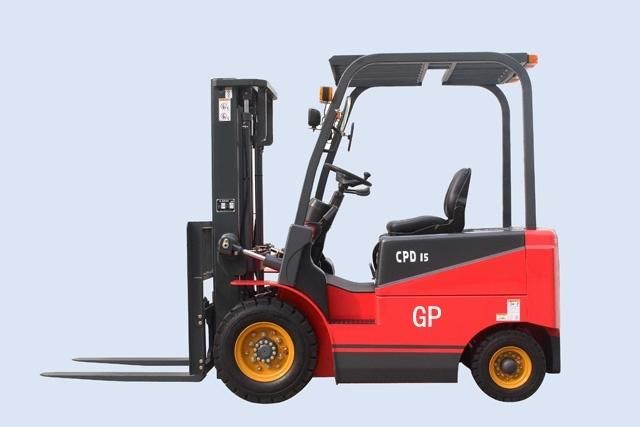

Product Description

1. Easy to drive and simplicity are key elements you are looking for the counterbalanced trucks in the TAK series fit your needs.
2. The electric counterbalance TKA series includes a choice of forklifts with lifting capacity from 1000 to 1500 kilograms and lift heights up to 4.5 meters (double mast)
3. Incline safe lock, Oil duct security trip valve

Model	TK10A-30	TK15A-30
Load capacity kg	1000	1500
Load center mm	500	500
Lifting height mm	3000	3000
Fork size	920*100*35	920*100*35
Mast tilt (forth/back)	2o/5o	2o/5o
Mast height mm	2155	2155
Max lift mast height mm	3738	3738
Overhead guard height mm	1980	1965
Height between the seat and the ground mm	930	920
Overall length(include forks) mm	2320	2420
Overall width mm	850	960
Wheelbase (adjustable) mm	869-949	947-1027
Gap between the truck and the ground mm	90	90
Turning radius mm	1167	1236
Steering type	Hydraulic	Hydraulic
Driving speed(load/unload)km/h	6.3/8.3	6.0/8.0
Gradeability %	8	8
Service brake	Hydraulic	Hydraulic
Parking brake	mechanical	mechanical
Battery 24V	D-360	D-420
Weight(including battery) kg	2278	2485
Driving motor kw	2.5	2.5
Lifting motor kw	3	3
Front wheel size *2pc	305×127×203.2	305×140×203.2
Rear wheel size *1pc	267×140	267×140
