• Model NO.：FDS30
• Lift height：>5000mm
• Condition：New
• Transport Package：Nude Packing
• Specification：4555*2000*2460mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000

Rated load capacity (loader center≤0.6m)3000kgMax. lifting height3.6mfree lifting height0.3mMax. lifting speed (full load)≥0.3m/sdriving speedforward20km/hreverse20km/hFork dipping angle up/down5°/3°Min. turning radius4250mmMax. traction force20.678KNGradeablity20%Ground clearance (Bottom of mast)160mmdimensionsLength4555mmWidth (Without the back mirror)2000mmHeightfork down2460mmfork lifting4660mmWheel base2250mmTrack base1600mmPlatform length4555mmPlatform width1200mmFork size(L×W×H)1070×125×45mmMax. base of the forks0.94mBattery(V/Ah)12/80Tire2×28×9-15-12PR(front)
2×28×9-15-12PR(rear)Service weight5300kgTransmissionTypeHydraulicStageFWD/RVS1/1EngineModelYanmar 4TNE98Rated power(kw/r.p.m.)42.1/2300Rated Torque/r.p.m(kw/r.p.m.)187-207/1700
Product Detail:



1.
    In the warehousing process, when the body go into the channel, the fork can face the shelf or goods. In the loading and unloading operations, the forklift can do not turn in the first time,And then work. this characteristic makes side forklift truck is suitable for narrow channel operations.

2.
    Side forklift is advantageous to the long goods, because long goods is parallel with the body,and this forklift can be not limited by the channel width. The side forklift to faster handling long goods.

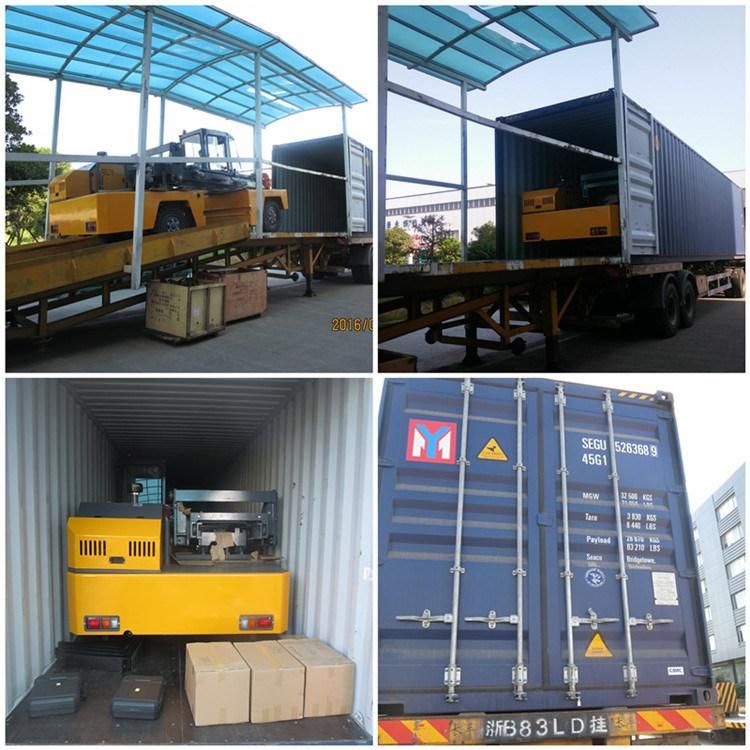

Packing&Shipping:



Our Customer:





About Us:

     Since foundation, LTMG Machinery Group(LTMG)  has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.  with product type and series: 1-40 ton Forklift Trucks(diesel, gasonline, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift loaders,(as well as grapple loaders, side loaders.), wheel excavators and so on.







Welcome to contact us!
