• Model NO.：HF20
• Fuel：Manual
• Load center：500mm
• Lift height：110mm
• Condition：New
• Fork Length：1100mm,1200mm
• Capacity：2500kg
• Lifting Height：110mm
• Transport Package：Container
• Specification：Could be designed by buyers
• Trademark：LTMG
• Origin：China
• HS Code：8427900000
• Production Capacity：2000sets,Year

ModelHF20Capacity(kg)2500Min.fork height(mm)85/75Max.fork height(mm)195/185Lifting height(mm)110Fork length(mm)1150/1220Single Fork width(mm)160Fork overall width(mm)550/685Fork wheel-single(mm)Φ80X93/74X93Fork wheel-tandem(mm)Φ80X70Steering Wheel(mm)Φ180X50Self Weight(kg)73-92Qty/20 feet container(pcs)180/144

Product Features

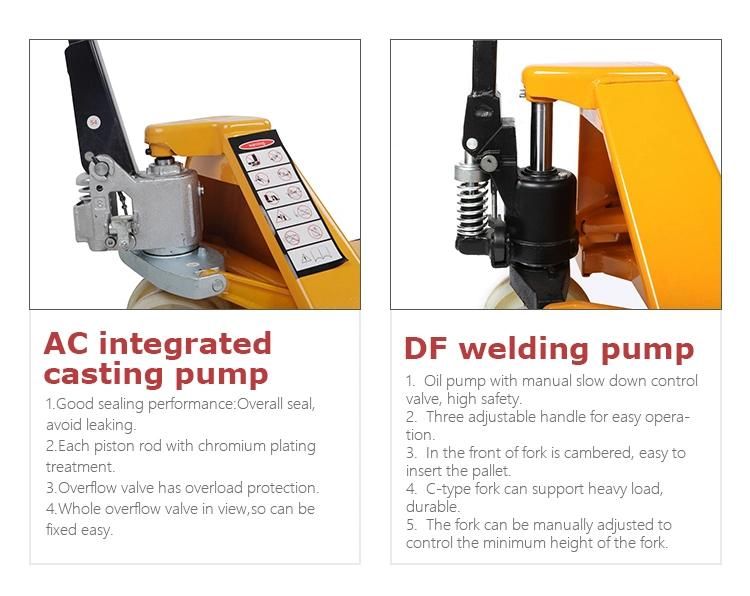

1) Galvanizing fully-sealed pump,double tandem nylon wheels.

2) Strengthen body and fork, 210 steering arc, small turing radius, fork lowering speed is controllable.

3) Entry/exit roller, easy to entry into the pallet,equipment with over-load valve, 3 position hand control,
durable, versatile and easy to use.

4) Heavy duty steel adjustable push rods/steel c-channel/handle base, Powder-coat paint finish.

5) Rebuildable pump, Handle bolt designed for easy assembly and removal.

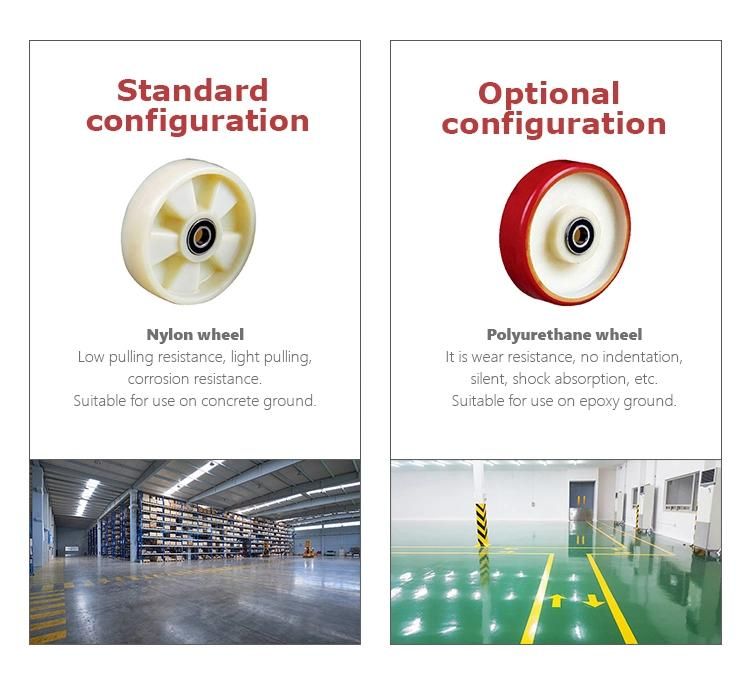

6) Options: PU/Rubber load wheels, single wheel,stainless steel and galvanized trucks available,various
fork lengths and widths,backrests.
