• Model NO.：FG25
• Lift height：3000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Warranty：1 Year or 2000 Hours
• Weight：3580kg
• Tire Type：Pneumatic
• Engine：Nissan
• Color：Decided by Buyer
• Mast Height (Fork Lowering)：1995mm
• Free Lift：160mm
• Battery：12,60V,Ah
• Wheelbase：1600mm
• Transport Package：Container
• Specification：2530mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

Features   Manufacturer     LTMGModel   Power shift T/M        FG25Load capacity kg2500Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type Front/rear PnenumaticWheel Front/rear 2/2Dimension Max. lifting height mm3000Free lift  mm160Fork size L*W*Tmm1070*122*40Tilt rangeMast forward/backwarddeg6/12Overall length(without fork)  mm2530Total width mm1150Mast height (fork lowering) mm1995Overall height fork raisedWith backrest mm4030Height to head guard mm2120Turning raduis(outside)  mm2240Front face of fork to front axle mm450Min. right angle stacking aislewithout load length&clearence                    mm2690PerformanceSpeedMax Travelling                 full/no loadkm/h17/19Lifting full/no load mm/s550/580Lowering full/no load mm/s450/550Max.drawbar pullPower shift T/M full/no load    kg1650/830Gradeability at 1.6km/hPower shift T/M  full/no load   %22/18Weight           Truck weight  kg3580Weight   distributionFull load  front/rearkg5370/710No   load  front/rear kg1390/2190Frame          Tires                                       Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread                                                Front/rearmm970/970Ground clearence                 At lowest point(mast)       mm110Framemm115Brake                                           Service brake Hydraulic-foot pedal  Parking brake Mechanical-hand lever   Engine       Battery                                         Voltage/capacityV/AH12/60Engine    Model Nissan K21Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m   max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL70TransmissionSpeed forward/backward Power shift T/M                        1-1 power shift T/MOperating pressureHydraulic system pressure kg/cm²180Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.


After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG8 supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.



Company information

Our Customer

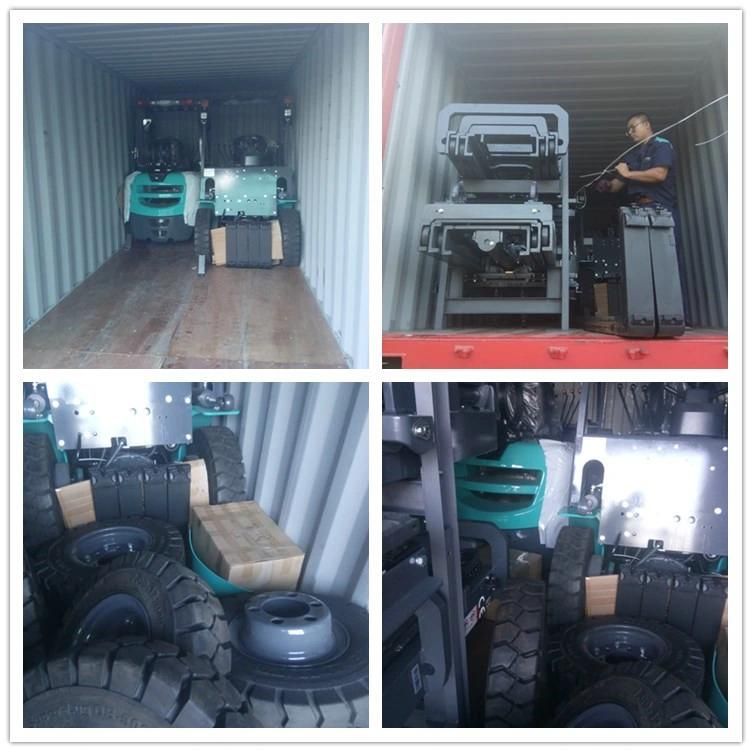

Shipping&Packing
