Ltmg New Brand 2.5 Ton Electric Forklift with Competitive Price
Xiamen LTMG Machinery Co., Ltd.- Warranty：1 Year,2000 Working Hours
- Cab Location：Not Adjustable
- Type：Powered Pallet Truck
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
Base Info
- Model NO.：FB25
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Fork Size：1070mm*120mm*40mm
- Weight：3820kg
- Wheelbase：1510mm
- Overall Length(Without Fork)：2360mm
- Max.Lifting Height：3000mm
- Color：Customize
- Tire Type ：Pneumatic
- Optional：Side Shift, Solid Tires, etc
- Height to Head Guard：2240mm
- Transport Package：Container
- Specification：2360mm*1160mm*2240mm
- Trademark：LTMG
- Origin：China
- HS Code：8427109000
- Production Capacity：800sets,Year
Description
SpeedMax Travellingfull load km/h 13.5 Max Travellingno load km/h 14.5 Lifting full load mm/s 240 Lifting no load mm/s 450 Gradeability full load % 12.5 Truck weight(with standard battery) kg 3820 Weight distribution Full load front/rear kg 5425/895 No load front/rear kg 1425/2395 Tires Number front/rear 2/2 Model front axle 21*8-9-16PR rear axle 18*7-8-14PR Wheelbase mm 1400 Tread Front/rear mm 955/950 Ground clearance At lowest point(mast) mm 110 Frame mm 115 Brake Servicebrake Hydraulic-foot pedal Parking brake Mechanical-hand lever Battery Voltage/capacity V/AH/5hr 48V-450 Weight with box (standard) kg 825 Electric motor AC Driving motor kw 11 DC Hydraulic driving motor kw 8.6 AC Hydraulic driving motor (as option) kw 13 Control type Driving AC , lifting DC
Driving AC , lifting AC(as option ) Operating pressure kg/cm² 175
Product Features

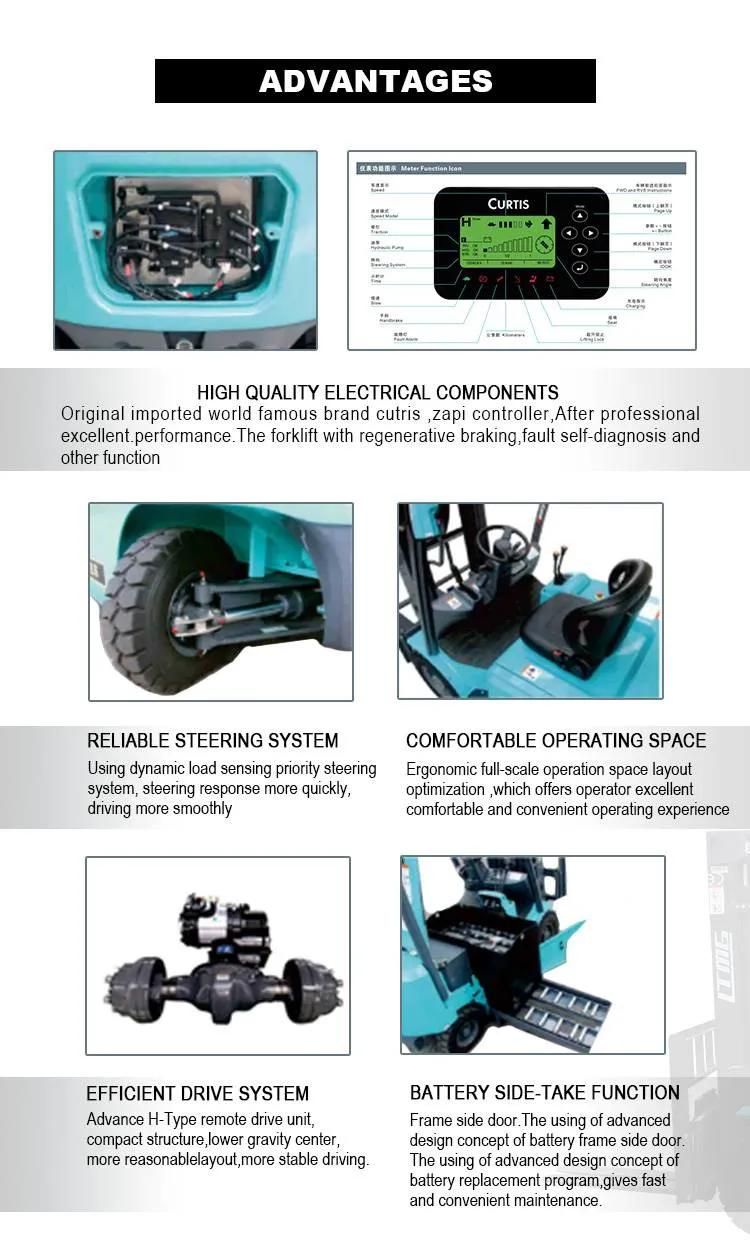

1.Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.
2.Designed to work in the rain, electric forklift can be used in various kinds of wet and dry environments.
3.Ergonomics Adjustable seat:Designed according to the ergonomic principles, make the operation much comfortable and also relieves the fatigue caused by long continuous operation.
4.Bigger and non-slip step make operating convenient and safe.
5.The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition
Driving AC , lifting AC(as option )
Product Features
1.Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.
2.Designed to work in the rain, electric forklift can be used in various kinds of wet and dry environments.
3.Ergonomics Adjustable seat:Designed according to the ergonomic principles, make the operation much comfortable and also relieves the fatigue caused by long continuous operation.
4.Bigger and non-slip step make operating convenient and safe.
5.The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition

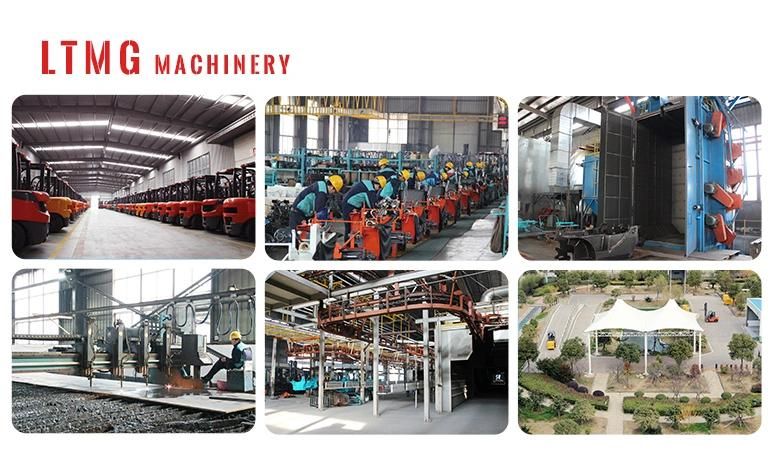

Factory&Customer
