• Model NO.：FD350
• Lift height：3000~5000mm
• Condition：New
• Fork Size：2440mm*340mm*125mm
• Weight：43000kg
• Engine：Cummins,Weichai
• Wheelbase：4800mm
• Attachment：Coil Ramp
• Warranty：1 Year or 2000 Hours
• Overall Length(No Fork)：6800mm
• Free Lift Height：130mm
• Optional：Side Shift, Solid Tyres, Three Stage Mast, etc
• Mast Tilt Angle：12,10degree
• Transport Package：by Bulk
• Specification：9640mm*3320mm*4310mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

ModelUnitFD350Rated load 35000Load center 1250Mast tilt angle (front/rear)º6/12Overall dimensionsLengthmm9640Widthmm3320Heightmm4310Mast lifting heightmm3500Fork size (L*W*H)mm2440X340X125Min. turning radiusmm6800Max. travel speed (with load)Km/h28Lifting speed (with load)mm/s260Gradeability (with load)%20WeightKg43000Front 4X16.00-25/32PRRear 2X16.00-25/32PRWheel treadFrontmm2810Rearmm2450Wheelbasemm4800Min. ground clearancemm350Model WD10G240E21Rated power/rotate speedKW/r.pm175/2200Max. torque/rotate speedN.m/r.pm1000N·m /1600rpm

Product Features


1. Adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection,
satisfies the requirement of high efficiency operation.

2. Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.

3. Adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing,
easier for operation.

4. Variable speed control valve matched with neutral starter, the machine start more secure.

5. Front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and
wheel planetary wheel deceleration increasing twist, steel structrue bridge shell support, increase the load capacity
and service life.

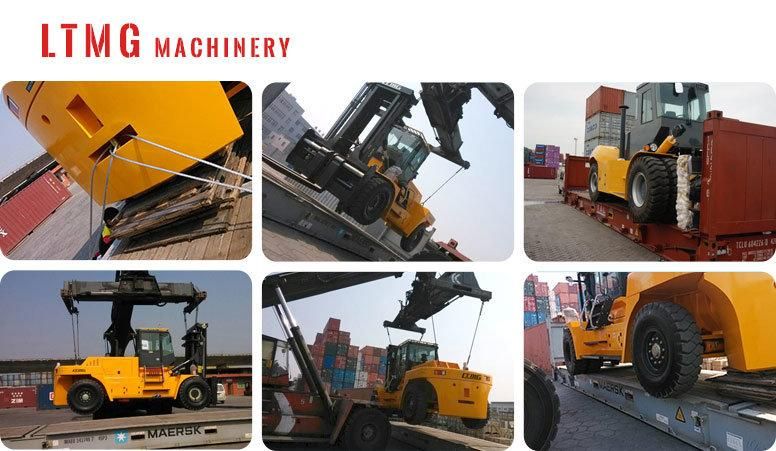

Packing&Shipping






After sales service

Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please check our website and product certificate.

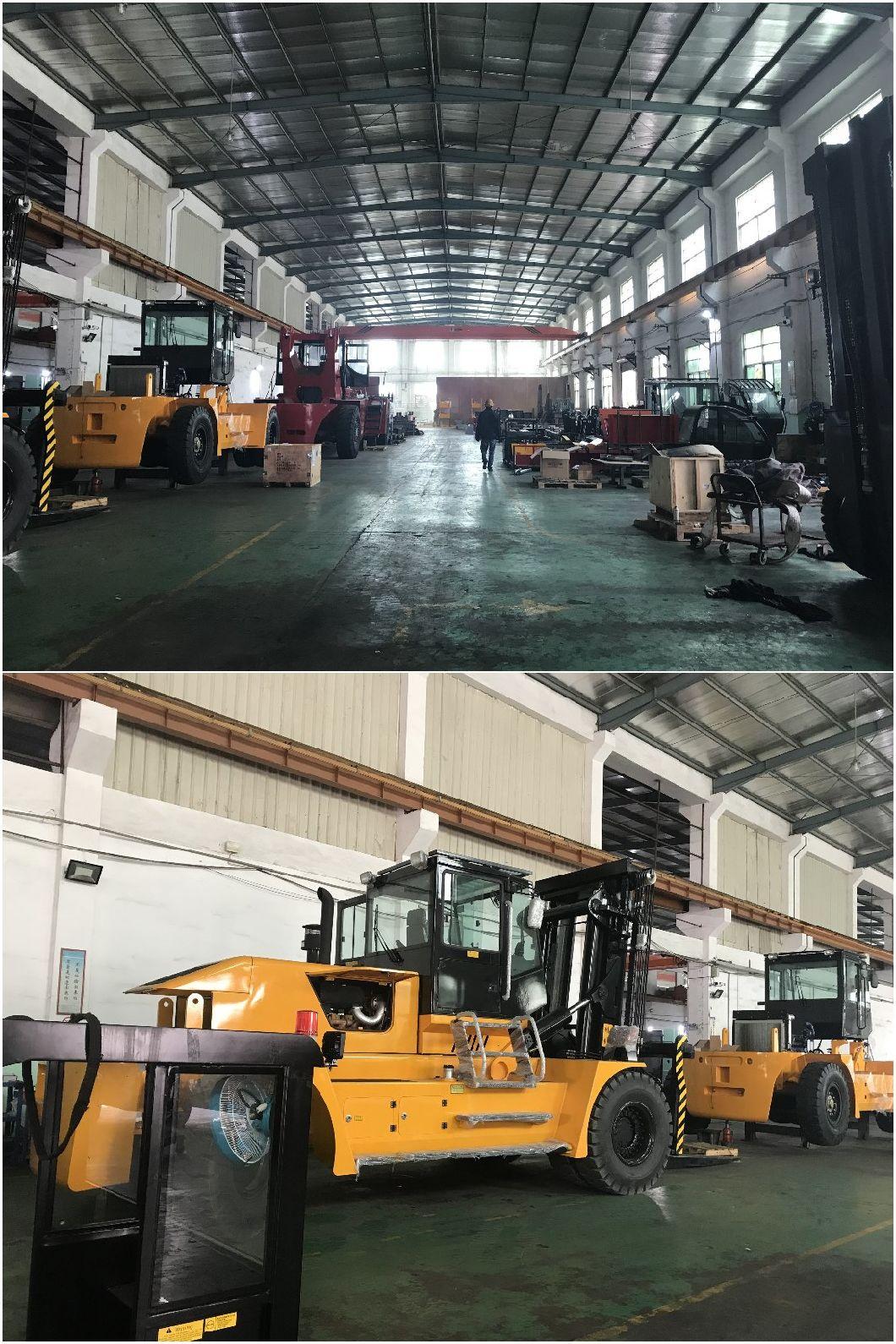

Factory


Customer&Exhibition





FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.


2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products 30 days.
