• Model NO.：ESG112-35
• Load Capacity：1.2t
• Fuel：Electric
• Load center：500mm
• Lift height：3500mm
• Condition：New
• Color：Customer Required
• Wheel：PU
• Service Weight：1120kg
• Min Turning Radius：1630mm
• Fork Size：1150*685mm
• Transport Package：Standard Export Package
• Specification：1696*790mm
• Trademark：GP
• Origin：Jiangsu, China
• HS Code：84271090
• Production Capacity：4000units,Momth
• Package size per unit product：184.00cm * 85.60cm * 141.30cm
• Gross weight per unit product：1120.000kg

Basic Info.

Model NO. ESG112-35 Load Capacity 1.2t Fuel Electric Load center 500mm Lift height 3500mm Condition New Color Customer Required Wheel PU Service Weight 1120kg Min Turning Radius 1630mm Fork Size 1150*685mm Transport Package Standard Export Package Specification 1696*790mm Trademark GP Origin Jiangsu, China HS Code 84271090 Production Capacity 4000units/Momth

Packaging & Delivery

Package size per unit product 184.00cm * 85.60cm * 141.30cm Gross weight per unit product 1120.000kg

Product Description

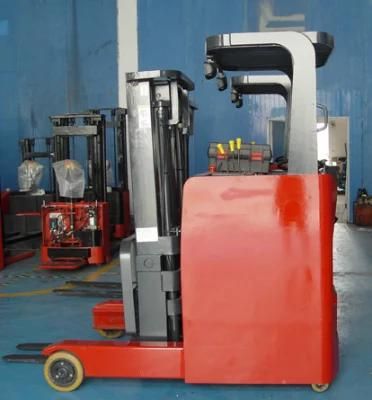

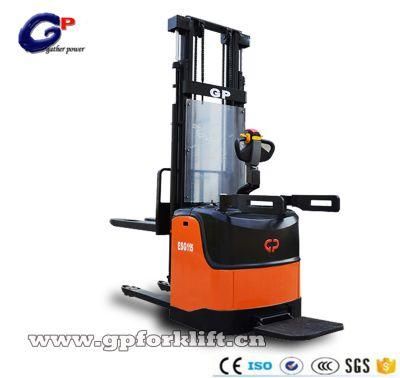

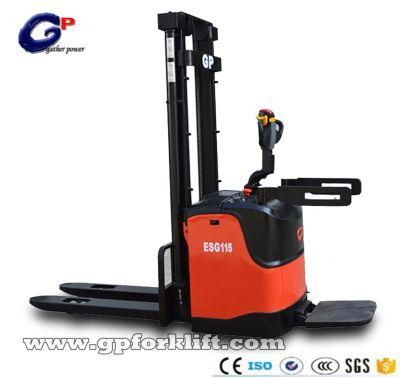

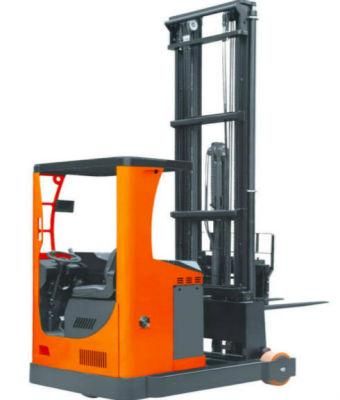

Main Characteristics of 1.2t Standard Electric stacker
1) Designed for warehouse,indoor yard, and warehouse with high rack and narrow aisle
2) Full electric driven and work
3) Advanced electric control system, high quality and energy-efficient electronic components, low calorific value
4)High efficiency and reliable hydrulic system
5) Stepless speed control system


model		ESG112
operating type		Stand on
power source		battery
load capacity	Kg	1200
load center	mm	600
wheel type		PU
service weight	Kg	1120
wheel base	mm	1390
Overall length  (pedal away/pedal on)	mm	1840/2260
Overall width	mm	856
Fork dimension(thickness/width/length)	mm	60/180/1150
Outside width between forks	mm	570/600/650/685
min.ground clearance	mm	25
min.turning radius	mm	1630
Min.aisle width for pallets	mm	2180
Gradeability (laden/unladen)	%	5/7
Travel speed(laden/unladen)	Km/h	5.5/6
Lift speed(laden/unladen)	mm/s	100/110
Lowering speed(laden/unladen)	mm/s	110/100
Brake type		Electromagnetic
drive motor(AC)	Kw	1.5
lift motor(DC)	Kw	2.2
steering motor(DC)	Kw	0.165
battery voltage	V	24
battery capacity	Ah	180
controller		CURTIS
