- Model NO.：ETV120-60
- Lift height：6000mm
- Condition：New
- Color：Customer Demand
- Material：Steel
- Wheelbase：1480mm
- Drive Motor：2.2kw
- Lift Motor：5kw
- Battery：48V,400-450ah
- Working Pressure：100 Bar
- Speed Control System：Zapi,Curtis,Sme
- Service Brake：Mechanical
- Turning Radius：1740mm
- Transport Package：Export Standard Package
- Specification：ISO, SGS, CE
- Trademark：GP
- Origin：Jiangsu
- HS Code：8427900
- Production Capacity：500unit,Month

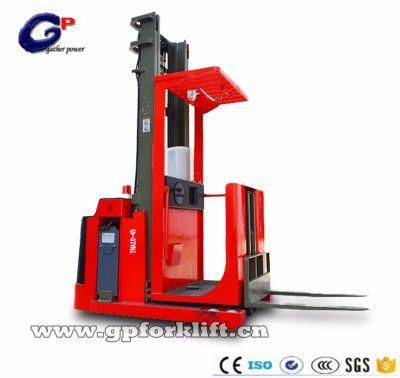

Electric Reach Truck |
Model |
| Item | Specification | Unit | ETV110-30 | ETV115-30 | ETV120-30 |
| 1 | Characte-ristics | Power |
| Battery | Battery | Battery |
| 2 | Operation |
| Seated | Seated | Seated |
| 3 | Load Capacity | Q(kg) | 1000 | 1500 | 2000 |
| 4 | Lift height (biggest) | h3(mm) | 3000 | 3000 | 3000 |
| 5 | Load Center | c(mm) | 500 | 500 | 500 |
| 6 | Axle centre to fork face | x(mm) | 390 | 390 | 380 |
| 7 | Wheelbase | Y(mm) | 1480 | 1480 | 1500 |
| 8 | Weight | Service Weight | kg | 2200 | 2400 | 3300 |
| 9 | Wheel | Tyre |
| PU Wheel | PU Wheel | PU Wheel |
| 10 | Tyre size, front | mm | ø280*100 | ø280*100 | ø406*152 |
| 11 | Tyre size, rear | mm | ø250*80 | ø250*80 | ø340*104 |
| 12 | Wheel, front/rear |
| 3.2 | 3.2 | 2.1 |
| 13 | Track width, front | b10(mm) | 740 | 740 | 835 |
| 14 | Track width, rear | b11(mm) | 996 | 996 | 1012 |
| 15 |
Dimensions | Mast/fork carriage tilt,forwar/backward | α,β(Grad) | 2.5 | 2.5 | 2.2 |
| 16 | Height of mast lowered | h1(mm) | 2086 | 2086 | 2086 |
| 17 | Free lift | h2(mm) | ~ | ~ | ~ |
| 18 | Height of mast, extend | h4(mm) | 3800 | 3800 | 3800 |
| 19 | Height of overhead guard (cabin) | h6(mm) | 2114 | 2114 | 2200 |
| 20 | Height of seat | h7(mm) | 920 | 920 | 1068 |
| 21 | Height of reach legs | h8(mm) | 270 | 270 | 270 |
| 22 | Length to fork face | l1(mm) | 2390 | 2390 | 2040 |
| 23 | Overall length | l2(mm) | 1850 | 1850 | 2440 |
| 24 | Overall width | b1(mm) | 1100 | 1100 | 1260 |
| 25 | A,B Fork carriage to DIN 15173, class/form A,B |
| A | A | A |
| 26 | Fork carriage width | b3(mm) | 928 | 928 | 928 |
| 27 | Fork spread | b5(mm) | 640 | 640 | 640 |
| 28 | Width between reach legs | b4(mm) | 800 | 800 | 900 |
| 29 | Reach travel | l4(mm) | 600 | 600 | 600 |
| 30 | Ground clearance, mast | m1(mm) | 90 | 90 | 90 |
| 31 | Ground clearance, center of wheelbase | m2(mm) | 80 | 80 | 80 |
| 32 | 1000x1200 | Ast(mm) | 2800 | 2800 | 2800 |
| Aisle width pallet 1000*1200 across forks |
| 32 | 800x1200 | Ast(mm) | 2700 | 2700 | 2700 |
| Aisle width pallet 1000*1200 across forks |
| 34 | Turning radius | Wa(mm) | 1740 | 1740 | 1820 |
| 35 | Performance | Travel speed, with/without load | Km/h | 7/7.2 | 7/7.2 | 8/8.3 |
| 36 | Lifting speed, with/without load | m/s | 0.19/0.2 | 0.19/0.2 | 0.19/0.2 |
| 37 | Lowering speed, with/without load | m/s | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 |
| 38 | Reach speed, with/without load | m/s | 0.1/0.1 | 0.1/0.1 | 0.1/0.1 |
| 39 | Climbing ability, with/without load | % | 10/12 | 10/12 | 10/12 |
| 40 | Acceleration time, with/without load | s | 3/4 | 3/5 | 4.8/4.3 |
| 41 | Service brake |
| mechanical | mechanical | hydraulic |
| 42 | Motor | Drive motor | kW | 2.2 | 2.2 | 4 |
| 43 | Lift motor | kW | 5 | 8.2 | 8.2 |
| 44 | Battery voltage/rated capacity | V/Ah | 48V/400AH | 48V/400AH | 48V/500AH |
| 45 | Battery Weight | Kg | 550 | 550 | 860 |
| 46 | Working pressure | bar | 100 | 140 | 140 |
| 47 | DIN12053/Nosie level at operator's ear | dB(A) | 70 | 70 | 70 |
| 48 | Speed control system |
| ZAPI / Curtis / SME |
RFQ Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-35 days if the goods are not in stock, it is according to quantity.
Q: What's you warranty period?
A: 1 year or 12 months from B/L date.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. We also accept other reasonable terms of payment.
