• Model NO.：FD50
• Lift height：3000mm
• Condition：New
• Fork Size：1070*150*55mm
• Weight：6980kg
• Engine：Chinese Engine,Isuzu
• Wheelbase：2100mm
• Color：Could Be Designed by Buyer
• Free Lift：205mm
• Warranty：1 Year , 2000 Working Hours
• Tire Type：Pneumatic
• Name：Ltmg Counterbalance Forklift Truck 5 Ton Hydraulic
• Height to Head Guard：2265mm
• Transport Package：Container
• Specification：3245*1430*2270mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer  LTMGModel  FD50Load capacity  kg5000Load center  mm500Power unit  Diesel   Operator type  Driver/seat Tire type  Pnenumatic  Wheel  Front/rear 2/2Max. lifting height   mm3000Free lift  mm140Fork size L*W*T  mm      1070*150*55Tilt range   Mast forward/backward deg6/12Overall length(without fork)  mm                3245Total width  mm1430Mast height (fork lowering)  mm               2270Overall height fork raised  With backrest mm              4110Height to head guard mm               2265Turning raduis(outside) mm                2910Front face of fork to front axle mm                 615Min. right angle stacking aisle mm               2960Speed  Max Travelling full/no load km/h18/19Lifting full/no load mm/s380/430Lowering full/no load mm/s380/340Max.drawbar pullfull/no load kg4500/2000Gradeability at 1.6km/h  full/no load %25Truck weight kg8150Weight  distributionFull  load front/rear kg10280/1790No  load front/rear kg3330/4500Tires Number front/rear2/2Tires Modelfront axle  300-15-18PRrear axle 7.00-12-12PRWheelbase mm2000Tread  Front/rear mm1180/1190Ground clearence    At lowest point(mast) mm100Frame mm240Service  brakePower brakeParking brake Mechanical-hand lever  Battery    Voltage/capacity V/AH2-12/80Engine ModelISUZU 6bg1Rated power kw/rpm82.3/2000Rated torque N.m/rpm416/1400-1600Number of cylinders6Placement L6.494Fuel tank capacity L140Hydraulic system pressure kg/cm²200
Product Features

Load capacity: 5000kg

Engine: ISUZU 6BG1/CUMMINS-/Deutz/Chaochai

Mast option: 2 stage mast lifting height from 3000mm to 6000mm; 3 stage full free mast lifting height from 3000mm to 6000mm

Tyre option: Pneumatic tyres, Sollid tyres, Double front tyres, Non-marking solid tyres

 Advantages:

1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space. Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.

After sales service

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

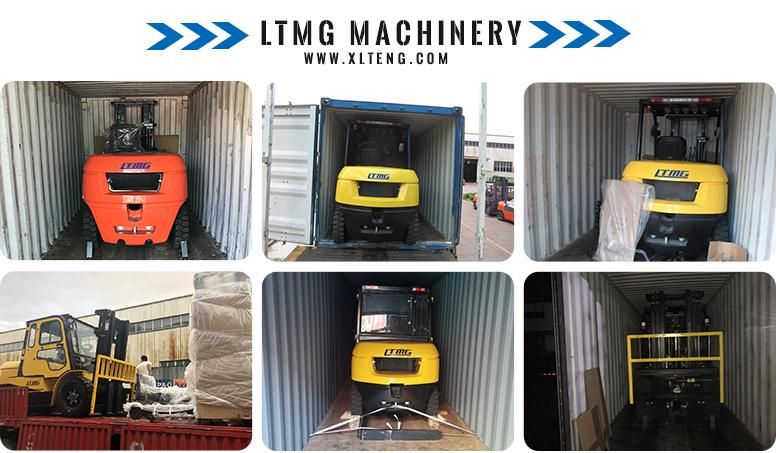

Packaging & Shipping



Customer & Exhibition




Company


Customer comments
