Hot Sale China 2.5ton Deisel Forklift with Japan Engine
Jinan Shine International Trade Co., Ltd.- After-sales Service：Online Support
- Warranty：12 Months
- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：FD25
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Free Lifting Height：135mm
- Fork Size：1070*122*40mm
- Mast Tilt Angle：6,12 Degree
- Min. Ground Clearance：110mm
- Overhead Guard Height：2090mm
- Front Overhang：473mm
- Height From Seat to Overhead Guard：1005mm
- Product Name：Hot Sale China Forklift Truck 2.5ton Japan Engine
- Transport Package：Nude Package
- Trademark：SNSC
- Origin：China
- HS Code：84270290
- Production Capacity：1000 Sets Per Month
Description
SpecificationsUnit FD25 Features Power type Diesel Rated load kg 2500 Load center mm 500 Lifting height mm 3000 Free lifting height mm 135 Fork size L*W*T mm 1070*122*40 Mast tilt angle Front/Rear Performance Max. travelling speed loaded km/h 19 Max. lifting speed loaded/empty mm/s 490/510 Max. traction force loaded KN 17 Max. climbing ability % 20 Dimension Overall length without fork mm 2570 Overall width mm 1160 Mast lowered height mm 1990 Mast extended height mm 4000 Chassis Tyre Front 7.00-12-12PR Rear 6.00-9-10PR Wheel base mm 1600 Wheel thread Front/Rear mm 970/970 Weight(without load) kg 3800 Powertrain Battery V/AH 12/90 Engine Model XC490BPG Rated power km/r.p.m 37/2650 Rated torque Nm/r.p.m 148/2000 No. cylinder 4 Bore x stroke mm 90X100 Displacement L 2.54 Fuel tank capacity L 60 Transmission/shift 1/1 automatic transmission Operation pressure Mpa 17.5

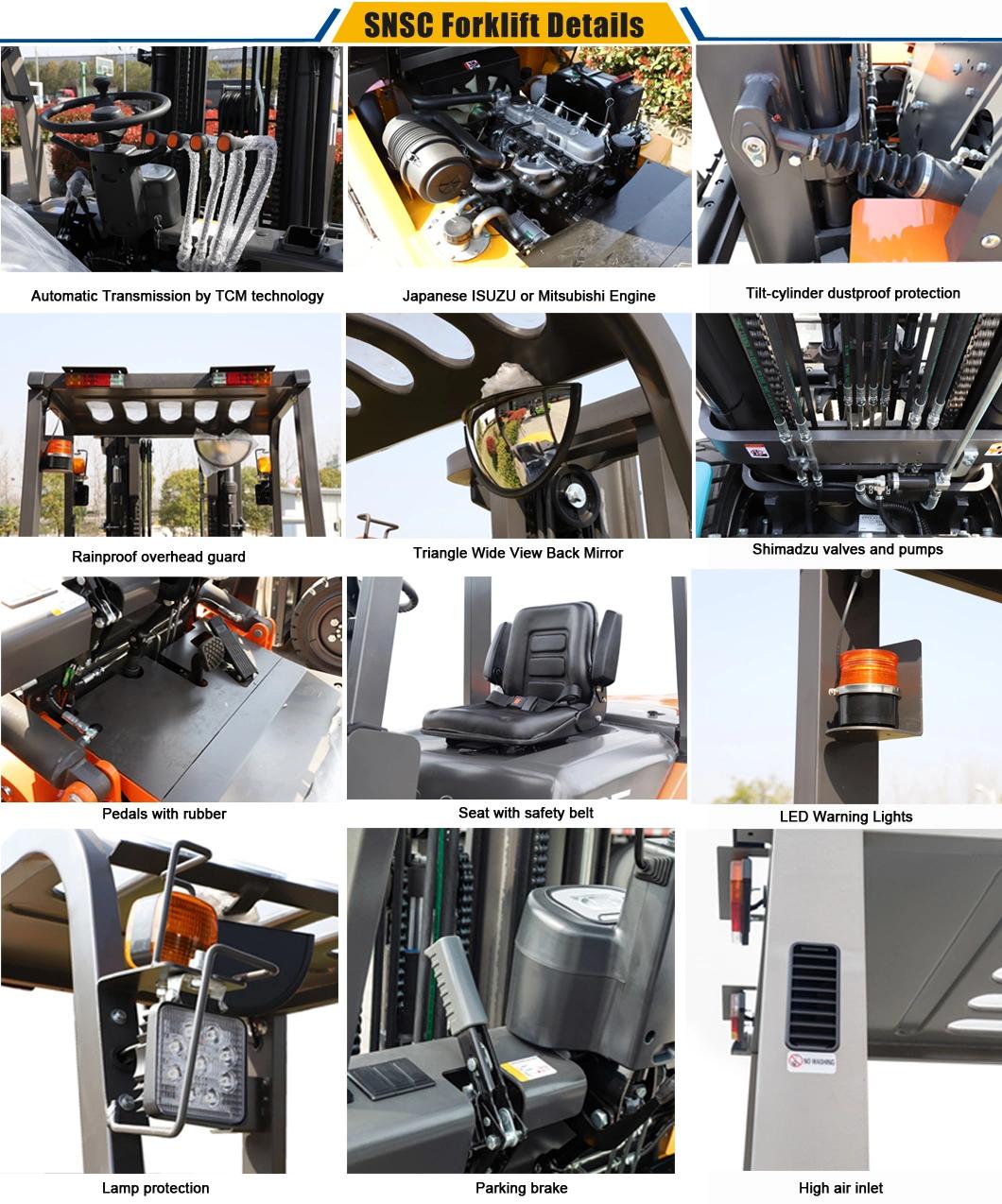

Detailed images of Hot Sale China 2.5ton Deisel Forklift With Japan Engine:
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
Successful cases:
We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means SNSC forklift can be customized.
Your satisfaction is our ultimate goal, SNSC beyond your needs.
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact Winni with your demands.
Detailed images of Hot Sale China 2.5ton Deisel Forklift With Japan Engine:
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
Successful cases:
We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means SNSC forklift can be customized.
Your satisfaction is our ultimate goal, SNSC beyond your needs.
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact Winni with your demands.
