Chinese Heavy Duty 7 Ton Forklift for Sale
Jinan Shine International Trade Co., Ltd.- After-sales Service：Online Support
- Warranty：12 Months
- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：5T - 10T
Base Info
- Model NO.：FD70
- Fuel：Diesel
- Load center：600
- Lift height：3000~5000mm
- Condition：New
- Free Lifting Height：218mm
- Fork Size：1220*150*70mm
- Mast Tilt Angle：6,12 Degree
- Min. Ground Clearance：200mm
- Overhead Guard Height：2460mm
- Front Overhang：625mm
- Height From Seat to Overhead Guard：1050mm
- Max. Traveling Speed：26km,H
- Product Name：Chinese Heavy Duty 7 Ton Forklift for Sale
- Transport Package：Nude Package
- Trademark：SNSC
- Origin：China
- HS Code：84270290
- Production Capacity：1000 Sets Per Month
Description
SpecificationsUnit FD70 Features Power type Diesel Rated load kg 7000 Load center mm 600 Lifting height mm 3000 Free lifting height mm 218 Fork size L*W*T mm 1220*150*70 Mast tilt angle Front/Rear Performance Max. travelling speed loaded km/h 26 Max. lifting speed loaded/empty mm/s 370/450 Max. traction force loaded KN 51.4 Max. climbing ability % 20 Dimension Overall length without fork mm 3466 Overall width mm 2235 Mast lowered height mm 2500 Mast extended height mm 4417 Chassis Tyre Front 8.25-15-14PR Rear 8.25-15-14PR Wheel base mm 2250 Wheel thread Front/Rear mm 1470/1700 Weight(without load) kg 9340 Powertrain Battery V/AH (12/90)×2 Engine Model XC6110 Rated power km/r.p.m 81/2500 Rated torque Nm/r.p.m 353/1700 No. cylinder 6 Bore x stroke mm 102×118 Displacement L 5.785 Fuel tank capacity L 140 Transmission/shift 1/1 automatic transmission Operation pressure Mpa 20

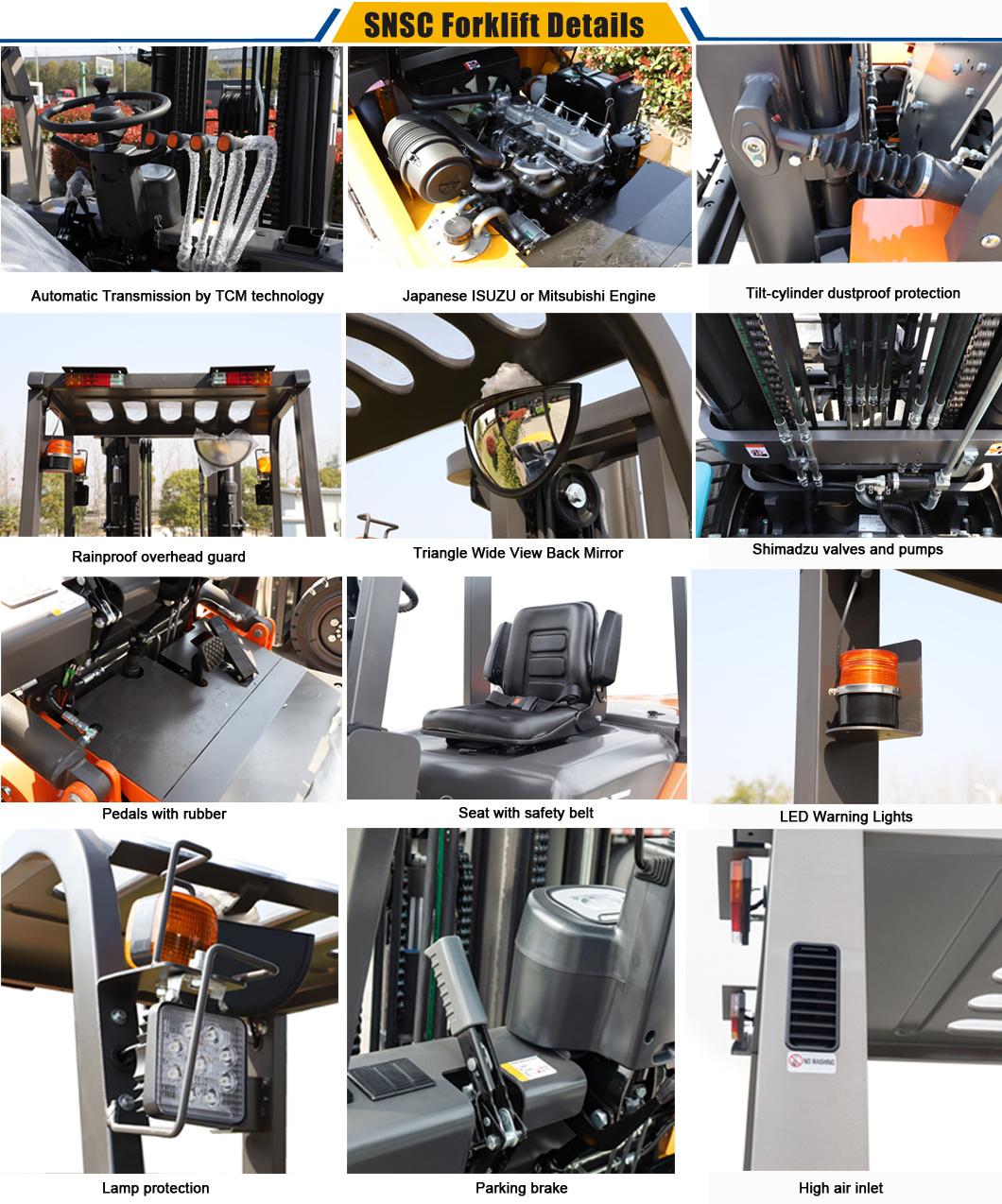

Detailed images of Chinese Heavy Duty 7 Ton Forklift For Sale:

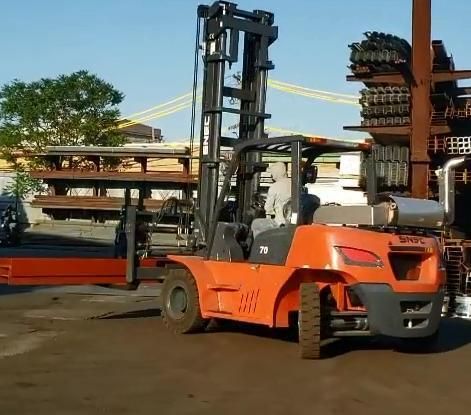

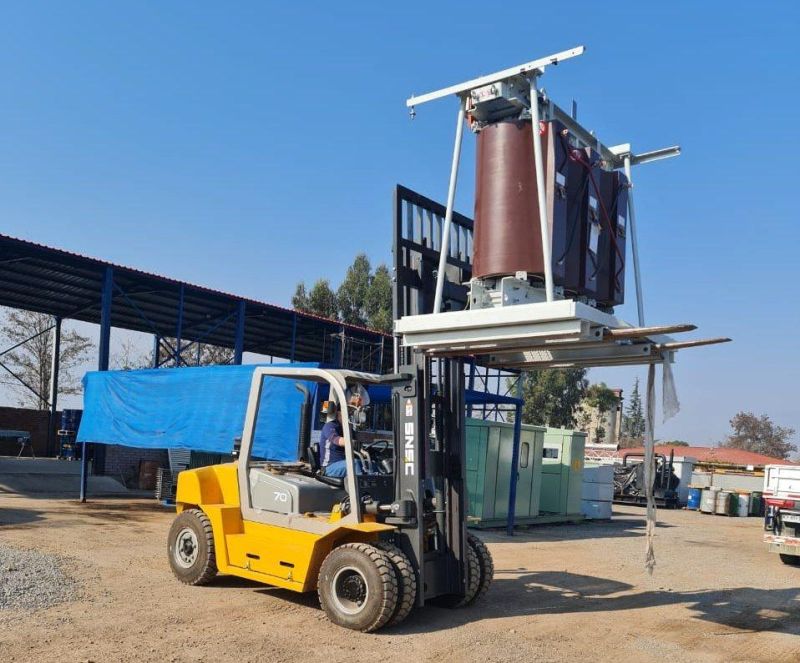

Successful cases:
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

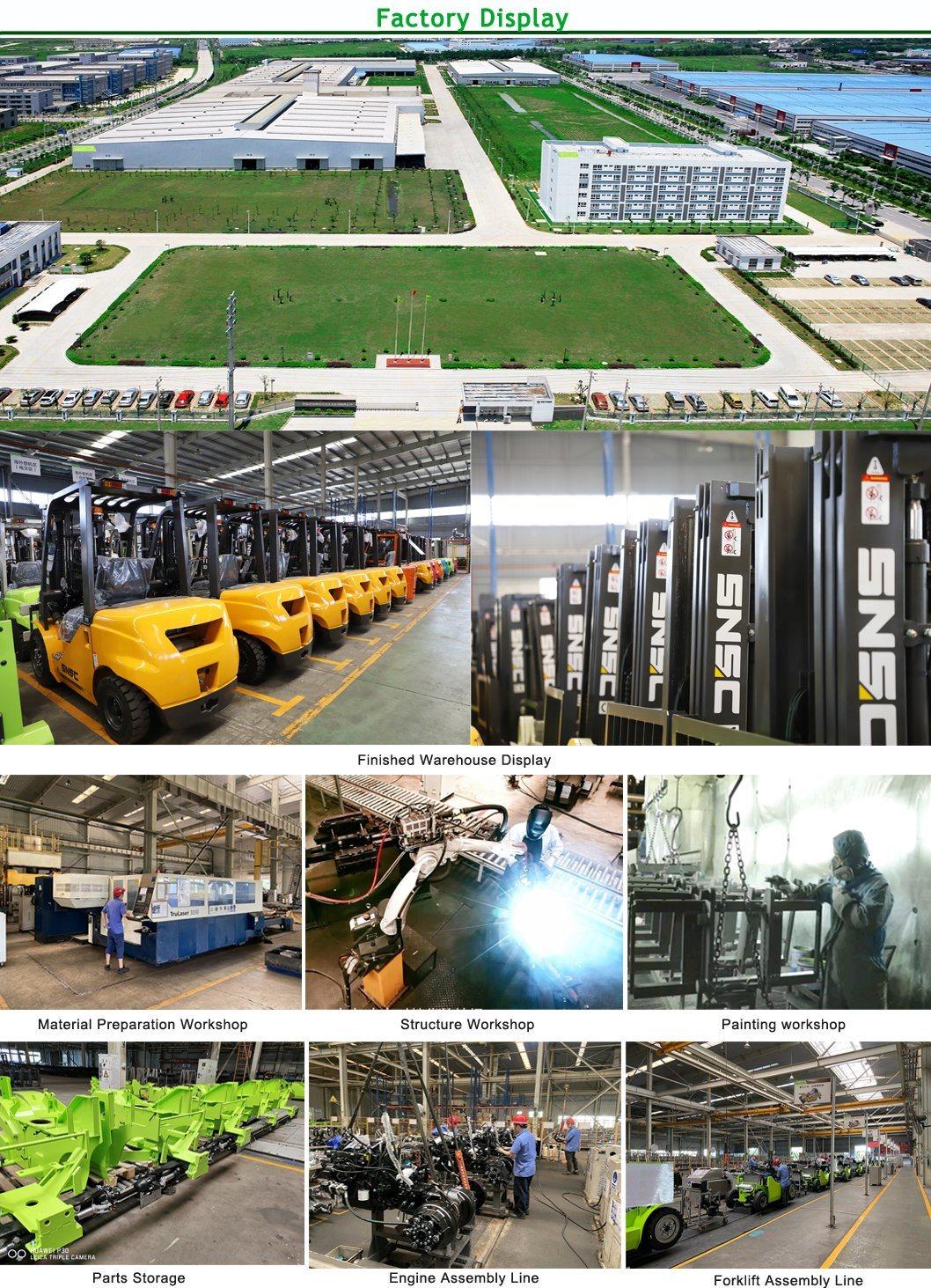

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
Detailed images of Chinese Heavy Duty 7 Ton Forklift For Sale:
Successful cases:Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
