• Model NO.：ESQ115-40
• Weight：520kg
• Color：Customer Required
• Tyre：PU
• Lifting Height：4000mm
• Transport Package：Standard Export Package
• Specification：1462*720mm
• Trademark：GP
• Origin：Jiangsu, China
• HS Code：84271090
• Production Capacity：4000units,Momth

Basic Info.

Model NO. ESQ115-40 Weight 520kg Color Customer Required Tyre PU Lifting Height 4000mm Transport Package Standard Export Package Specification 1462*720mm Trademark GP Origin Jiangsu, China HS Code 84271090 Production Capacity 4000units/Momth

Product Description

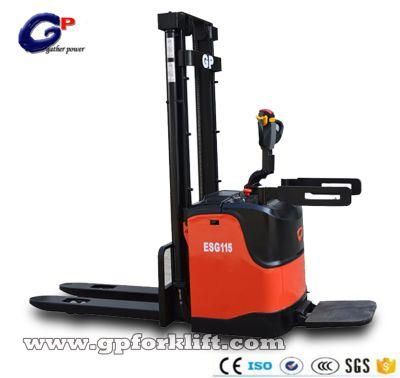

Main characteristics of 1.0-1.5t Semi-electric stacker
1) Integrated hydraulic pump station, low noise
2) Built-in battery charger is standard
3) Maintenance free storage battery
4) Easy operating brake
5) Electronic power steering system

Technical Specifications

operating type		walkie
power source		battery
load capacity	Kg	1500
load center	mm	500
wheel type(caster/bearing wheel)		PA/PU
service weight	Kg	580
Wheel dimension(caster/bearing wheel)	mm	φ250x50 /φ80x70
wheel base	mm	1200
Wheel quantity (caster/bearing wheel)	pcs	2/2
Operate handle   (highest/lowest)	mm	1209/793
Overall length	mm	1742
overall width	mm	740
Fork dimension (thickness/length/width)	mm	65/165/1150
Outside width between forks	mm	600
min.ground clearance	mm	25
min.turning radius	mm	1600
Min.aisle width for pallets	mm	2100
Gradeability (laden/unladen)	%	5/7
Lift speed(laden/unladen)	mm/s	80/110
Lowering speed(laden/unladen)	mm/s	115/100
brake		Electromagnetic
lift motor (DC)	Kw	1.5
battery voltage	V	12
battery capacity	Ah	100
