• Model NO.：FD40
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070*150*50mm
• Weight：6480kg
• Engine：Isuzu,Mitsubishi
• Wheelbase：2100mm
• Color：Decided by Buyer
• Service Brake：Hydraulic
• Overall Length(Without Fork)：3260mm
• Tire Type：Pneumatic
• Brand：Ltmg
• Transport Package：Container
• Specification：3260mm*1460mm*2340mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：2000sets,Month

The specification of 4 ton Diesel ForkliftManufacturer     LTMGModel Power shift T/M  FD40Load capacity    kg4000Load center  mm500Power unit   Diesel  Operator type   Driver/seatTire type  Pneumatic Wheel Front/rear 2/2Max. lifting height mm3000Free lift  mm150Fork size                 L*W*Tmm1070*150*50Tilt range                       Mast forward/backwarddeg6/12Overall length(without fork)     mm3260Total width  mm1460Mast height (fork lowering)   mm2270Overall height fork raised     With backrest mm4165Height to head guard             mm2340Turning radius(outside)          mm2530Front face of fork to front axle mm485Min. right angle stacking aisle
without load length&clearance  mm2940Speed Max Travelling    ful loadkm/h25Lifting      full loadmm/s400Lowering    full/no loadmm/s450/420Max.drawbar pull         Power shift T/M      full/no loadkg2200/1000Manual shift T/M    full/no loadkg2200/1000Gradeability at 1.6km/h       Power shift T/M      full/no load%18/20Manual shift T/M    full/no load%18/20Truck weight kg6480Weight  distribution   Full load              front/rear    kg7890/1140No  load               front/rear     kg1810/3240Tires  Numberfront/rear2/2Modelfront axle 250-15-16PRrear axle6.50-10-10PRWheelbase  mm2100Tread           Front/rearmm1120/970Ground clearance At lowest point(mast)                mm120Framemm135Brake      Service  brake Hydraulic-foot pedalParking brake Mechanical-hand lever   BatteryVoltage/capacityV/AH12/80Engine   Model ISUZU 4JG2Rated powerkw/rpm44.8/2450Rated torqueN.m/rpm186/1800Number of cylinders 4PlacementL3.059Fuel tank capacityL70Transmission Speed forward/backward Power shift T/M       Manual shift T/M1-1 power shift T/M
2-2 manual shift T/MOperating pressureHydraulic system pressure  kg/cm²180

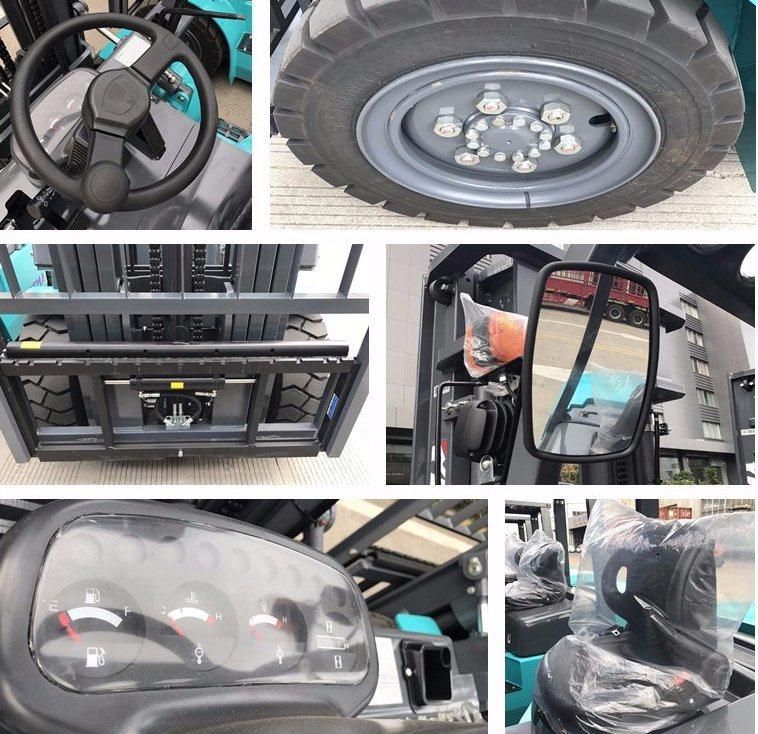

Product Features

1.Original Isuzu or Mitsubishi engines,high quality compliant with worldwide stage IIIA emission standard.The powerful engine ensures LTMG forklift truck high handing performance.

2.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.

3.Thicker reinforcing plate ensures the safety and efficiency.

4.New designed overhead guard protective device prevent the sudden accidents.

5.Bigger and non-slip step make the operating convenient and safe.

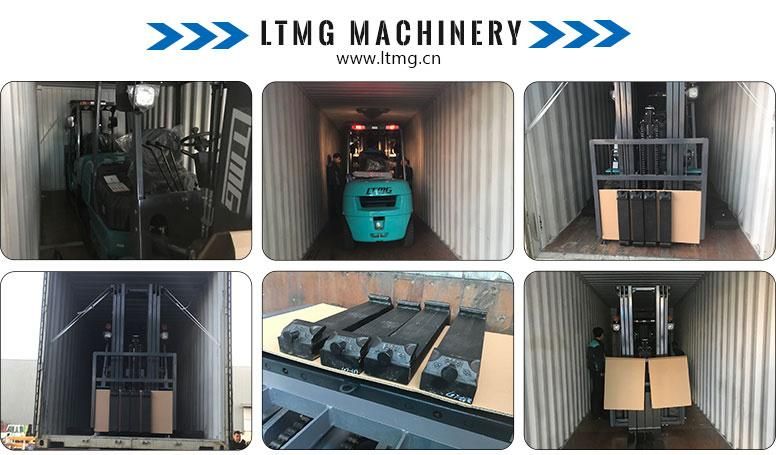

Shipping & Delivering




Our Factory


LTMG Customers




After-sale Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
