Ltmg Electric Diesel LPG Forklift 3 Ton Diesel Forklift with Japanese Engine

Xiamen LTMG Machinery Co., Ltd.
  • Warranty：1 Year,2000 Working Hours
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel

Base Info

  • Model NO.：FD30
  • Load center：500mm
  • Lift height：3000mm
  • Condition：New
  • Engine：Isuzu C240
  • Fork Size：1070mm*125mm*45mm
  • Weight：4300kg
  • Wheelbase：1700mm
  • Load Centrer：500mm
  • Ground Clearence：120mm
  • Color：Decided by Buyer
  • Fuel Tank：70L
  • Optional：Side Shift Solid Tires, Mast Height, etc
  • Transport Package：Container
  • Specification：2660mm*1225mm*2115mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84272090
  • Production Capacity：1000set,Years

Description

SpeedMax Travelling full/no loadKm/h18/19.5Lifting full/no loadmm/s450/500Lowering full/no loadmm/s450/450Max. Drawbar pullFull/no loadKg1550/1000Gradeability at 1.6km/hFull load%25Truck weight  Kg4290Weight distributionFull load front/rearKg6420/870No load front/rearKg1680/2610TiresNumberFront/rear2/2ModelFront axle28X9-15-12PRRear axle6.50-10-10PRWheelbase  mm1700TreadFront/rearmm1000/970Ground clearenceAt lowest point(mast)mm120Framemm135BrakeService brake  Hydraulic-foot pedaParking brake  Mechanical-hand leverBatteryVoltage/capacityV/AH12/80EngineModel  ISUZU C240Rated powerKw/rpm52/2500Rated torqueN-m/rpm15.7/1800Number of cylinders  4Fuel tank capacity  L70TransmissionShift stage(front/rear-type)  1-1 power shift T/MOperating pressureHydraulic system pressureKg/cm²180  Product Features

Standard Configuration of 3 ton forklift

1. Chinese Engine
2. Hydraulic / Automatic Transmission
3. Duplex Mast Lifting Height 3000mm
4. Pneumatic Tires
5.1070mm Fork Length

Optional Equipments

1. Janpan engine ISUZU or Mitsubishi
2. Lifting Height 3m-7m
3. Full-free Duplex or Triplex Mast
4. Side Shift, Solid Tires, Suspension Seat, fork positiner.
5. Driver's Cabin, Customized Color, air-conditioner, etc.
6. Attachments: Paper roll clamp, bale clamp, rotating clamp ect.

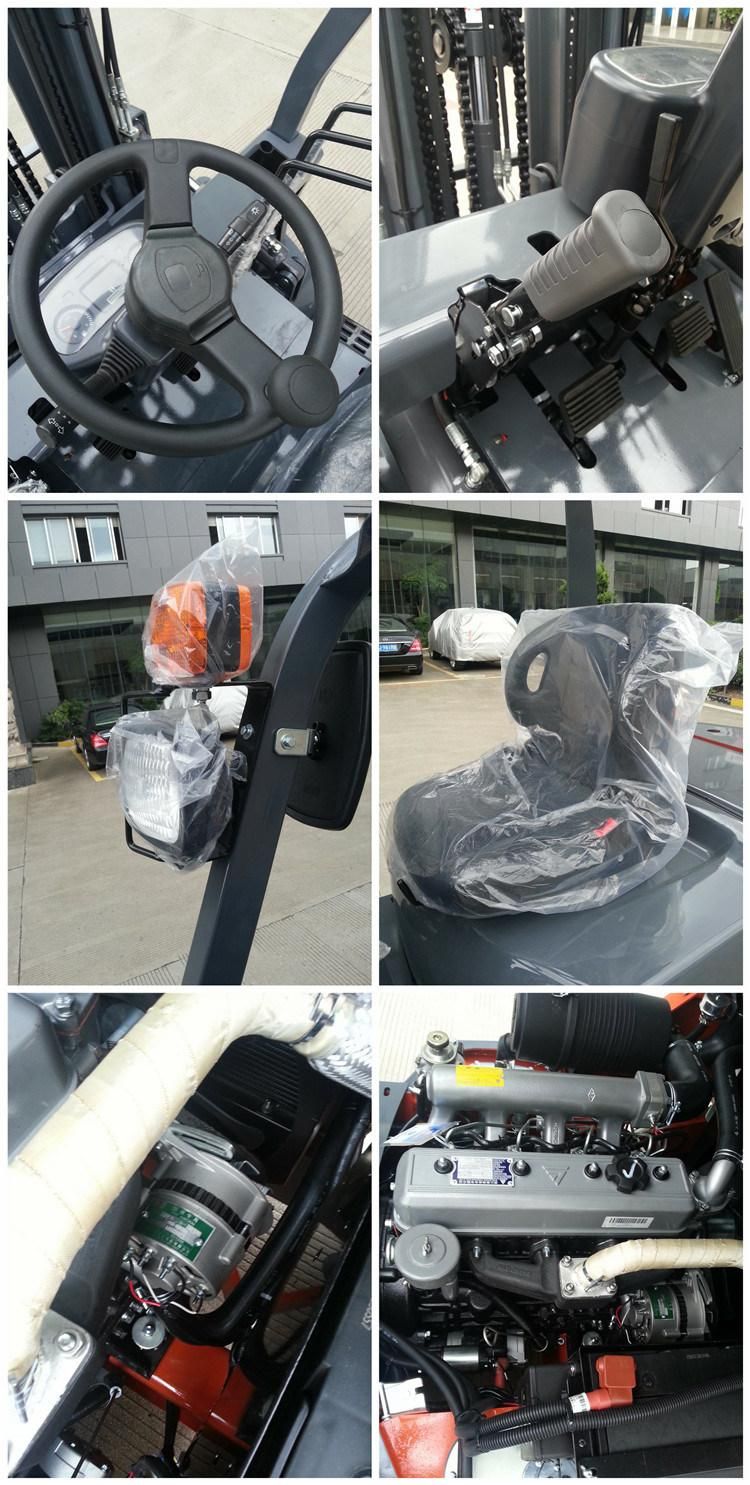

Details photo
Ltmg Electric Diesel LPG Forklift 3 Ton Diesel Forklift with Japanese Engine

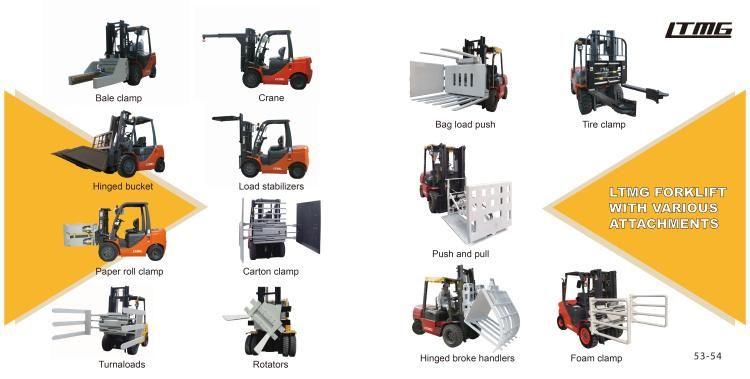

Optional attachment
Ltmg Electric Diesel LPG Forklift 3 Ton Diesel Forklift with Japanese Engine

Packiging&shipping

Ltmg Electric Diesel LPG Forklift 3 Ton Diesel Forklift with Japanese Engine


After sales service
Ltmg Electric Diesel LPG Forklift 3 Ton Diesel Forklift with Japanese Engine



Our company
Ltmg Electric Diesel LPG Forklift 3 Ton Diesel Forklift with Japanese Engine




Our customer

Ltmg Electric Diesel LPG Forklift 3 Ton Diesel Forklift with Japanese Engine
