Ltmg 3 Ton Diesel Forklift Counterbalance Forklift Container Lifting Forklift with Bale Clamp Attachments

Xiamen LTMG Machinery Co., Ltd.
  • After-sales Service：Free Parts Within Warranty
  • Warranty：1 Year,2000 Working Hours
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：FD30
  • Fuel：Diesel
  • Load center：500mm
  • Lift height：3000-6000mm
  • Condition：New
  • Engine：Japanese or Chinese Engine
  • Fork Size：1070mm*125mm*45mm
  • Weight：4300kg
  • Wheelbase：1700mm
  • Load Centrer：500mm
  • Color：Customized
  • Fuel Tank：70L

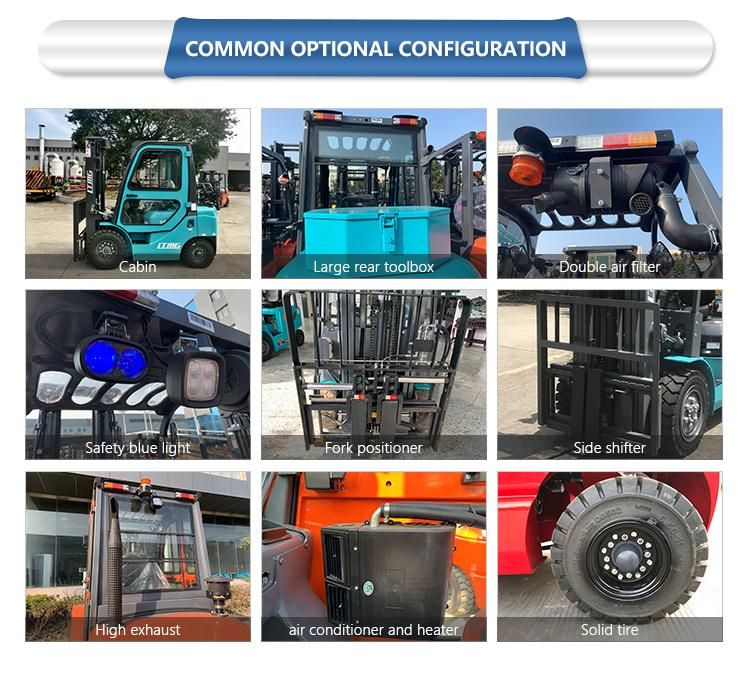

  • Optional：Cab, Fork Positioner, Side Shift, Lift Height, etc
  • Transport Package：Container
  • Specification：2660mm*1225mm*2115mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：1000set,Years

Description

SpeedMax Travelling full/no loadKm/h18/19.5Lifting full/no loadmm/s450/500Lowering full/no loadmm/s450/450Max. Drawbar pullFull/no loadKg1550/1000Gradeability at 1.6km/hFull load%25Truck weight  Kg4290Weight distributionFull load front/rearKg6420/870No load front/rearKg1680/2610TiresNumberFront/rear2/2ModelFront axle28X9-15-12PRRear axle6.50-10-10PRWheelbase  mm1700TreadFront/rearmm1000/970Ground clearenceAt lowest point(mast)mm120Framemm135BrakeService brake  Hydraulic-foot pedaParking brake  Mechanical-hand leverBatteryVoltage/capacityV/AH12/80EngineModel  ISUZU C240Rated powerKw/rpm52/2500Rated torqueN-m/rpm15.7/1800Number of cylinders  4Fuel tank capacity  L70TransmissionShift stage(front/rear-type)  1-1 power shift T/MOperating pressureHydraulic system pressureKg/cm²180 Ltmg 3 Ton Diesel Forklift Counterbalance Forklift Container Lifting Forklift with Bale Clamp AttachmentsLtmg 3 Ton Diesel Forklift Counterbalance Forklift Container Lifting Forklift with Bale Clamp AttachmentsLtmg 3 Ton Diesel Forklift Counterbalance Forklift Container Lifting Forklift with Bale Clamp Attachments Ltmg 3 Ton Diesel Forklift Counterbalance Forklift Container Lifting Forklift with Bale Clamp Attachments
