• Model NO.：FG20
• Lift height：3000mm-6000
• Condition：New
• Fork Size：1070mm*120mm*40mm
• Weight：3590kg
• Engine：Nissan
• Color：Decided by Buyer
• Max.Lifting Height：3000mm-6000mm
• Rated Power：35.6kw,2100rpm
• Wheel Base：1600mm
• Ground Clearance：110mm
• Fuel Tank：60L
• Transport Package：Container
• Specification：2595mm*1150mm*2070mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

Manufacturer                          LTMGModel Hydraulic shift T/M   FG20Load capacity                        kg2000Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type    Front/rear PneumaticWheel Front/rear 2/2Max. lifting height                   mm3000Free lift                       mm160Fork size L*W*Tmm1070*120*40Tilt range                               Mast forward/backward             deg6/12Overall length(without fork)     mm2595Total width   mm1150Mast height (fork lowering)    mm2070Overall height fork raised      With backrest                             mm4070Height to head guard              mm2070Turning radius(outside)           mm2310Front face of fork to front axle mm450Min. right angle stacking aisle  without load length&clearance                    mm2615SpeedMax Travelling         full/no loadkm/h17/19Lifting              full/no load        mm/s550/580Lowering         full/no load          mm/s450/550Max.drawbar pull                  Power shift T/M      full/no load                                      kg1650/830Manual shift T/M       full/no load                                kg1700/830Gradeability at 1.6km/h         Power shift T/M      full/no load                                      %25/20Manual shift T/M       full/no load                                          %25/20Truck weight  kg3590Weight  distributionFull  load              front/rear        kg4660/580No  load               front/rear      kg1470/1770Tires                                      Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread    Front/rearmm970/970Ground clearance                 At lowest point(mast)                 mm110Framemm115Brake                                           Service  brake Hydraulic-foot pedal                                            Parking brake Mechanical-hand lever                                        Battery                                         Voltage/capacityV/AH12/60Engine                                         Model Nissan K25Rated powerPS(kw/rpm)35.6/2100Rated torqueN.m176.5/1600Number of cylinders 4PlacementL2.488Fuel tank capacityL60Transmission    Speed forward/backward          Power shift T/M Manual shift T/M    1-1 power shift T/M
2-2 manual shiftT/M    Operating pressure                   Hydraulic system pressure         kg/cm²180
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

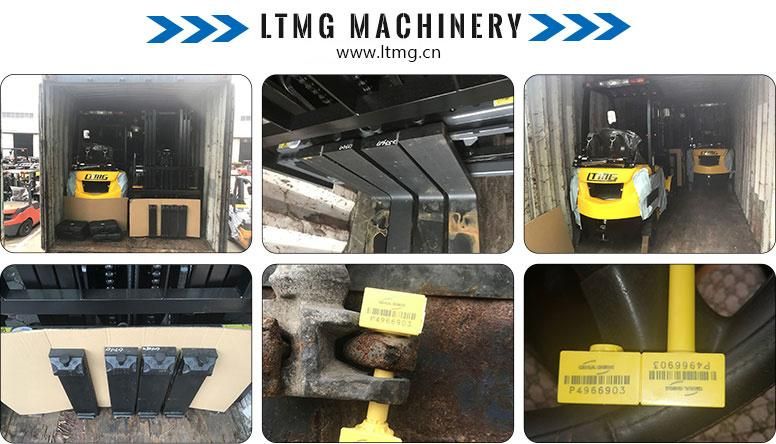

Packing and Shipping



Our Company



After-sales Service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.



FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 30 days.
