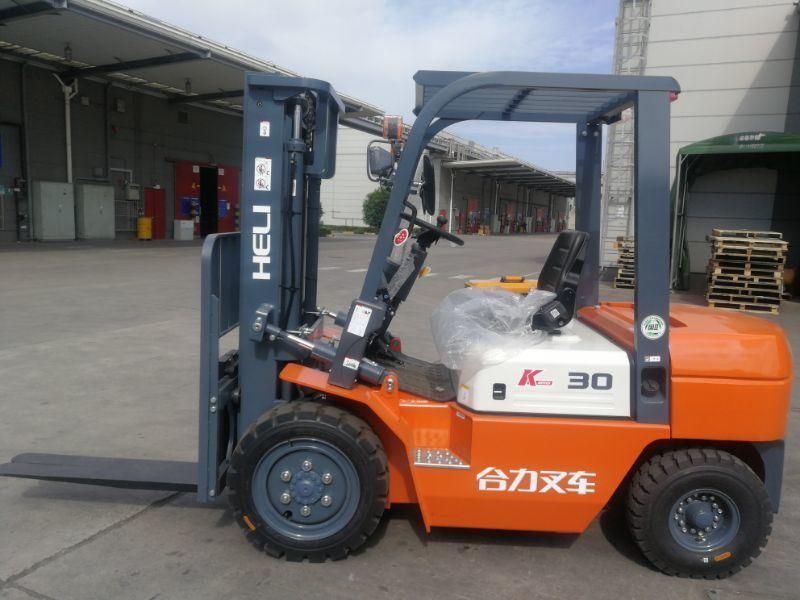

• Model NO.：CPCD30
• Fuel：Diesel
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Fork Length：1070mm
• Fork Width：125mm
• Transport Package：Nude
• Specification：3770*1225*2100MM
• Trademark：Lonking
• Origin：Shanghai, China
• Production Capacity：100 Units Per Month

General1Model CPCD302Power type Diesel3Rated capacitykg30004Load centermm5005Operator type Seated6Tyre typeFront/Rear Pneumatic7Number of wheels(X=driven))Front/Rear 2 X /2Dimensions8Lifting heightmm30009Free lift heightmm14510Fork sizeLxWxTmm1070x125x2511Mast tilt rangeF/R 6/1212Overall Length(Without fork)mm269813Overall widthmm122514Mast lowered heightmm207015Mast extended heightmm425016Overhead guard heightmm209017Turning radius(Outside)mm240018Fork overhang(Wheel center to fork face)mm49819Min.right angle stacking aisle width (Add load length and clearance)mm288520Wheelbasemm170021TreadFrontmm100022Rearmm97023Ground clearanceLowestmm13524Wheel base centermm140MORE INFORMATION:
