Heli Diesel Forklift 2 Ton Small Forklift Cpcd20 Has in Stock
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：CPCD20
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Operating Weight：3340kg
- Wheel Base：1600mm
- Mast Clearance：120mm
- Power Type：Diesel
- Engine：Quanchai
- Rated Power：36.2kw
- Transport Package：Nude
- Specification：2530*1150*2130mm
- Trademark：HELI
- Origin：China
- HS Code：84279000
- Production Capacity：100units,Month
Description
Main Technical SpecificationsGeneral 1 Manufacturer JJCC Forklift 2 Power Type Diesel 3 Model No. CPCD20 4 Rated Capacity Kg 2000 5 Load Center mm 500 Dimensions 6 Lifting Height mm 3000 7 Free Lifting Height mm 150 8 Fork Size mm 1070x120x40 9 Fork Spread (Outside) Max. /Min mm 1100/240 10 Mast Tilt Angle deg 6/12 11 Front Overhang mm 470 12 Overll Diemensions Overall Length mm 2530 13 Overall Width mm 1150 14 Mast Closed Height mm 1995 15 Mast Extended Height mm 4200 16 Overhead Guard Height mm 2130 17 Min.Turning Radius mm 2170 18 Min.Right Angle Aisle Width mm 2680 Performance 19 No/Full Load Travel Speed km/h 20 20 Lift Speed mm/sec 450 21 Max.Gradeability % 20 22 Selft Weight kg 3340 Chassis 23 Tires Front mm 7.00-12-12PR 24 Rear mm 6.00-9-10PR 25 Tread Front mm 960 26 Rear mm 980 27 Wheel Base 1600 28 Min.Mast Ground Clearance 120

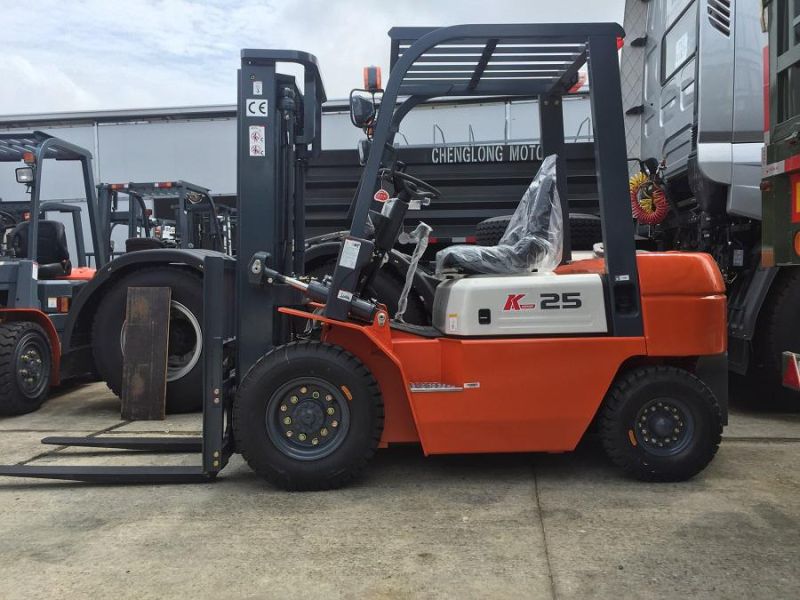

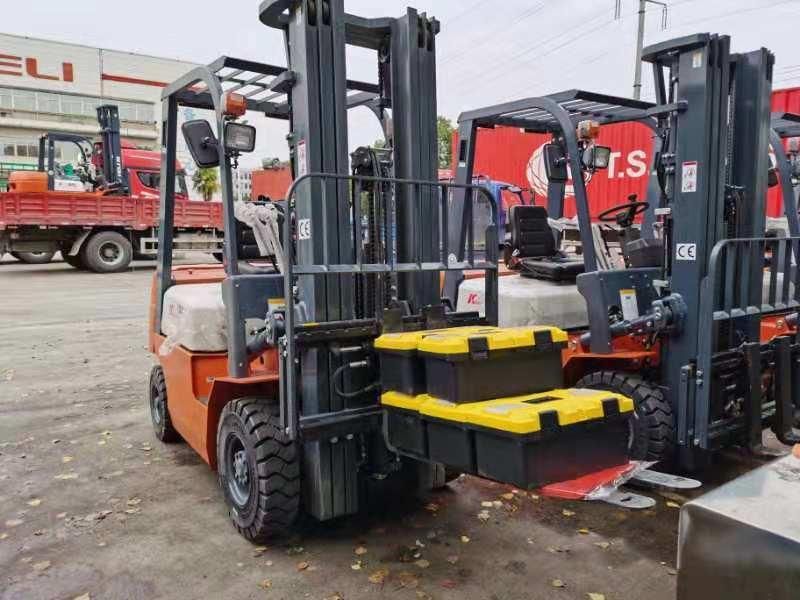

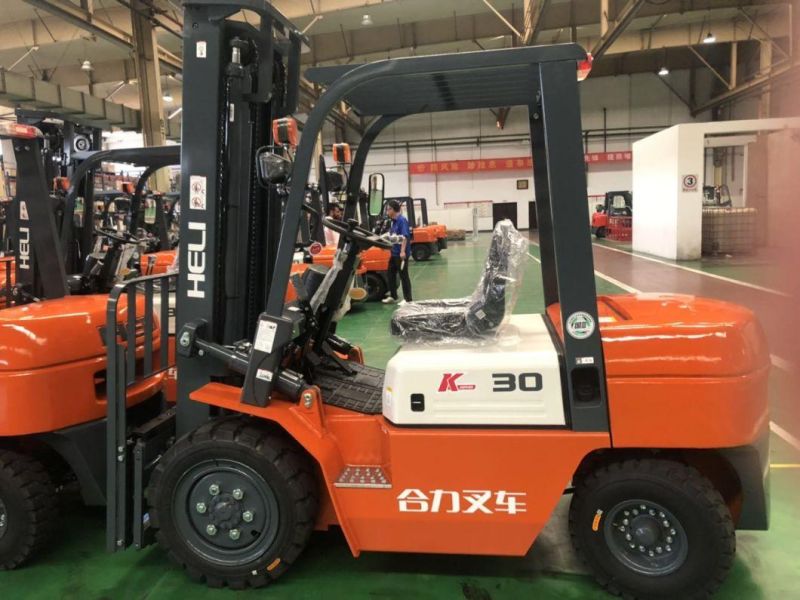

More Pictures
