• Model NO.：FG30
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Weight：3240kg
• Engine：Nissan
• Tilt Range(F/B)：6,12 Deg
• Max.Lifting Height：3000mm
• Rated Power：47kw,2250rpm
• Wheel Base：1600mm
• Color：Decided by Buyer
• Ground Clearance：115mm
• Fuel Tank：70L
• Transport Package：Container
• Specification：2460mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

Manufacturer                          LTMGModel                                   Power shift T/M         FG30TManual shift T/M    FG30CLoad capacity                        kg2000Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type    Front/rear PneumaticWheel Front/rear 2/2Max. lifting height                   mm3000Free lift                       mm160Fork size L*W*Tmm1070*122*40Tilt range                               Mast forward/backward             deg6/12Overall length(without fork)     mm2460Total width   mm1150Mast height (fork lowering)    mm1995Overall height fork raised      With backrest                             mm4030Height to head guard              mm2120Turning radius(outside)           mm2170Front face of fork to front axle mm450Min. right angle stacking aisle  without load length&clearance                    mm2615SpeedMax Travelling         full/no loadkm/h17/19Lifting              full/no load        mm/s550/580Lowering         full/no load          mm/s450/550Max.drawbar pull                  Power shift T/M      full/no load                                      kg1650/830Manual shift T/M       full/no load                                kg1700/830Gradeability at 1.6km/h         Power shift T/M      full/no load                                      %25/20Manual shift T/M       full/no load                                          %25/20Truck weight  kg3240Weight  distributionFull  load              front/rear        kg4660/580No  load               front/rear      kg1470/1770Tires                                      Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread    Front/rearmm970/970Ground clearance                 At lowest point(mast)                 mm110Framemm115Brake                                           Service  brake Hydraulic-foot pedal                                            Parking brake Mechanical-hand lever                                        Battery                                         Voltage/capacityV/AH12/60Engine                                         Model Nissan K21Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m    max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL70Transmission    Speed forward/backward          Power shift T/M Manual shift T/M    1-1 power shift T/M
2-2 manual shiftT/M    Operating pressure                   Hydraulic system pressure         kg/cm²180
Product Features


1.Equipped with powerful and reliable original imported Nissan engine with excellent environmental performance;Using American IMPCO gas system which is more reliable.

2.An all aluminum radiator core provides constant engine coolant temperature control through faster heat dissipation. Combination engine coolant and transmission fluid radiator is designed for maximum air flow passing through the counterweight.

3.Latest technology LPG engines have EPA tier 3 and EU stage IIIA rated engines certified to meet/exceed CARB emissions.

4.high strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency

5.New designed overhead guard protective device prevent the sudden accidents:The lifting system adopts buffering technology to reduce shock and vibration of the mast.

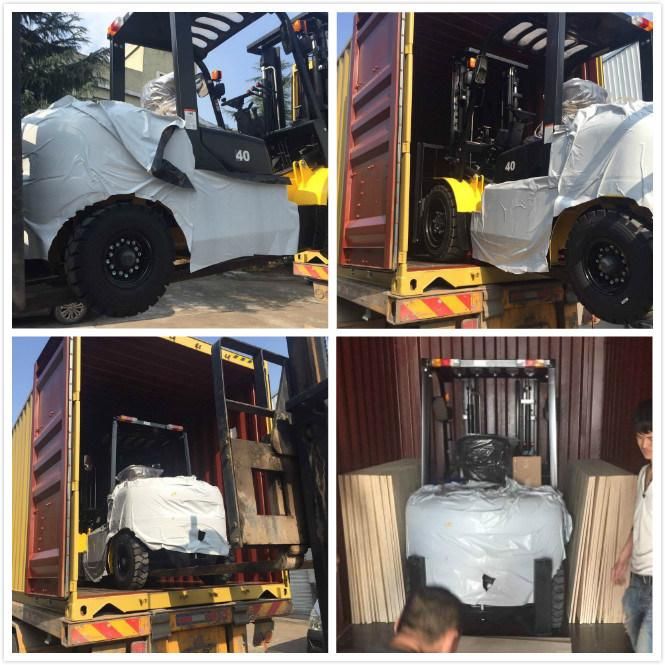

shipping&packaging




After sales service

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
