• Model NO.：FB35
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*50mm
• Weight：5190kg
• Wheelbase：1600mm
• Overall Length(Without Fork)：2550mm
• Battery：72V-560
• Color：Customize
• Optional：Side Shift, Solid Tires,

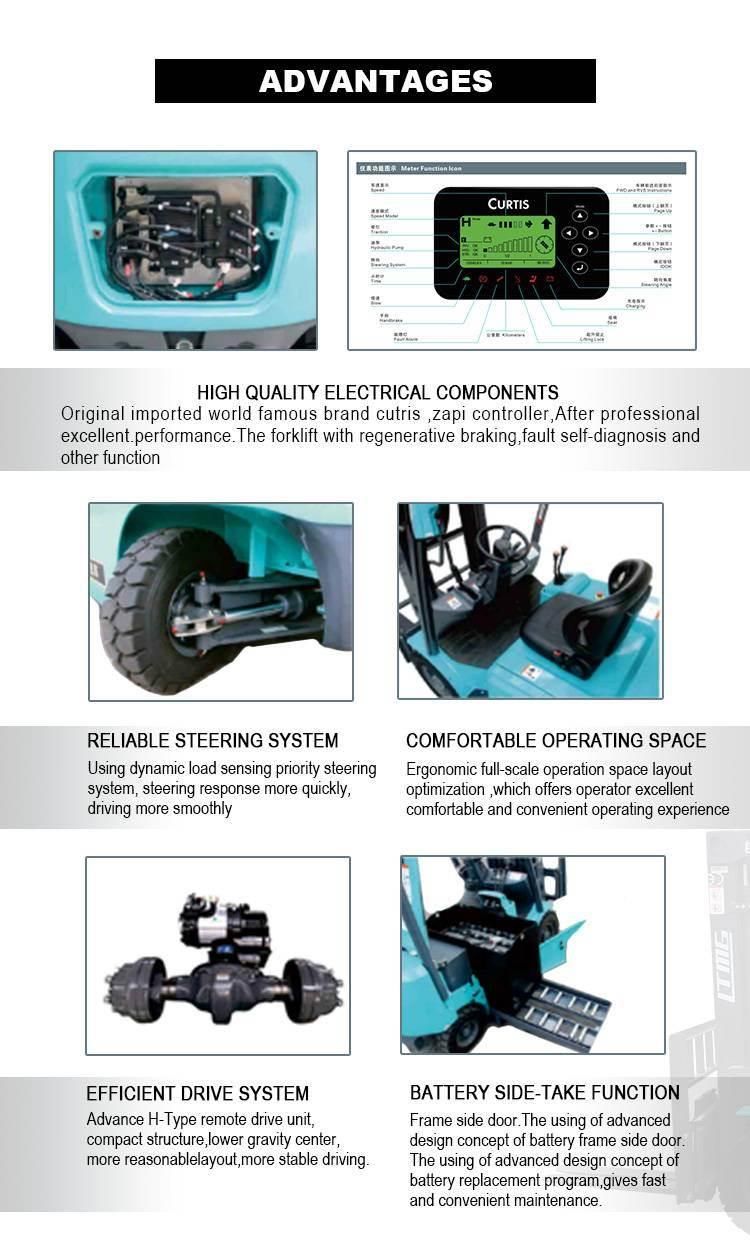

• Controller：Curtis
• Battery Group：Torch
• Transport Package：Container
• Specification：2550mm*1225mm*2190mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer    LTMGModel   FB35Load capacity  kg3500Load center mm500Power unit   BatteryOperator type    Driver/seatTire type Front/rear   Pneumatic/SolidWheel(x=driving)  Front/rear   2X/2Max. lifting height  mm3000Free lift mm165Fork sizeL*W*Tmm1070*125*50Tilt rangeMast forward/backwarddeg6/12Overall length(without fork) mm2550Total width  mm1225Mast height (fork lowering)  mm2075Overall height fork raisedWith backrest mm4250Height to head guard  mm2190Turning radius(outside)  mm2180Load distance mm485Min. right angle stacking aisle  not add load length&clearancemm2665Speed  Max Travellingfull loadkm/h13Max Travellingno load km/h14.5Liftingfull load mm/s220Liftingno loadmm/s450Gradeability full load%12.5Truck weight(with standard battery)   kg5190Weight  distribution                                                         Fulloadfront/rearkg7480/1210Noloadfront/rearkg2000/3190TiresNumber front/rear   2/2Model frontaxle 28*9-15-12PRrear axle     18*7-8Wheelbase mm1600Tread  Front/rearmm1000/950Ground clearance                                                                  At lowest point(mast) mm140Frame mm120Brake Servicebrake Hydraulic-foot pedal Parking brake Mechanical-hand lever BatteryVoltage/capacity  V/AH/5hr72V-560Weight with box (standard) kg 1290Electric motorAC Driving motor       kw16.6DC Hydraulic driving motor kw13 AC Hydraulic driving motor (as option)kw13.4Control type Driving AC  , lifting DC
Driving AC  , lifting AC(as option )Operating pressure                                                               kg/cm²175
