Environmental 3 Ton Electrical Forklift Truck with Battery
XIAMEN LTMG CO., LTD.- Warranty：1 Year or 2000 Working Hours
- Cab Location：Adjustable
- Type：Powered Pallet Truck
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
Base Info
- Model NO.：FB30
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Certification：ISO, CE
- Weight：4660kg
- Wheelbase：1710mm
- Max.Lifting Height：3000mm
- Overall Length(Without Fork)：2510mm
- Fork Size：1070mm*125mm*45mm
- Color：Customize
- Battery Voltage/Capacity：72V-480
- Turning Raduis(Outside)：2315mm
- Transport Package：Container
- Specification：2560mm*1230mm*2250mm
- Trademark：LTMG
- Origin：China
- HS Code：8427109000
- Production Capacity：800sets,Year
Description
Speed Max Travellingfull load km/h 13.5 Max Travellingno load km/h 15 Liftingfull load mm/s 240 Liftingno load mm/s 450 Gradeability full load % 12.5 Truck weight(with standard battery) kg 4660 Weight distribution Fullloadfront/rear kg 6770/890 Noloadfront/rear kg 1885/2775 Tires Number front/rear 2/2 Model front axle 28*9-15-12PR rear axle 18*7-8-14PR Wheel base mm 1600 Tread Front/rear mm 1000/950 Ground clearance At lowest point(mast) mm 140 Frame mm 120 Brake Service brake Hydraulic-foot pedal Parking brake Mechanical-hand lever Battery Voltage/capacity V/AH/5hr 72V-480 Weight with box (standard) kg 1220 Electric motor AC Driving motor kw 16.6 DC Hydraulic driving motor kw 10 AC Hydraulic driving motor (as option) kw 13.4 Control type Driving AC , lifting DC
Driving AC , lifting AC
(as option ) Operating pressure kg/cm² 175

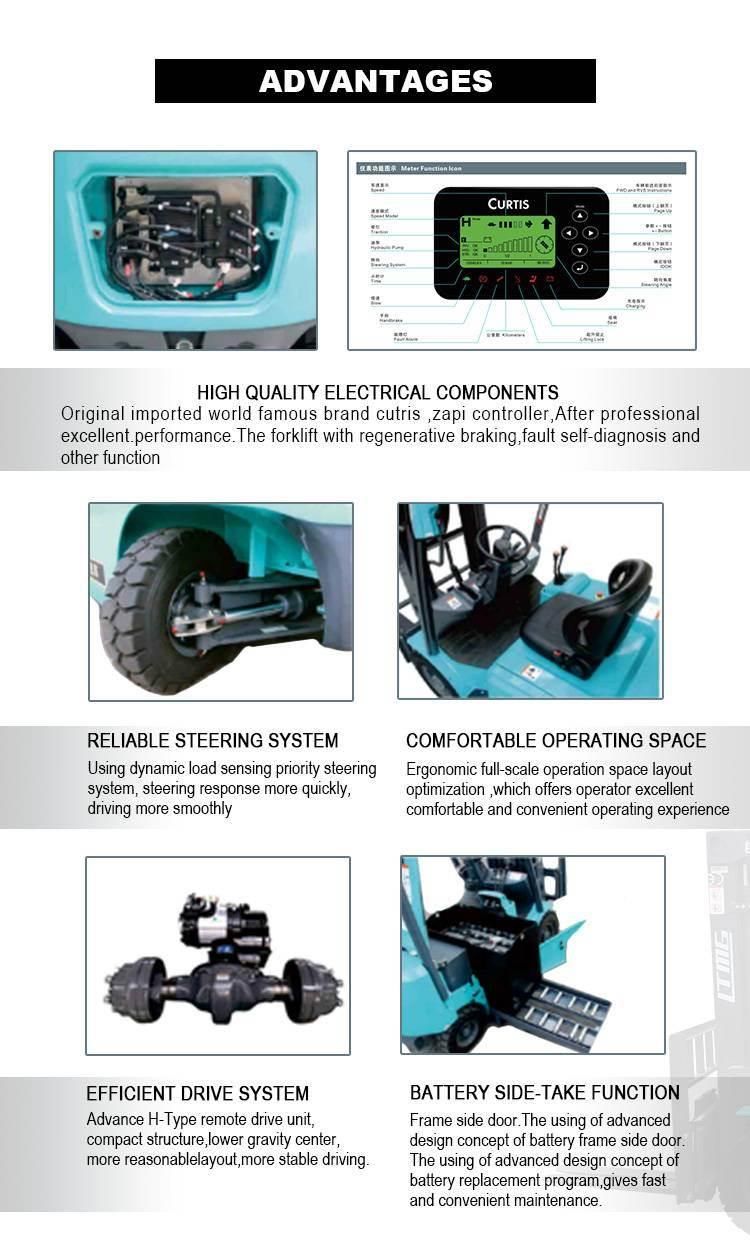

Product Features
1. New designed overhead guard protective device prevent the sudden accidents:The lifting system adopts
buffering technology to reduce shock and vibration of the mast.
2. Economical, environmentally friendly
it won't be emissions, and does not produce noise. In the running process does not produce carbon monoxide,
carbon dioxide, nitrogen oxide or other causes of global warming and air pollution harmful gases
3. Shock-absorbing landing function, can reduce due to a crash when the fork decline;
The fork lift mast vibration generated at the junction is also reduced, thereby eliminating operator attached
to the cargo scattered for fear, shock or damage arising mental tension.
4.The forklift can freely operate even in cramped and narrow channel.
In addition, with EPS power, the forklift can easily turning even in low speed.
After sales service
Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product's quality certificate.

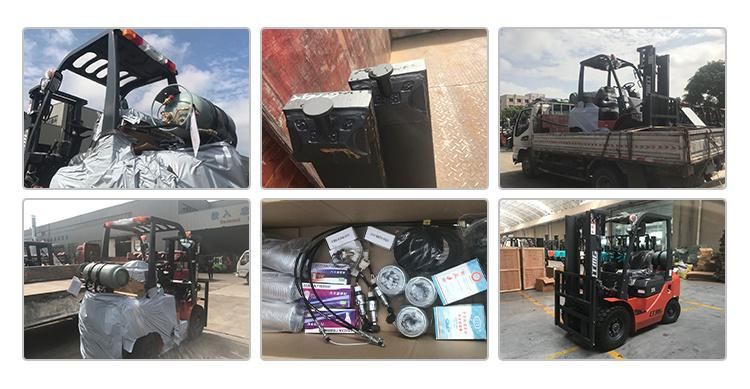

Shipping & package

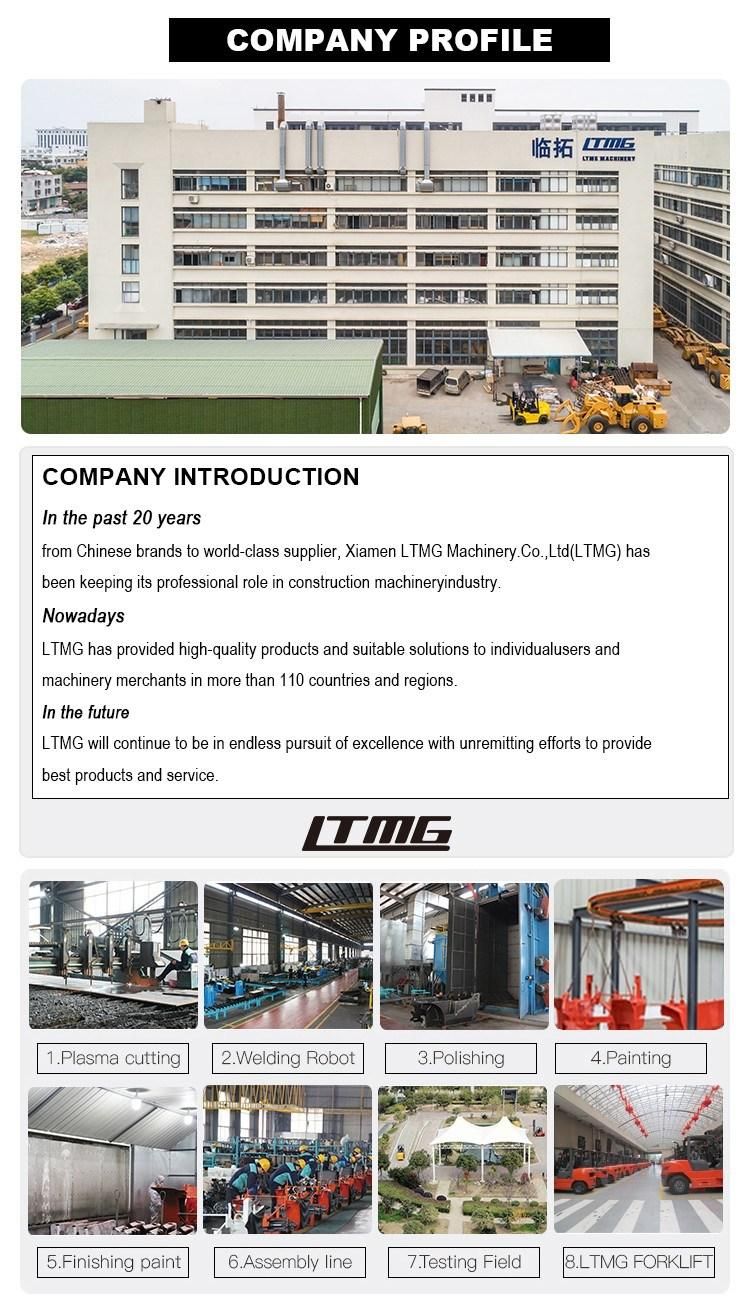

Factory Overview
