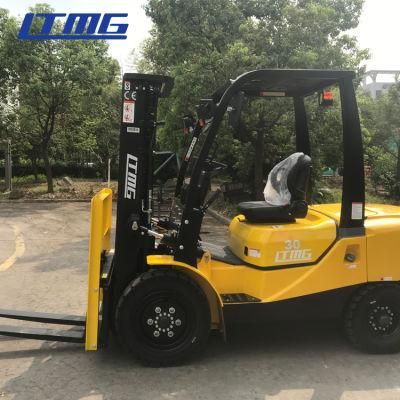

• Model NO.：FD30
• Lift height：3000 mm
• Condition：New
• Fork Size：1070*125*45
• Weight：4380 Kg
• Engine：Isuzu
• Wheelbase：1700 mm
• Color：Could Be Designed by Buyer
• Free Lift：150 mm
• Warranty：1 Year , 2000 Working Hours
• Tire：Pneumatic
• Wheel：2,2
• Tilt Range(F/B)：6,12 Deg
• Transport Package：Container
• Specification：2705*1225*2075mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer  LTMGModel  FD30CLoad capacity  kg3000Load center  mm500Power unit  Diesel   Operator type  Driver/seat  Tire type  Pneumatic Wheel  Front/rear 2/2Max. lifting height   mm3000Free lift  mm150Fork size L*W*T  mm      1070*125*45Tilt range   Mast forward/backward deg6/12Overall length(without fork)  mm                2705Total width  mm1225Mast height (fork lowering)  mm               2075Overall height fork raised  With backrest mm              4250Height to head guard mm               2140Turning raduis(outside) mm                2445Front face of fork to front axle mm                 480Min. right angle stacking aisle mm               2925Speed  Max Travelling full/no load km/h18/19.5Lifting full/no load mm/s450/500Lowering full/no load mm/s450/450Max.drawbar pullfull/no load kg1500/1000Gradeability at 1.6km/h  full/no load %18/20Truck weight kg4380Weight  distributionFull  load front/rear kg6490/890No  load front/rear kg1670/2700Tires Number front/rear2/2Tires Modelfront axle  28x9-15-12PRrear axle 6.50-10-10PRWheelbase mm1700Tread  Front/rear mm1000/970Ground clearence    At lowest point(mast) mm120Frame mm135Service  brakeHydraulic-foot pedalParking brake Mechanical-hand leverBattery    Voltage/capacity V/AH12/80Engine ModelISUZU C240Rated power kw/rpm34.3/2500Rated torque N.m/rpm138/1800Number of cylinders4Placement L2.369Fuel tank capacity L70Hydraulic system pressure kg/cm²180
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

7.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and
the forklift from all sides.

8. Safe inspection .The engine hood has an automatically-locked. This fail-safe stopper prevents the hood
from closing unexpectedly, ensuring safe inspection under the hood.

9.Forward visibility has been improved 10%.The wide mast, with lift chain spacing, makes the view forward
less cluttered, enhance safety and improve productivity.

Customer visit


Shipping & package


Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors




After sales service

Nowadays we have been sell more than 60 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product's quality certificate.
