• Model NO.：YB16-S2
• Lift height：3000~5000mm
• Condition：New
• Operator Type：Stand on, Seated
• Rated Capacity：1600kg
• Fork Dimensions：40*100*920mm
• Transport Package：Container,Roro,Bulk
• Specification：1600kg
• Trademark：ZOOMLION
• Origin：China
• HS Code：8429521200
• Production Capacity：5000,Year

SpecificationsUnitYB16-R1CharacteristicsPower-BatteryOperator type-StandRated capacityQ(kg)1600Centre of loadc(mm)500Front overhangx(mm)405Wheelbasey(mm)1380WeightCurb weight (battery included)kg2522Axle loading (none load) driving/bearingkg1691/831Axle loading (full load&mast extended) driving/bearingkg572/3550Axle loading (full load&mast retracted) driving/bearingkg1580/2542WheelsTire driving/bearing-PU/PUDriving tire size mmφ343*140Bearing tire size mmφ254*100Auxiliary tire sizemmφ178*76Wheel No. driving/bearing (x=driven)-1x/2+2Track width,drive wheelb10(mm)575Track width,load wheelb11(mm)985DimensionsFork carriage tile angle,forward/backward°2/4  *Height of mast,loweredh1(mm)2035 *Free lifting heighth2(mm)100 *Lifting heighth3(mm)3000 *Height of mast,extendedh4(mm)3930 *Height of overhead guard(cab)h6(mm)2250Height of reach legsh8(mm)290Overall lengthL1(mm)2149Length to fork faceL2(mm)1229Overall widthb1/b2(mm)1090Fork dimensionss/e/l(mm)40*100*920Fork carriage installation Level DIN 15173-2AFork outer width,minumum/maximumb5(mm)200-680Width between reach legsb4(mm)750Reach travelL4(mm)580Ground clearance,mastm1(mm)80Ground clearance,centre of wheelbasem2(mm)90Aisle width,pallet 1000×1000 pallet crosswaysAst1(mm)2454Aisle width,pallet 800×1200 pallet lengthwaysAst2(mm)2654Outer turning radiusWa(mm)1668PerfTravel speed, laden/ unladenkm/h9.5/10Lifting speed, laden/ unladenmm/s260/360Lowering speed, laden/ unladenmm/s370Forward speed laden/ unladenmm/s100Maximum gradeability, laden/ unladen%8/15Accelerating time laden/ unladens5.5/5.0PowerDrive motorkw6.4(AC)Lift motorkw8.2(AC)Steer motorkw0.6Battery voltage/capacity(5h)V/Ah48/360Battery weightkg623OthersType of drive control-MOSFETWorking pressurebar165Steering angle°180

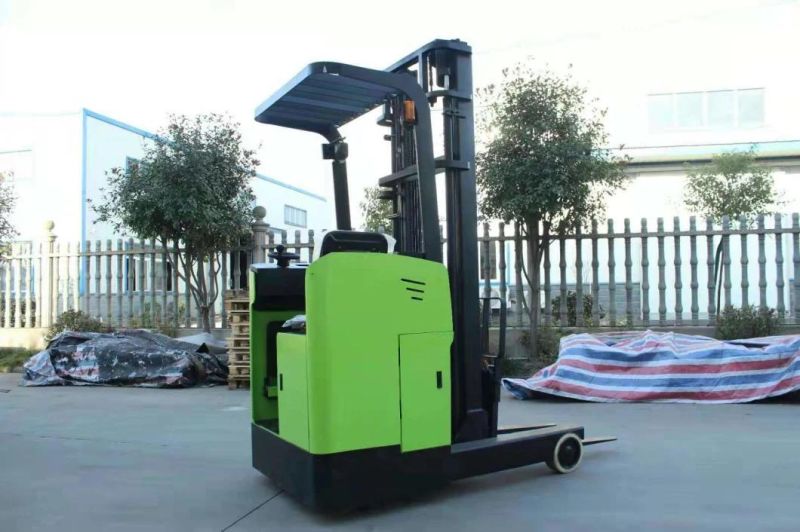

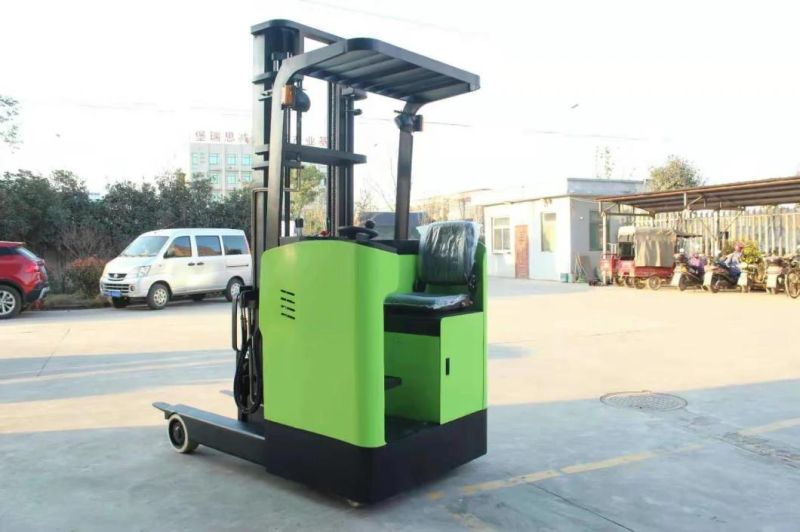

Product pictures
