• Model NO.：FD30
• Lift height：3000~5000mm
• Condition：New
• Free Lifting Height：145mm
• Fork Size：1070*125*45mm
• Mast Tilt Angle：6,12 Degree
• Min. Turning Radius：2600mm
• Min. Stacking Right Angle Channel Width：4550mm
• Min. Ground Clearance：120mm
• Overhead Guard Height：2170mm
• Front Overhang：480mm
• Rear Overhang：545mm
• Transport Package：Nude Package
• Trademark：SNSC
• Origin：China
• HS Code：84270290
• Production Capacity：100 Sets Per Month

SpecificationsUnitFD30FeaturesPower type  DieselRated load kg3000Load center mm500Lifting height mm3000Free lifting height mm145Fork size L*W*Tmm1070*125*45Mast tilt angleFront/RearPerformanceMax. travelling speedloadedkm/h20Max. lifting speedloaded/emptymm/s470/520Max. traction forceloadedKN18Max. climbing ability %20DimensionOverall lengthwithout forkmm2825Overall width mm1230Mast lowered height mm2065Mast extended height mm4260ChassisTyreFront 28x9-15-12PRRear 6.50-10-10PRWheel base mm1800Wheel threadFront/Rearmm1000/970Weight(without load) kg4250PowertrainBattery V/AH12/90EngineModel XC490BPGRated powerkm/r.p.m39/2650Rated torqueNm/r.p.m157/1980No. cylinder 4Bore x strokemm90x105Displacement L2.67Fuel tank capacity L70Transmission/shift  1/1 automatic transmissionOperation pressure Mpa17.5

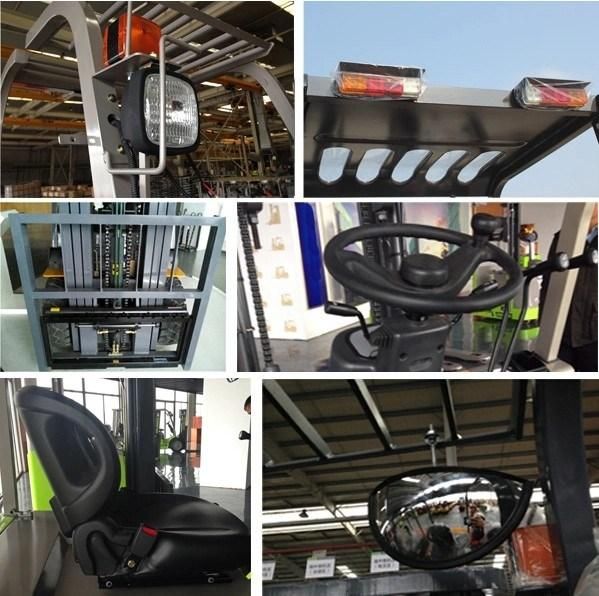

Details of 3Ton Diesel Forklift FD30


Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."


We are dedicated to providing forklift VIP solution to meet all kinds of work condition  which means SNSC forklift can be customized.

Your satisfaction is our ultimate goal, SNSC beyond your needs.

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
