• Model NO.：FG18
• Lift height：3000mm
• Condition：New
• Item：Gas Forklift for Sale
• Fork Size：920*100*35mm
• Engine：Nissank21
• Color：Decided by Buyer
• Weight：2550kg
• Max.Lifting Height：3000mm
• Power Unit：LPG,Gasoline
• Lifting Capacity：1800kg
• Turning Raduis(Outside)：2040mm
• Mast Height ( Fork Lowering)：1995mm
• Transport Package：Container
• Specification：2245mm*1070mm*2060mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：500sets,Year

Manufacturer                          LTMGModel                                     FG18Load capacity                        kg1800Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type    Front/rear PneumaticWheel Front/rear 2/2Max. lifting height                   mm3000Free lift                       mm155Fork size L*W*Tmm920*100*35Tilt range                               Mast forward/backwarddeg6/12Overall length(without fork)     mm2245Total width   mm1070Mast height (fork lowering)    mm1995Overall height fork raised      With backrest                             mm4030Height to head guard              mm2060Turning radius(outside)           mm2040Front face of fork to front axle mm395Min. right angle stacking aislewithout load length&clearancemm2435SpeedMax Travelling   full/no loadkm/h14/14.5Lifting     full/no load        mm/s440/500Lowering     full/no loadmm/s370/530Max.drawbar pull                  Power shift T/M   full/no loadkg1130/690Gradeability at 1.6km/h         Power shift T/M full/no load%21/18Truck weight  kg2550Weight  distributionFull  load              front/rear        kg3580/470No  load               front/rear      kg1110/1440Tires                                      Numberfront/rear2/2Modelfront axle 6.50-10-10PRrear axle5.00-8-10PRWheelbase                              mm1425Tread    Front/rearmm890/900Ground clearance                 At lowest point(mast)                 mm115Framemm105Brake                                           Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand leverBattery                                         Voltage/capacityV/AH12/80Engine                                         Model Nissan K21Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m    max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL50Transmission    Speed forward/backwardPower shift T/M 1-1 power shift T/M
  Operating pressure                   Hydraulic system pressure         kg/cm²180

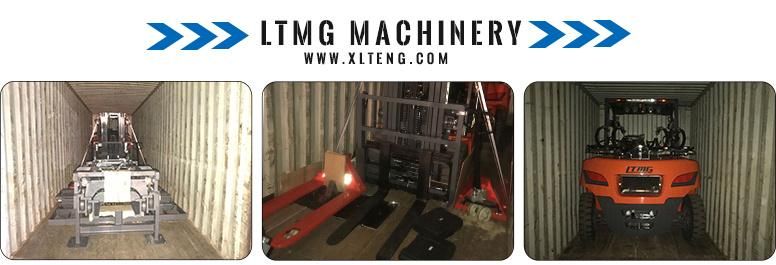

Packaging and shipping




Our client





After sales service
LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
