• Model NO.：FD45
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070*150*55
• Weight：7230kg
• Wheelbase：2000mm
• Color：Decided by Buyer
• Service Brake：Hydraulic
• Rated Power：52kw,2300rpm
• Max. Lifting Height：3000mm
• Product Name：New Condition 4.5 Ton Diesel Forklift with 3m Lift
• Transport Package：Nude Packing, Fixed in Container
• Specification：3245mm*1430mm*2270mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Features    1Manufacturer                           LTMG2Model                              FD453Load capacity                         kg45004Load center                            mm6005Power unit                                Diesel   6Operator type                          Driver/seat 7Tire type                             Pnenumatic  8Wheel                                    Front/rear 2/2Dimension  9Max. lifting height                    mm300010Free lift                              mm14011Fork size                            L*W*Tmm1220*150*5012Tilt range                                Mast forward/backward          deg6/1213Overall length(without fork)     mm310014Total width                              mm148515Mast height (fork lowering)   mm230016Overall height fork raised    With backrest                           mm419017Height to head guard               mm227018Turning raduis(outside)           mm278019Front face of fork to front axle mm56020Min. right angle stacking aislepallet size :1100×1100 add clearence                     mm4585Performance   21Speed  Max Travelling          full/no loadkm/h18/1922Lifting                         full/no load    mm/s410/43023Lowering                    full/no load   mm/s380/34024Max.drawbar pull                   full/no load  kg4500/200025Gradeability at 1.6km/h         full load %25Weight            27Truck weight               kg723028Weight  distribution            Full  load               front/rear     kg10780/129029No  load                 front/rear   kg2780/4450Frame           30Tires                                       Number front/rear2/231Model front axle300-15-18PR32rear axle 7.00-12-12PR33Wheelbase                               mm200034Tread                                               Front/rearmm1180/1190 Ground clearence           At lowest point(mast)            mm10035Frame mm240 Brake                                            Service  brake power brake36Parking brake  Mechanical-hand lever                              Engine       37Battery                                          Voltage/capacityV/AH2-12/8038Engine                                          Model  MITSUBISHI S6SRated power kw/rpm52/2300Rated torque N-m/rpm248/1700Number of cylinders  6Displacement L4.99639Fuel tank capacity L8040Transmission                              shift stage(front/rear-type) 2-1 power shift T/M                                         41Operating pressure                    Hydraulic system pressure     kg/cm²200

Product Features

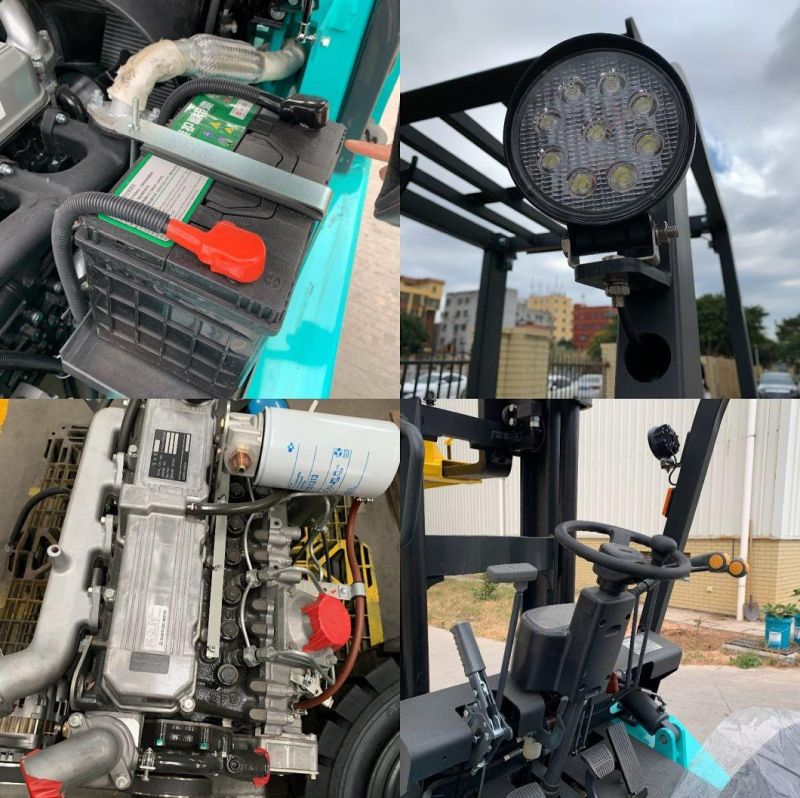

1. Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.

2. Work lights and warning lights make it safer and more efficient even in poor lighting conditions

3. New designed overhead guard protective device prevent the sudden accidents: The lifting system adopts buffering technology to reduce shock and vibration of the mast.

4.high strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency.



Packaging & Shipping

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)

Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.



After Sales Service
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
