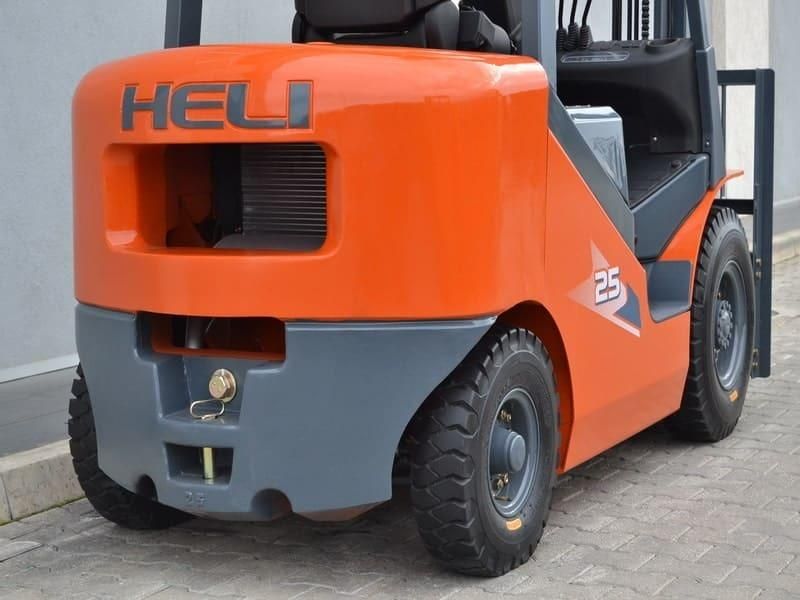

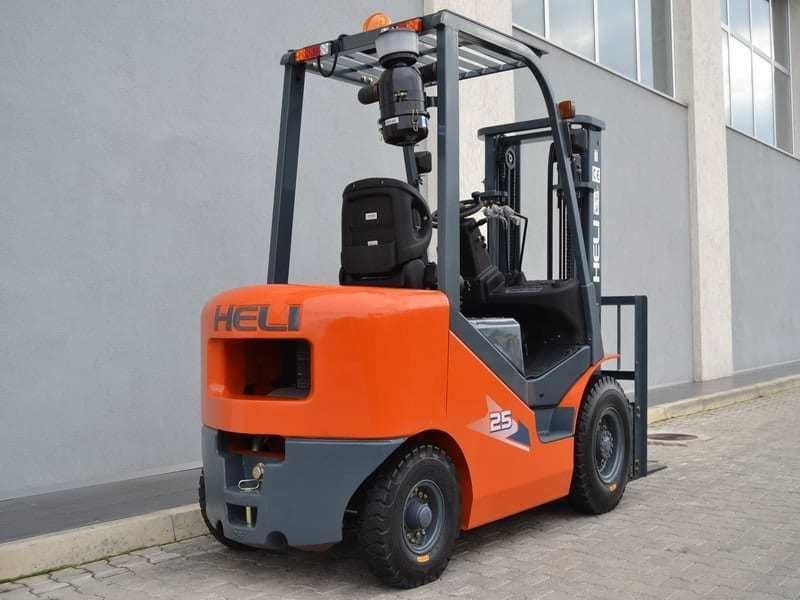

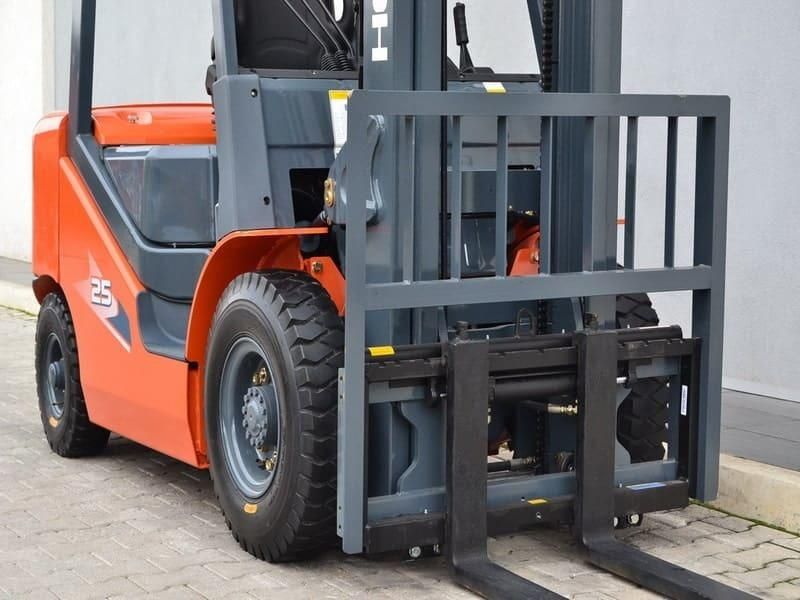

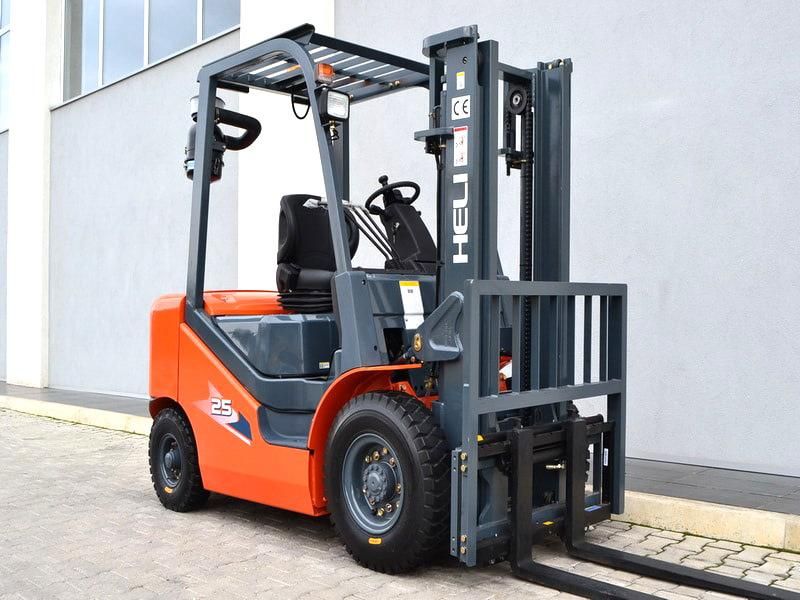

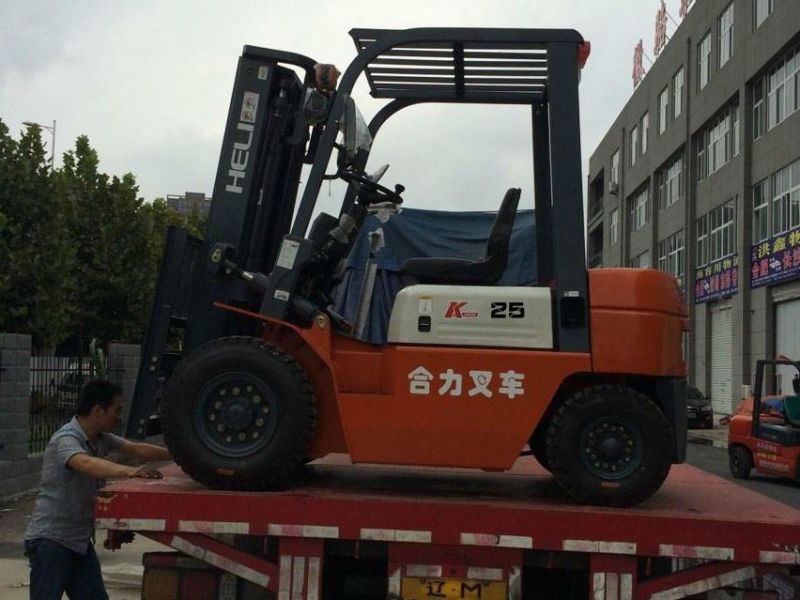

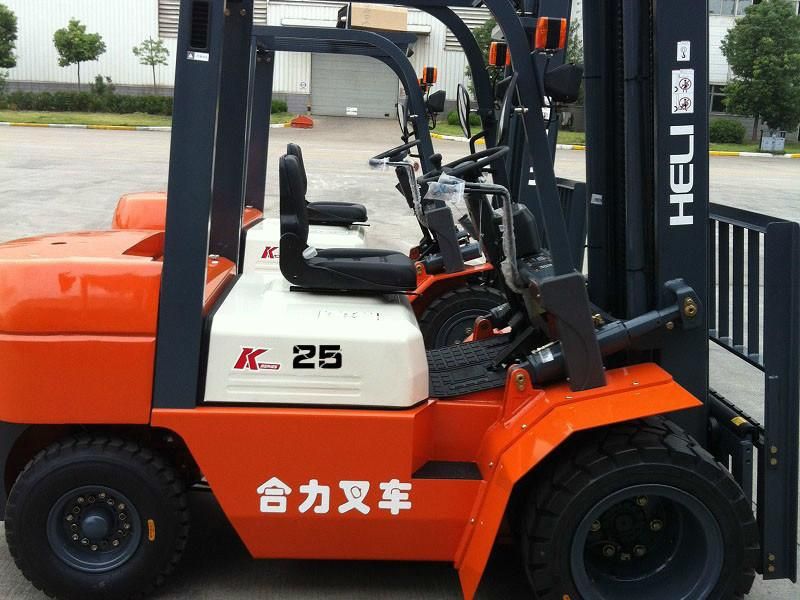

Heli 6 Units 2.5 Ton Diesel Forklift Cpcd25 Export to Argentina
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Forever
- Warranty：1 Year
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：CPCD25
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Power Type：Diesel
- Engine：Xinchai
- Rated Power：42kw
- Fork T*W*L：40*125*1070mm
- Mast：2 Stage 3m Mast
- Transport Package：Nude Package
- Specification：2910*1480*2515mm
- Trademark：HELI
- Origin：China
- HS Code：84272090
- Production Capacity：1000units,Month
Description
Model CPCD25 Power type Diesel Rated capacity kg 2500 Load center mm 500 Lift height mm 3000 Mast tilt angle (forward/backward) Deg 5/15 Front overhang mm 550 Wheel-base mm 1850 Tread(front/rear) mm 1250/1205 Travel brake Hydraulic-Foot pedal Parking brake Mechanical-Hand level Lift speed(with/without load) mm/s 400/520 Lower speed (with/without load) mm/s (with load)300 Travel speed (with/without load) km/h 18/23 Max. gradeability (with load) % 17 Engine Model A495BPG Manufacturer Xinchang Rated power kw 42/2650 Max.roration 174/1800 Dispilacement 2.98 Battery Voltage V 12 Capacity Ah 100 Gearbox Transmission type Hydraulic Gears,speed (front/rear) I/I Tire type Spare tyres Model Pront 11.5/80-15.3-14PR Rear 27×10-12-12PR Self.weight kg 4750 Free lift height mm 120 Fork Thickness×Width×Length mm 40×125×1070 Overall dimensions Overall length(without forks) mm 2910 Overall width mm 1480 Overall height Extended height(mast) mm 4270 Lower height(mast) mm 2310 Overhead guard mm 2515 Min. turning radius mm 2940 Min. under ground clearance Under mast mm 220 Center of wheel-base mm 310 Optional engines: Model 4TNE98 Manafacturer Rated power KW 42.1/2300 Max.roration Nm/Rpm 186/1700
