• Model NO.：FB15
• Lift height：3000~5000mm
• Condition：New
• Rated Capacity：1500 Kg
• Fork Size(L*W*T)：920mm*120mm*35mm
• Length to Fork Face of Fork(Withou Fork)：2190mm
• Overall Width：1090mm
• Mast Lowered Height：1995
• Overhead Guard Height：2195
• Turning Radius(Outside)：2010mm
• Front Overhang：420mm
• Ground Clearance：110mm
• Wheelbase：1420mm
• Travel Speed：14 Km,H
• Max. Gradeability：15%
• Service Weight：3070kg
• Battery Standard：48V,400ah
• Transport Package：Container
• Specification：1955mm*1070mm*2100mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

The specification of 1.5 ton mini battery electric forkliftManufacturer     LTMGModel    FB15Load capacity  kg1500Load center  mm500Power unit  BatteryOperator type  Driver/seat Tire type  PneumaticWheel(x=driving) Front/rear   2X/2Max. lifting height mm3000Free lift  mm155Fork sizeL*W*Tmm920*100*35Tilt range Mast forward/backward deg6/12Overall length(without fork) mm1955Total width  mm1070Mast height (fork lowering)   mm1995Overall height fork raisedWith backrestmm4030Height to head guard mm2100Turning radius(outside)     mm1780Load distance mm375Min. right angle stacking aisle not add load length&clearancemm2155Speed   Max Travellingfull load km/h14Max TravellingNoload km/h16Liftingfull load mm/s350Liftingnoload  mm/s530Gradeabilityfull load  %15Truck weight(with standard battery) kg2690Weight  distribution  Fullloadfront/rearkg3635/555Noloadfront/rear  kg1110/1580Tires        Number front/rear   2/2Model frontaxle 6.00-9-10-10PRrear axle        16*6-8-10PRWheelbase   mm1250Tread   Front/rear        mm910/900Ground clearanceAt lowest point(mast)  mm105Frame      mm95BrakeServicebrake          Hydraulic-foot pedal Parking brake Mechanical-hand leverBatteryVoltage/capacity     V-AH/5hr48V-400Weight with box (standard) kg 735Electric motor AC Driving motorkw8DC Hydraulic driving motor kw8.2AC Hydraulic driving motor (as option) kw8Control type Driving AC  , lifting DC
Driving AC  , lifting AC(as option )  Operating pressure  kg/cm²145

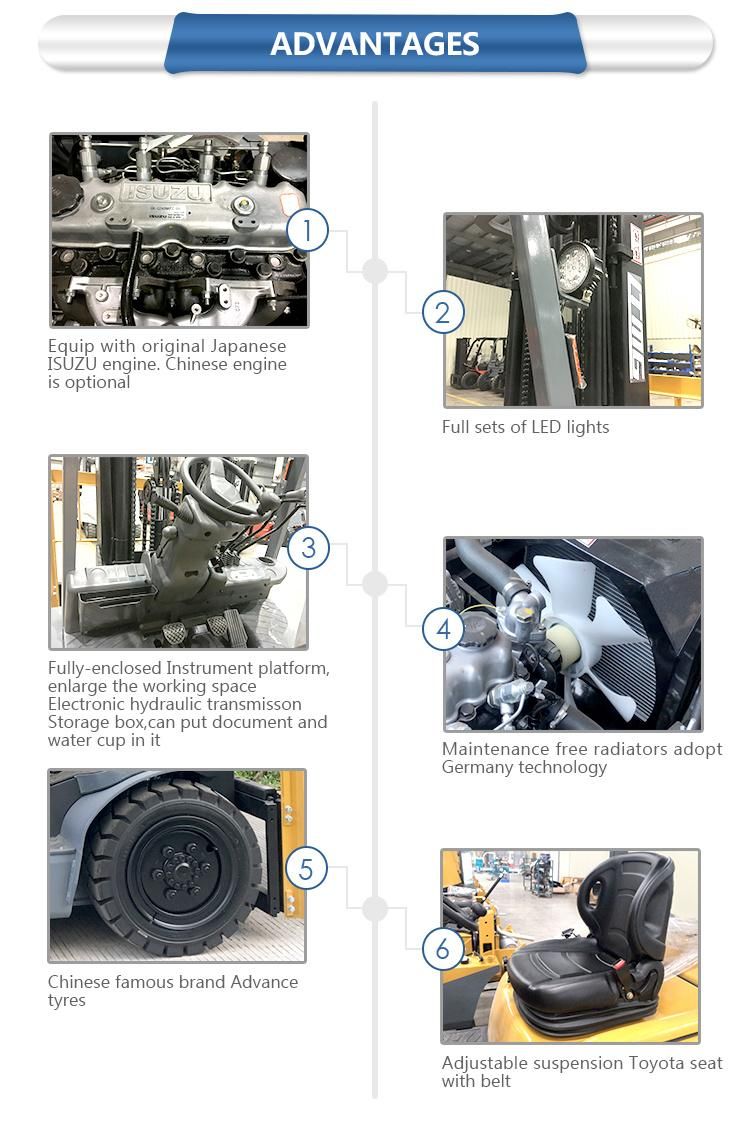

Product Features

1.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.

2.Thicker reinforcing plate ensures the safety and efficiency.

3.New designed overhead guard protective device prevent the sudden accidents.

4.Driver could easy to read and understand it according to the right instrument panel with clear meter display.

5.High voltage and large capacity battery can supply the forklift with strong power;GS & HOPPECKE battery group is optional according to customers' requirements.

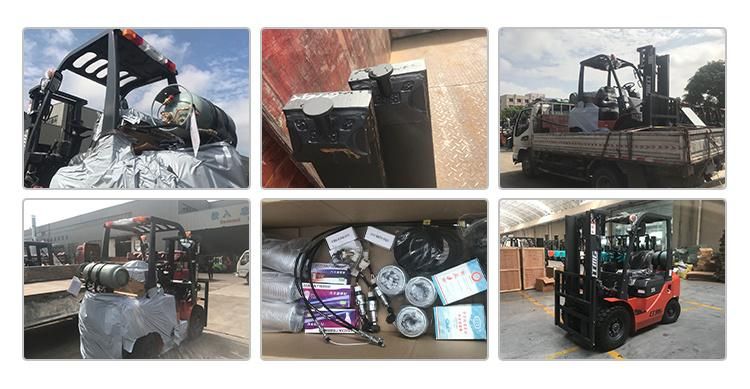

Packing & Delivering



Our Factory


Our customers



After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
