• Model NO.：FG15
• Lift height：3000mm
• Condition：New
• Fork Size：920*100*35mm
• Weight：2550kg
• Engine：Nissan
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Fuel Tank Capacity：50L
• Power Unit：LPG,Gasoline

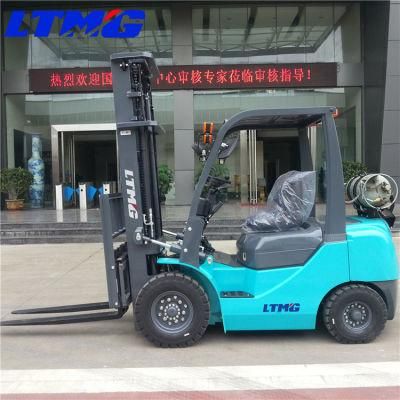

• Item：1.5 Ton LPG Forklift
• Mast Height ( Fork Lowering)：1995mm
• Turning Raduis(Outside)：2040mm
• Transport Package：Container
• Specification：2245mm*1070mm*2060mm
• Trademark：LTMA
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

Manufacturer                          LTMGModel                                   Power shift T/M         FG15Load capacity                        kg1500Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type    Front/rear PneumaticWheel Front/rear 2/2Max. lifting height                   mm3000Free lift                       mm155Fork size L*W*Tmm920*100*35Tilt range                               Mast forward/backwarddeg6/12Overall length(without fork)     mm2245Total width   mm1070Mast height (fork lowering)    mm1995Overall height fork raised      With backrest                             mm4030Height to head guard              mm2060Turning radius(outside)           mm2040Front face of fork to front axle mm395Min. right angle stacking aislewithout load length&clearancemm2435SpeedMax Travelling   full/no loadkm/h14/14.5Lifting     full/no load        mm/s440/500Lowering     full/no loadmm/s370/530Max.drawbar pull                  Power shift T/M   full/no loadkg1130/690Gradeability at 1.6km/h         Power shift T/M full/no load%21/18Truck weight  kg2550Weight  distributionFull  load              front/rear        kg3580/470No  load               front/rear      kg1110/1440Tires                                      Numberfront/rear2/2Modelfront axle 6.50-10-10PRrear axle5.00-8-10PRWheelbase                              mm1425Tread    Front/rearmm890/900Ground clearance                 At lowest point(mast)                 mm115Framemm105Brake                                           Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand leverBattery                                         Voltage/capacityV/AH12/80Engine                                         Model Nissan K21Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m    max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL50Transmission    Speed forward/backwardPower shift T/M 1-1 power shift T/M
  Operating pressure                   Hydraulic system pressure         kg/cm²180
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

Packing and shipping



Our Factory



Our customer




After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.




FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 15 days to 35 days.
