• Model NO.：FD15
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：920mm*120mm*35mm
• Engine：Isuzu,Xinchai
• Max. Lifting Height：3000mm
• Service Weight：2820kg
• Color：Could Be Designed by Buyer
• Rated Power：35.4kw,2500rpm
• Overall Length(Without Fork)：2285mm
• Tire Type：Pnenumatic
• Height to Head Guard：2040mm
• Transport Package：Nude Packing, Fixed in Container
• Specification：2285mm*1086mm*2040mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer   LTMGModel   Power shift T/MFD15Load capacity  kg1500Load center  mm500Power unit    dieselOperator type   Driver/seatTire type   PneumaticWheel Front/rear 2/2Max. lifting height  mm3000Free lift  mm155Fork size L×W×Tmm920*100*35Tilt range Mast forward/backwarddeg6/12Overall length(without fork)   mm2245Total width   mm1070Mast height ( fork lowering)  mm1995Overall height fork raised ( with backrest)  mm4030Height to head guard  mm2060Turning radius(outside)  mm2040Front face of fork to front axle  mm395Min. right angle stacking aisle  mm2435SpeedMax Travelling full loadkm/h14no loadkm/h14.5Liftingfull loadmm/s440no loadmm/s500Loweringfull loadmm/s370no loadmm/s530Max.drawbar pull full/no loadKg1130/690Gradeability at 1.6km/h full/no load%21/18Truck weight  kg2550Weight
distributionfull loadfrontkg3580rearkg470no loadfrontkg1110rearkg1440front wheel   6.50-10-10PRrear  wheel   5.00-8-10PRWheelbase  mm1425Treadfront mm890rear mm900Ground
clearanceAt lowest point(mast) mm115Frame mm105BrakeService  brake  Hydraulic-foot pedalParking brake  Mechanical-hand leverBatteryVoltage/capacity  12/80EngineModel  ISUZU C240Rated power kw/rpm34.3/2500Rated torque Nm/rpm138/1800Number of cylinders  4Placement L2.369Fuel tank capacity  L50TransmissionSpeed forward/backward  1-1 power shift T/MOperating pressureHydraulic system pressure Kg/cm²18

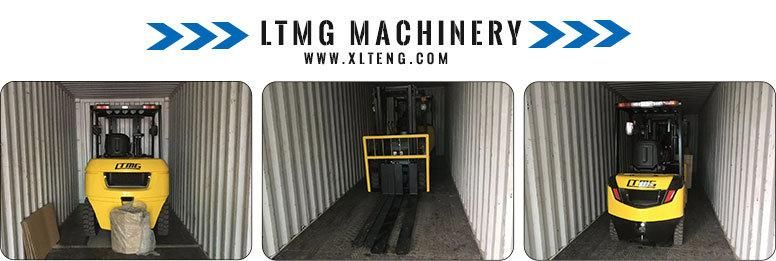

Packing & Shipping



Factory Show
LTMG machinery is engaged in forklift industry over 20 years. We produce a wide range of forklifts, loaders
and airport tractors.
If you are interested in our product,you could visit our website.
Website: ltmamachine.en.made-in-china.com

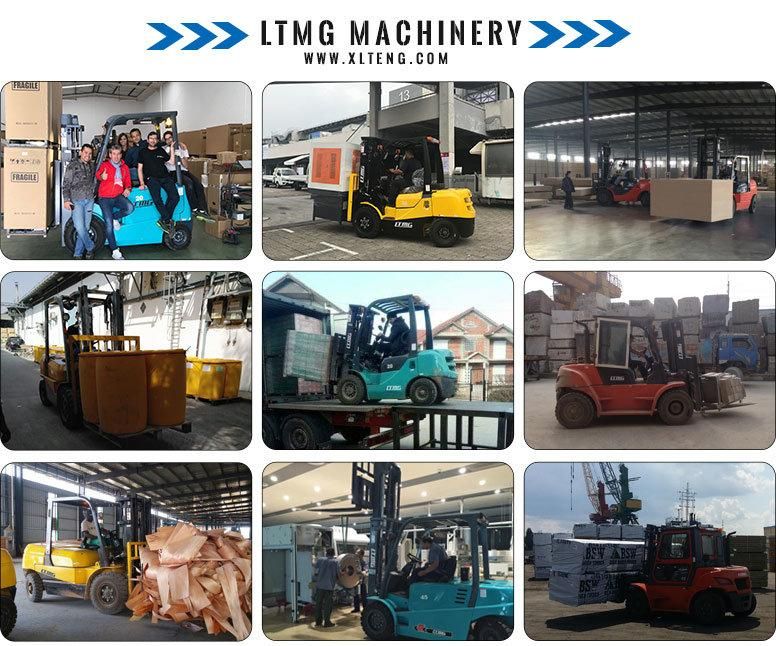

Customers Show


LTMG Forklift Application

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse,
and others.
The quality of our LTMG forklift has been recognized by our customers.


After sales Service
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
