Ltmg 3 Stage Mast 6 Meter Lift Height Forklift Diesel 2.5 Ton Capacity Forklift Truck

XIAMEN LTMG CO., LTD.
  • Cab Location：Not Adjustable
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：2.5 Ton
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：FD25
  • Lift height：3000~5000mm
  • Condition：New
  • Max. Lifting Height：3000mm
  • Fork Size：1070mm*122mm*40mm
  • Weight：3670kg
  • Engine：Isuzu
  • Rated Power：34.3kw,2500rpm
  • Wheelbase：1600mm
  • Overall Length(Without Fork) ：2530mm
  • Ground Clearance：115mm
  • Truck Weight：3670kg
  • Transport Package：Container
  • Specification：2530mm*1150mm*2120mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84272090
  • Production Capacity：800sets,Year

Description

Model                                   Power shift T/M         FD25TManual shift T/M      FD25CLoad capacity                        kg2500Load center  mm500Power unit   DieselOperator type  Driver/seat Tire type      Pneumatic Wheel  Front/rear 2/2Max. lifting height                   mm3000Free lift                            mm160Fork size             L*W*Tmm1070*122*40Tilt range Mast forward/backward             deg6/12Overall length(without fork)     mm2530Total width   mm1150Mast height (fork lowering)    mm1995Overall height fork raised      With backrest                             mm4030Height to head guard              mm2120Turning radius(outside)    mm2240Front face of fork to front axle mm450Min. right angle stacking aisle without load length&clearance  mm2690SpeedMax Travelling      full/no load km/h17/19Lifting           full/no load mm/s550/580Lowering      full/no load    mm/s450/550Max.drawbar pull                  Power shift T/M    full/no load                                      kg1670/830Manual shift T/M  full/no load    kg1700/830Gradeability at 1.6km/h         Power shift T/M    full/no load%23/18Manual shift T/M  full/no load%18/18Truck weight  kg3670Weight  distribution            Full load   front/rearkg5410/760No load    front/rearkg1430/2240Tires                                      Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread                                              Front/rearmm970/970Ground clearance                 At lowest point(mast)                 mm110Framemm115Brake                                           Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand lever Battery                                         Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backward   Power shift T/M  Manual shift T/M              1-1 power shift T/M
2-2 manual shiftT/M    Operating pressure Hydraulic system pressure  kg/cm²180
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:Middle muffler, more environmental.
6.High technology:Maintenance free radiators adopt Germany technology.

Ltmg 3 Stage Mast 6 Meter Lift Height Forklift Diesel 2.5 Ton Capacity Forklift Truck

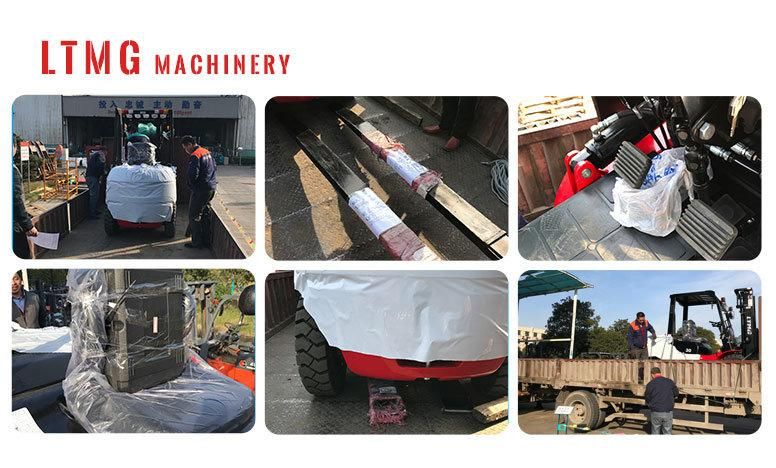

Shipping & Delivering

Ltmg 3 Stage Mast 6 Meter Lift Height Forklift Diesel 2.5 Ton Capacity Forklift Truck



Our Factory
Ltmg 3 Stage Mast 6 Meter Lift Height Forklift Diesel 2.5 Ton Capacity Forklift Truck

LTMG Customers

Ltmg 3 Stage Mast 6 Meter Lift Height Forklift Diesel 2.5 Ton Capacity Forklift Truck



After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Ltmg 3 Stage Mast 6 Meter Lift Height Forklift Diesel 2.5 Ton Capacity Forklift Truck



FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
