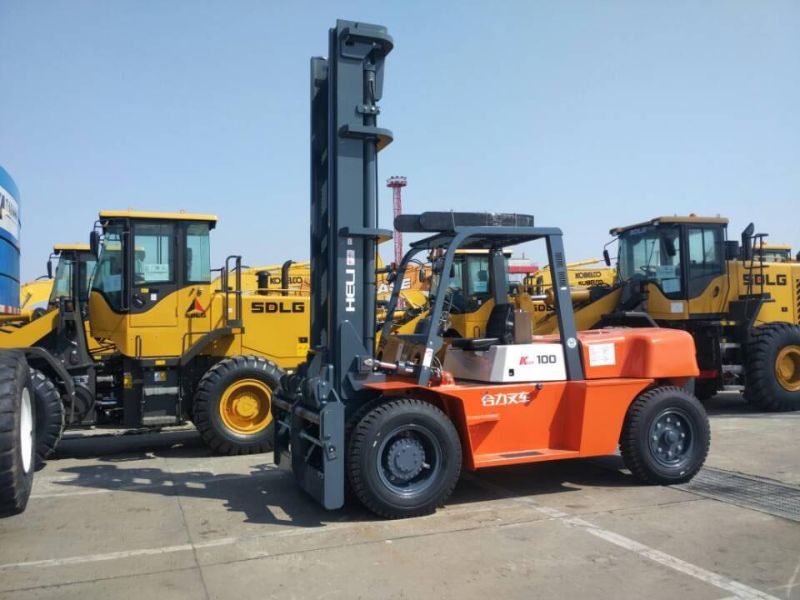

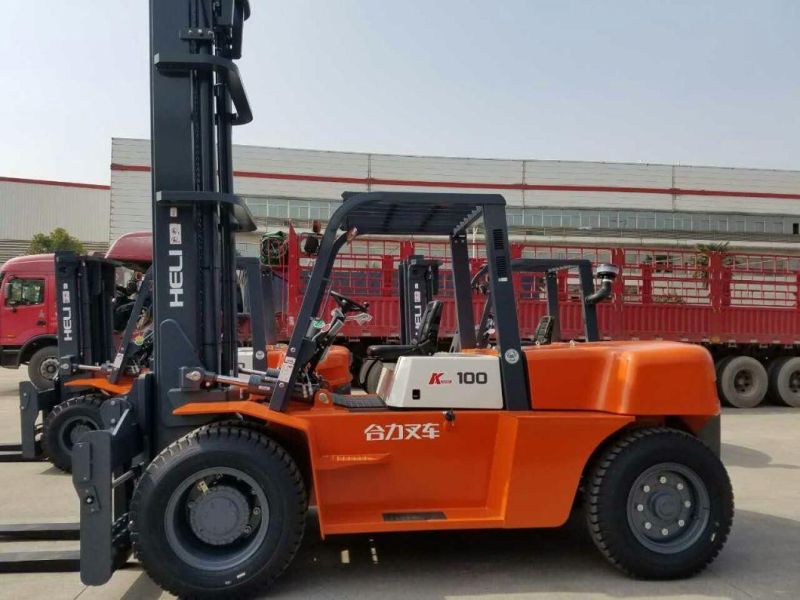

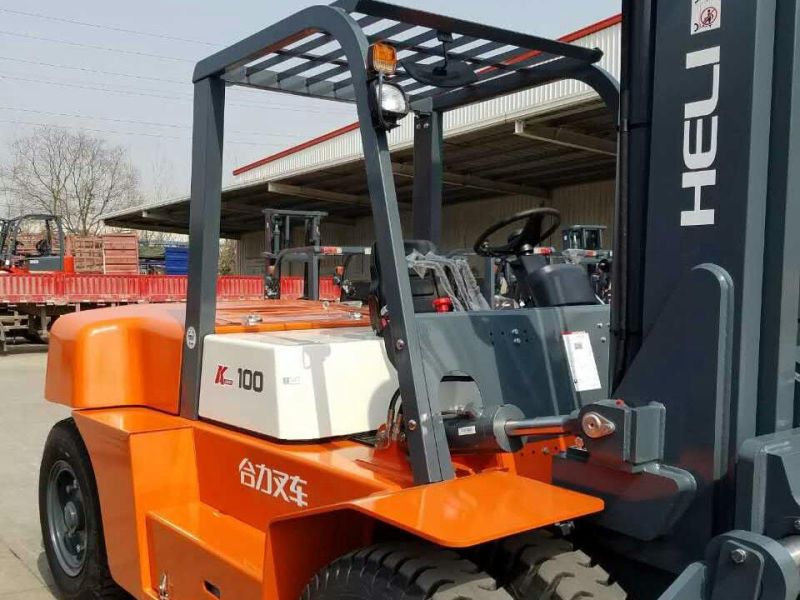

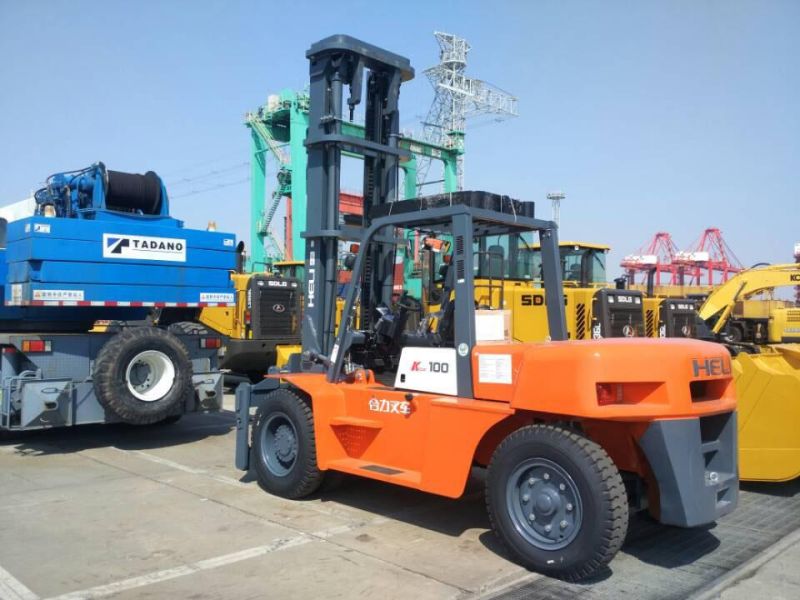

Chinese Famous Brand Heli 10 Ton Diesel Forklift Truck Cpcd100 with Side Shift and
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：1 Year Warranty
- Warranty：1 Year Warranty
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：5T - 10T
Base Info
- Model NO.：CPCD100
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Fork Length：1220mm
- Fork Width：175mm
- Power Souce：Diesel Engine
- Certification：CE,ISO9001
- Min. Lifting Height：122mm
- Engine：Quanchai
- Max Lifting Height：3000mm
- Loading Capacity：10000kg
- Transport Package：Nude Packing
- Specification：4210*2165*2560mm
- Trademark：heli
- Origin：China
- HS Code：8427209000
- Production Capacity：100sets,Month
Description
Parameter
Model
Unit
CPCD100
Power type
Diesel
Rated capacity
kg
10000
Load center
mm
600
Lift height
mm
3000
Mast tilt angle (forward/backward)
Deg
6/12
Wheel-base
mm
2800
Tread(front/rear)
mm
1600/1720
Performance parameter
Travel brake
Hydraulic-Foot pedal
Parking brake
Mechanical-Hand level
Lift speed(with/without load)
mm/s
310/340
Lower speed (with/without load)
mm/s
(with load)<600 (without load)>300
Travel speed (with/without load)
km/h
23/26
Max. gradeability (with load)
%
20
Max. Towing (with/without load)
kN
50/40
Power, transmission and others
Engine
Model
LR6B5-22
Manufacturer
YTO
Rated power
kw
88.2/2200
Max. rotation
Nm/rpm
440/1600
Displacement
L
7.42
Battery
Voltage
V
24
Capacity
Ah
2×100
Gearbox
Transmission type
Hydraulic
Gears speed (front/rear)
Tire
type
Pneumatic tyre
Model
Front
9.00-20-14PR
Rear
9.00-20-14PR
