High Quality Heli 3.5ton Diesel Forklift Cpcd35
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：CPCD35
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Fork Length：1070mm
- Overall Dimensions：2770*1285*2170
- Max.Lifting Height：3000mm
- Fork Width：125mm
- Weight (Kg)：4710 Kg
- Rated Capacity：3500kgs
- Mast Overall Height：2180mm
- Max.Forking Lifting Height：4217mm
- Transport Package：Nede Package
- Specification：3.5ton
- Origin：Anhui, China
- Production Capacity：200 Sets Per Month
Description
Overview

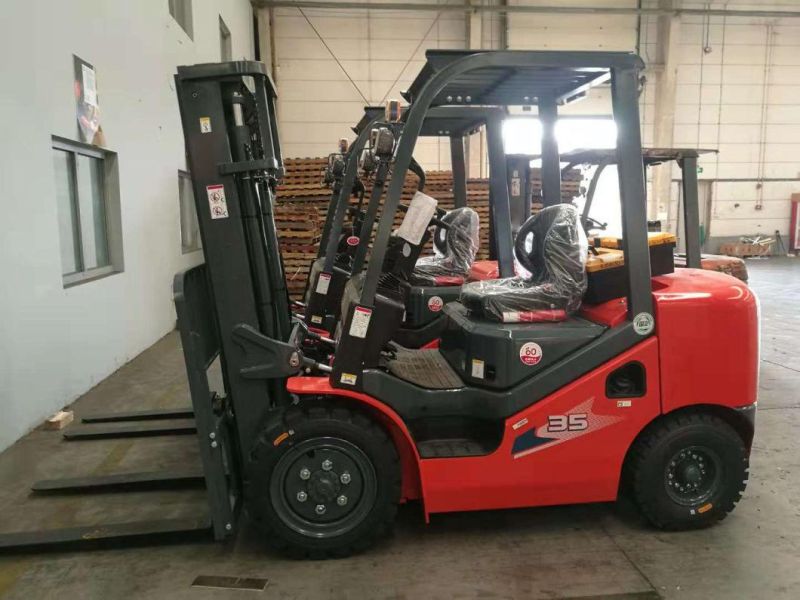

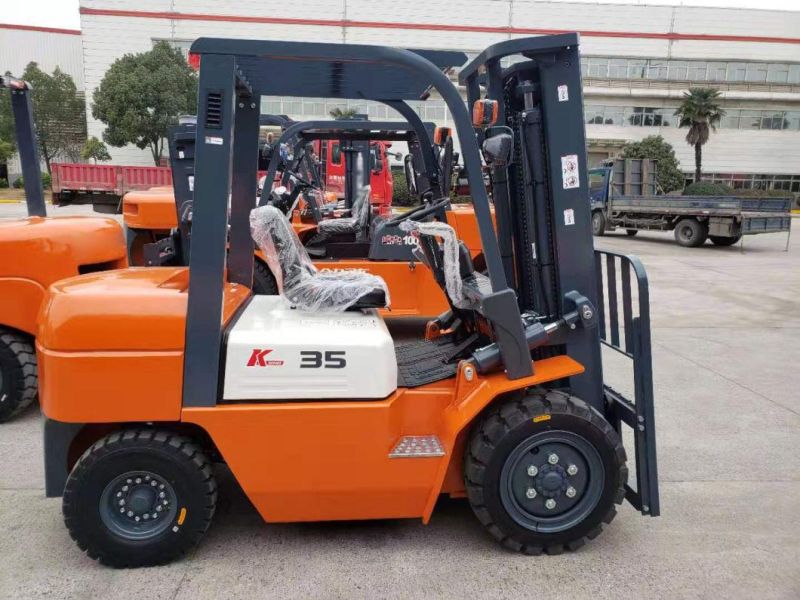

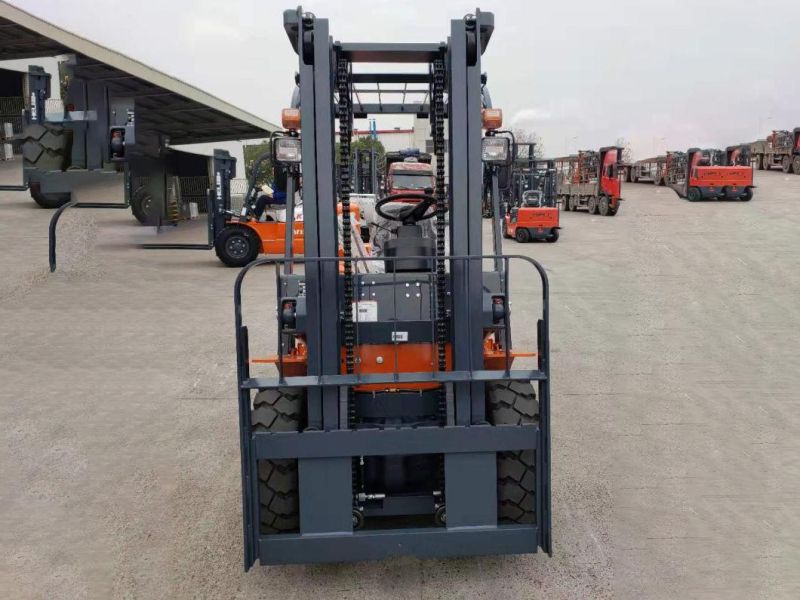

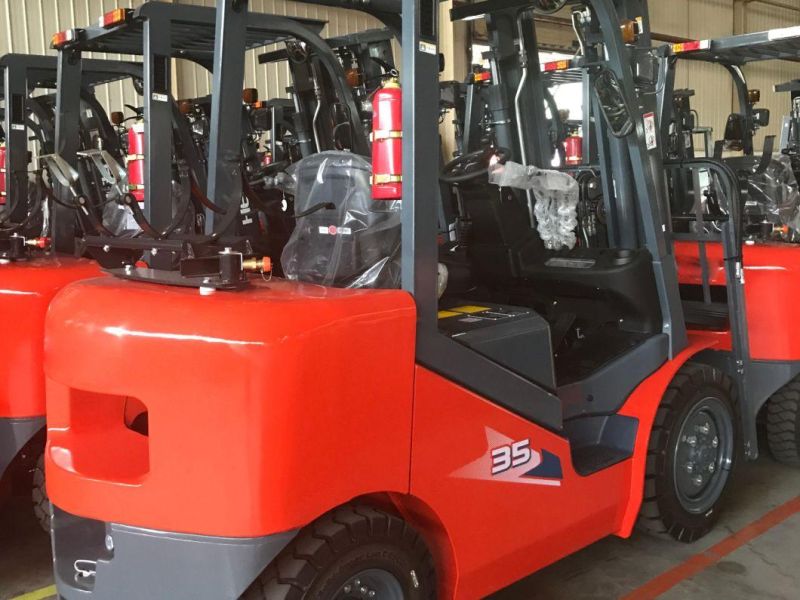

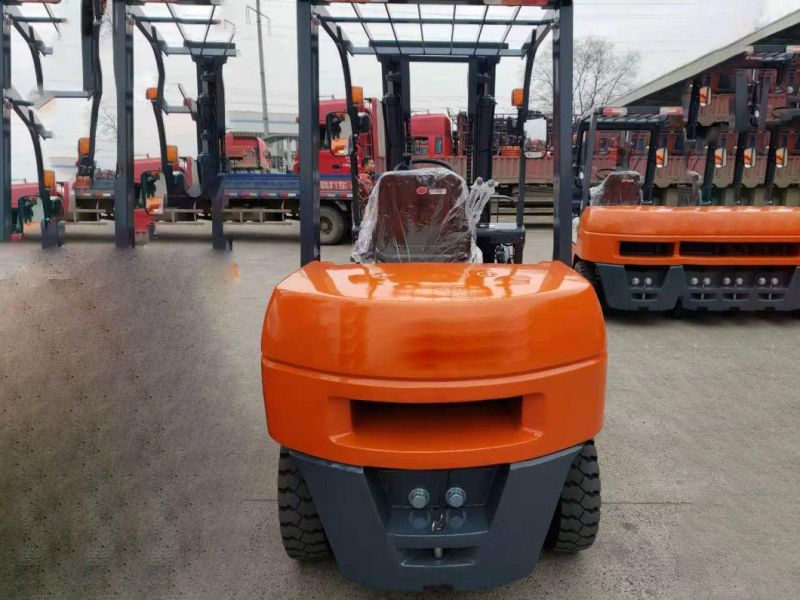

Product DescriptionDetailed Photos
Product Parameters
Model
Unit
CPQ20
CPQD20
CPQYD20
CPQ25
CPQD25
CPQYD25
CPQ30
CPQD30
CPQYD30
CPQ35
CPQD35
CPYQYD35
CPC20
CPCD20
CPC25
CPCD25
CPC30
CPCD30
CPC35
CPCD35
Power type
Gas or PLG
Diesel
Rated capacity
kg
2000
2500
3000
3500
2000
2500
3000
3500
load center distance
mm
500
Max.Lifting Height
mm
3000
Total Length(Not include fork)
mm
2522
2597
2702
2713
2522
2597
2702
2713
Total Width
mm
1150
1225
1150
1225
Total Height(Mast)
mm
2070
2090
2070
2090
min turning radius
mm
2170
2240
2400
2420
2170
2240
2400
2420
travel speed(with/without load)
Km/h
17/19
19/19
19/19
19/19
Fork weight
kg
3320
3680
4280
4960
3320
3680
4280
4960
Engine
C240 Diesel engine:rated Power:34.5kw/2500rpm Displacement:2.369L Cylinder:4
C4JG2 Diesel engine:rated Power:44.8kw/2450rpm Displacement:3.059L Cylinder :4
