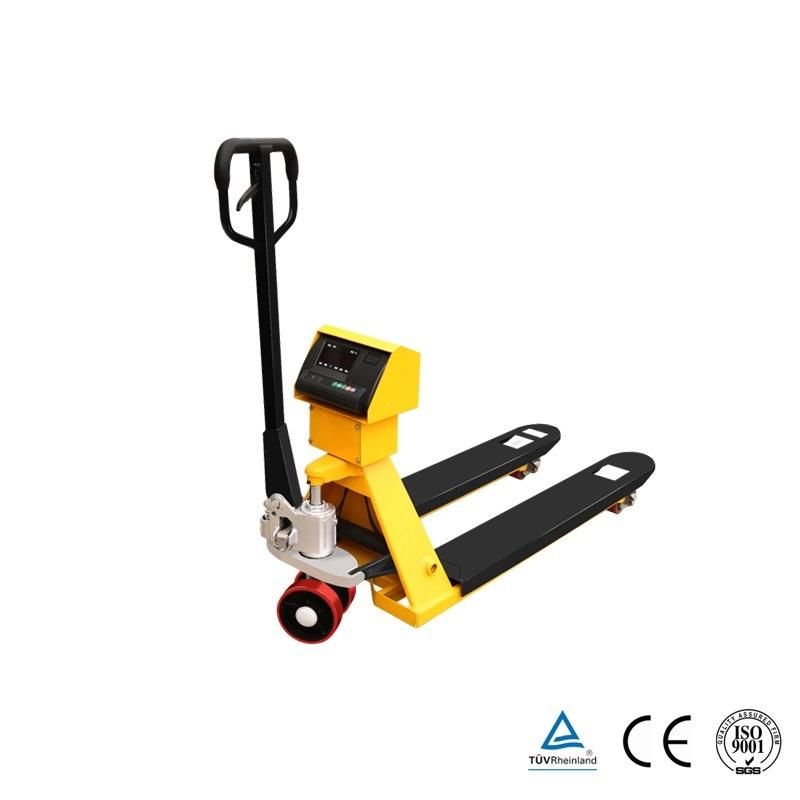

1 Ton Electronic Industrial Pallet Truck Jack Scale
Changzhou Cheeson Machinery Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：One Year
- Cab Location：Ground
- Type：Stacker
- Power：DC Motor
- Load Capacity：1T - 5T
Base Info
- Fuel：Hand
- Load center：500mm
- Lift height：1600~3000mm
- Condition：New
- Color：Red or Yellow Optional
- Transport Package：Bubble Wrap
- Trademark：Cheeson
- Origin：China
- HS Code：8427109000
- Production Capacity：2000sets,Month
Description
Semi-electric Staker TruckModel DYC10-1.6 DYC20-1.6 DYC10-2.0 DYC20-2.0 DYC10-2.5 DYC20-2.5 DYC10-3.0 DYC20-3.0 DYC10-3.5 DYC20-3.5 Lifting Height/mm 1600 1600 2000 2000 2500 2500 3000 3000 3500 3500 Loading Capacity/Kg 1000 2000 1000 2000 1000 2000 1000 2000 1000 2000 Lower Height/mm 85 85 85 85 85 85 85 85 85 85 Fork Length/mm 1000 1100 1000 1100 1000 1100 1000 1100 1000 1100 Outer Width of Fork/mm 320-680 320-680 320-680 320-680 320-680 320-680 320-680 320-680 320-680 320-680 Overall Width/mm 800 900 800 900 800 900 800 900 800 900 Overall Length/mm 1690 1790 1690 1790 1690 1790 1690 1790 1690 1790 Lifting Speed/s 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 Lowering Speed/s 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 Lifting Motor 12/1.5 12/1.5 12/1.5 12/1.5 12/1.5 12/1.5 12/1.5 12/1.5 12/1.5 12/1.5 Battery 12V/120AH 12V/120AH 12V/120AH 12V/120AH 12V/120AH 12V/120AH 12V/120AH 12V/120AH 12V/120AH 12V/120AH Charger 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A Net Weight 380-460 380-460 380-460 380-460 380-460 380-460 380-460 380-460 380-460 380-460 4899 5199 5299 5599 5699 5999 6099 6399 6499 6799
