• Model NO.：NEW-TK
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Mast Type：2-Stage
• Mast Lowered Height：1995mm
• Mast Extened Height：4030mm
• Overall Length (Without Fork)：3390mm
• Overall Width：1160mm
• Wheelbase：1500mm
• Fork Size：1070×100×40mm
• Aisle Width(1000×1200)：3720mm
• Turning Radius：2100mm
• Drive Motor：6.8kw
• Lift Motor：7.5kw
• Battery：48V,490ah
• Controller：Curtis
• Max Grade Ability：10,12%
• Steering Type：EPS
• Transport Package：International Packing Way with Thick Plastic Film
• Specification：Rated capacity: 3000kg
• Trademark：Noelift
• Origin：China
• HS Code：84271090
• Production Capacity：500,Year

Basic Info.

Model NO. NEW-TK Fuel Electric Load center 500mm Lift height 3000~5000mm Condition New Mast Type 2-Stage Mast Lowered Height 1995mm Mast Extened Height 4030mm Overall Length (Without Fork) 3390mm Overall Width 1160mm Wheelbase 1500mm Fork Size 1070×100×40mm Aisle Width(1000×1200) 3720mm Turning Radius 2100mm Drive Motor 6.8kw Lift Motor 7.5kw Battery 48V/490ah Controller Curtis Max Grade Ability 10/12% Steering Type EPS Transport Package International Packing Way with Thick Plastic Film Specification Rated capacity: 3000kg Trademark Noelift Origin China HS Code 84271090 Production Capacity 500/Year

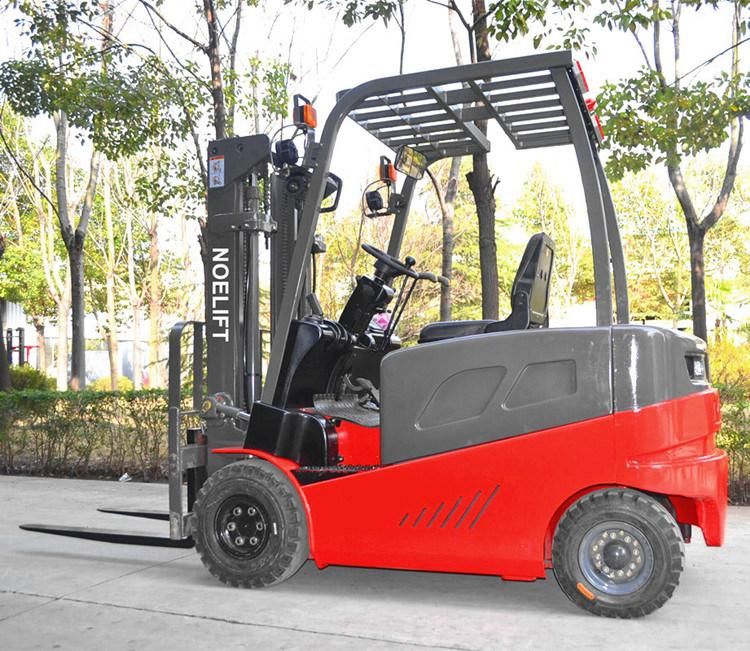

Product Description

Products description





PRODUCT ADVANTAGE

1. The advanced Curtis controller is more stable and safer.
2. The maintenance-free AC drive system enables the vehicle to respond more quickly and accurately, and a full AC system is optional.
3. The wide view door frame design improves the work efficiency.
4. The layout of the whole vehicle is more reasonable, with low center of gravity, small size and low weight.

Main Features

Rated load capacity: 1500-3000kg, lift height: 3000-6000mm, stable performance, comfortable operation, the advantages are as follows:
1. Initiative shocking proof system, to make sure the forklift more safe and stability;
2. Strenghen mast with high safety factor;
3. Durability: all electric connector with water-proof design;
4. The advanced safe system for mast pipeline, to aviod the out of control for mast when hydraulic system have fault, to ensure the good safe;
5. To use MOSFET controller, it's can provide the smooth and cyclic regenerative braking, to extend the working life of motor and battery;
Certifications

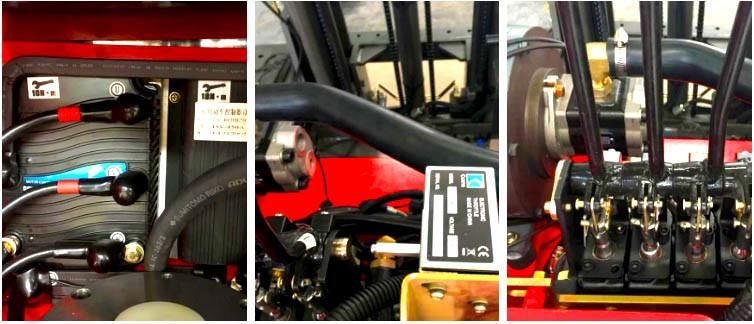

Detailed Images


Our service
NOELIFT service cover the whole life of the machine you purchase.When you first inquire our machine,we provide the full data and information to make sure this is the best choice for you.When the machine deliver to you,we will have professional maintenance advice and service manual to help you keep the machine under very good operation condition.Even if the machine have problem,we have a full time service system to make sure no deplay happen and minimize the downtime and maximize the machine efficiency.
