• Model NO.：TK
• Lift height：3000~5000mm
• Condition：New
• Manufacturer：Noelift
• Model：Tk
• Power Unit：Battery
• Operation：Seat
• Fork Overhang：380mm
• Wheelbase：1380mm
• Service Weight(with Battery)：2900kg
• Tyre,Operator/Load Side：Air Type
• Tyre Size,Load/Drive：5.00-8,6.00-9
• Wheels Number,Front/Back(X=Driven)：2X,2
• Tread, Drive/Load：910mm,930mm
• Mast Tilt Range, Front/Rear：6,10
• Mast Closure Height：1995mm
• Free Lift Height：135mm
• Overhead Guard Height：2100mm
• Transport Package：International Packing Way with Thick Plastic Film.
• Specification：2135*1110*2100 mm-2990*1470*2250 mm
• Trademark：NOELIFT
• Origin：China
• HS Code：84271090
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. TK Lift height 3000~5000mm Condition New Manufacturer Noelift Model Tk Power Unit Battery Operation Seat Fork Overhang 380mm Wheelbase 1380mm Service Weight(with Battery) 2900kg Tyre,Operator/Load Side Air Type Tyre Size,Load/Drive 5.00-8/6.00-9 Wheels Number,Front/Back(X=Driven) 2X/2 Tread, Drive/Load 910mm/930mm Mast Tilt Range, Front/Rear 6/10 Mast Closure Height 1995mm Free Lift Height 135mm Overhead Guard Height 2100mm Transport Package International Packing Way with Thick Plastic Film. Specification 2135*1110*2100 mm-2990*1470*2250 mm Trademark NOELIFT Origin China HS Code 84271090 Production Capacity 500 Pieces/Month

Product Description

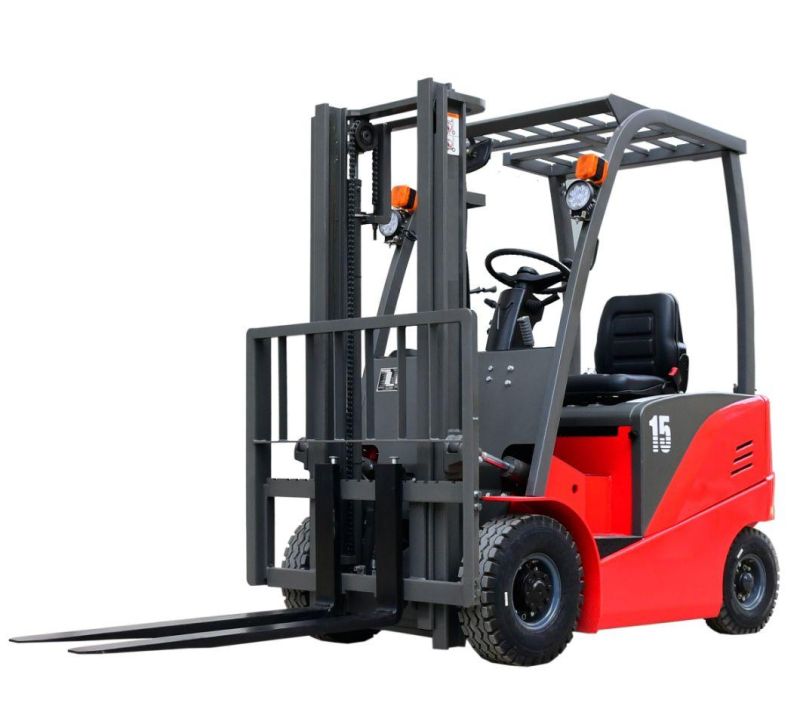

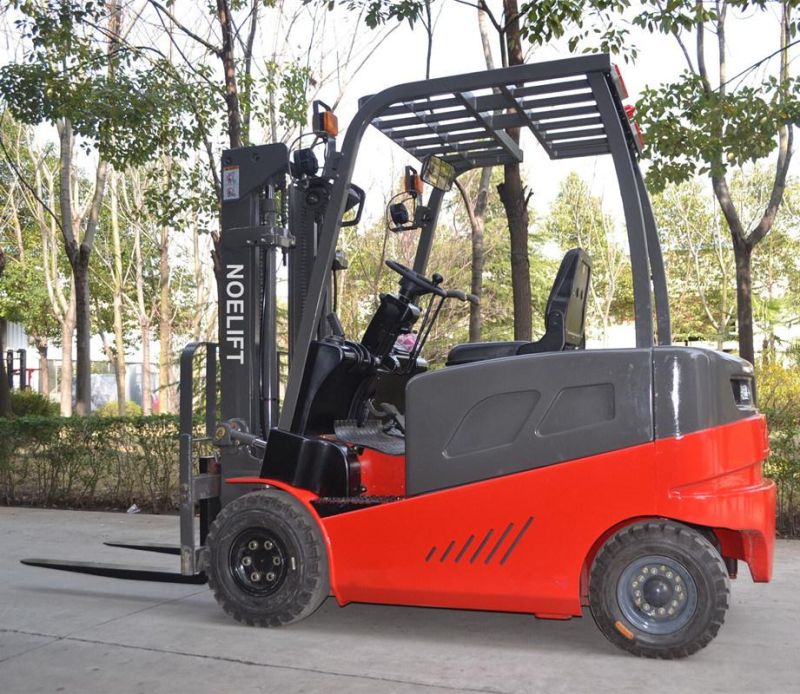

4 wheel electric forklift feature

Rated load capacity: 1500-4999kg, lift height: 3000-6000mm, stable performance, comfortable operation, the advantages are as follows:
1. Initiative shocking proof system, to make sure the forklift more safe and stability;
2. Strenghen mast with high safety factor;
3. Durability: all electric connector with water-proof design;
4. The advanced safe system for mast pipeline, to aviod the out of control for mast when hydraulic system have fault to ensure the good safe;
5. To use MOSFET controller, it's can provide the smooth and cyclic regenerative braking, to extend the working life of motor and battery

1.Loaded Capacity: 2ton,2.5ton,5ton. Optional lift height: 3000-6000mm.

2. Environment-Friendly:
low noise and non-pollution electricity enegy adopted ensure Noelift 3-wheel electric forklift Environment-Friendly.

3. Reliability:
3.1: Two of the kinematic each a precursor is independent motor drive, can be separated into gear and motor two parts, each motor driver is a single and complete transmission device, it is superior performance, self-control and safe operation of the strong double driver.
3.2: Better Stability:Low layout for battery , low center of gravity;
3.3: full hydraulic power-assisted steering system,easy to steering and save the energy;
3.4: Curves safe control: the speed will automatic reduced when turning,to aviod the possibility of rollover;
3.5: Regenerative braking function to increase the working hours for forklift;
3.6: Better Durability: unitary frame with better strength and rigidity,
3.7: Full AC technology with high Efficiency and reliability;

4. Used place:
apply to massive stacking level carrying cargo/discharge goods single/double tray, is similar to the flat cement and asphalt pavement.

5. Strict Quality Inspection System: ISO9001-2008, CE approved.

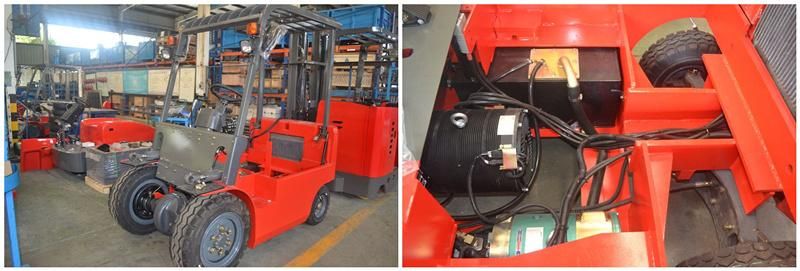

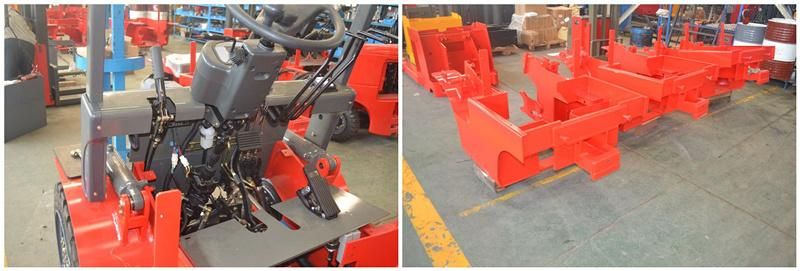

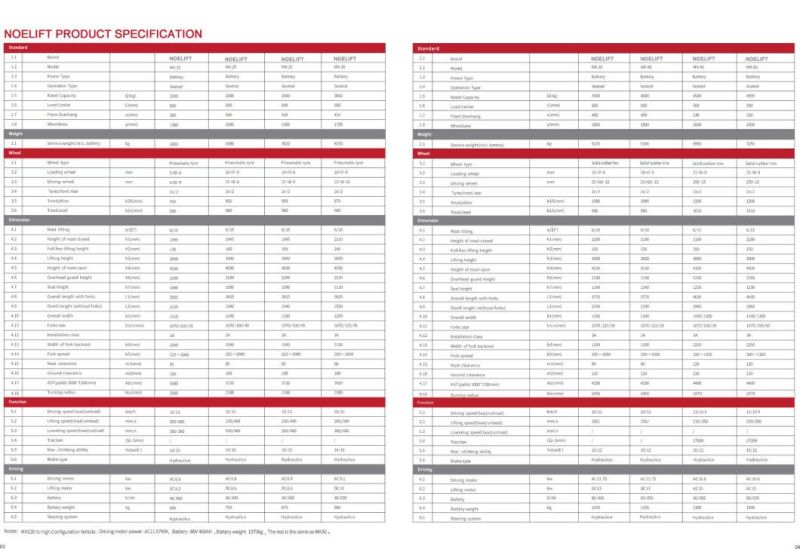

details







our company

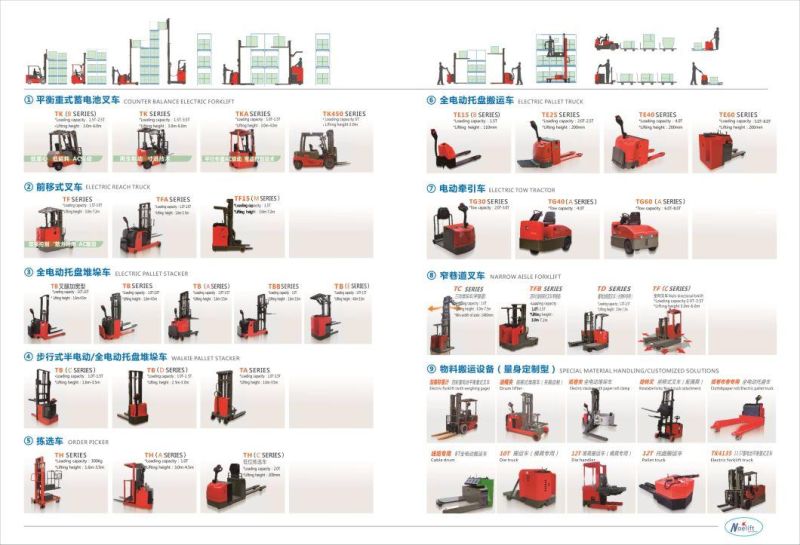

NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1ton to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.




contact

4 wheel electric forklift

Ms. NOE WANG
Web: noelift.en.made-in-china.com
Hangzhou noelift equipment co.,ltd

International packing way with thick plastic film.

Thanks for coming to our Noelift company. if you need more information or technical assistance or any comment or questions, please feel free to contact with me.
