Ltmg 2ton 2.5ton 3ton 3.5ton Electric Forklift Truck with 2 Stage 3 Stage Mast and AC Motor

XIAMEN LTMG CO., LTD.
  • Cab Location：Not Adjustable
  • Type：Electric Forklift
  • Power：AC Motor
  • Load Capacity：1T - 5T
  • Fuel：Electric
  • Load center：500mm

Base Info

  • Model NO.：FB20
  • Lift height：3000~5000mm
  • Condition：New
  • Fork Size：1070mm*122mm*40mm
  • Wheelbase：1400mm
  • Battery：48V-450ah
  • Product Type：Electric Forklift
  • Tire Type：Pneumatic
  • Color：Optional
  • Warranty：1 Year or 2000 Working Hours
  • Weight：3440kg
  • Power Unit ：Battery
  • Control Type ：Driving AC Lifting DC  Lifting AC (a
  • Transport Package：Container
  • Specification：2245mm*1150mm*2145mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427109000
  • Production Capacity：800sets,Year

Description

LTMGModel   FB20Load capacity   kg2000Load center     mm500Power unit   BatteryOperator type  Driver/seatTire type  pneumaticWheel(x=driving)Front/rear        2X/2Max. lifting height   mm3000Free lift  mm160Fork size   L*W*Tmm1070*122*40Tilt range Mast forward/backwarddeg6/12Overall length(without fork)  mm2245Total width  mm1150Mast height (fork lowering)  mm1995Overall height fork raised With backrestmm4030Height to head guard mm2145Turning radius(outside) mm1980Front overhang ( face of fork to front axle) mm445Min. right angle stacking aislenot add load length&clearancemm2425Speed Max Travellingfull loadkm/h13.5Max Travellingno load km/h15Liftingfull loadmm/s240Liftingno load mm/s450Gradeability full load %12.5Truck weight(with standard battery) kg3440Weight  distribution  Fullloadfront/rearkg4565/875Noloadfront/rearkg1445/1995Tires  Number  front/rear2/2Model    front axle21*8-9-16PRrear axle18*7-8-14PRWheelbase  mm1400Tread Front/rear  mm955/950Ground clearanceAt lowest point(mast)  mm110Frame  mm115BrakeServicebrake  Hydraulic-foot pedal                                 Parking brake Mechanical-hand lever                               Battery  Voltage/capacity  V/AH/5hr48V-450Weight with box(standard) kg 825Electric motor AC Driving motor kw11DC Hydraulic driving motor  kw8.6 AC Hydraulic driving motor (as option)kw13Control type  Driving AC , lifting DC
Driving AC , lifting AC (as option ) Operating pressure    kg/cm²175

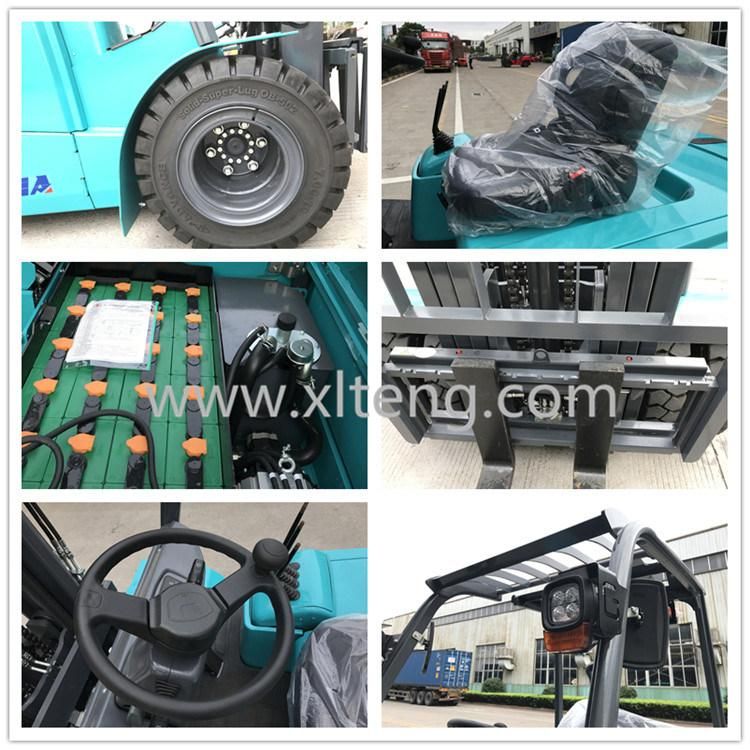

Product Features

1. Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.

2. Designed to work in the rain, electric forklift can be used in various kinds of wet and dry environments.

3. Ergonomics Adjustable seat:Designed according to the ergonomic principles, make the operation much comfortable and also relieves the fatigue caused by long continuous operation.

4. Bigger and non-slip step make operating convenient and safe.

5. The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition.

Ltmg 2ton 2.5ton 3ton 3.5ton Electric Forklift Truck with 2 Stage 3 Stage Mast and AC Motor

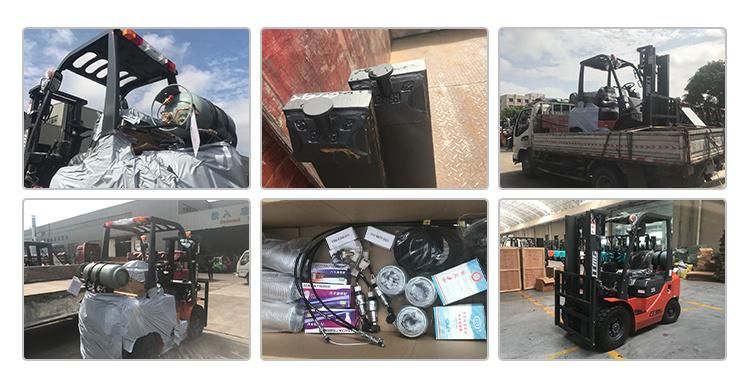

Delivery &Shipment

Ltmg 2ton 2.5ton 3ton 3.5ton Electric Forklift Truck with 2 Stage 3 Stage Mast and AC Motor



Ltmg 2ton 2.5ton 3ton 3.5ton Electric Forklift Truck with 2 Stage 3 Stage Mast and AC Motor




FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
