• Model NO.：FDR30
• Lift height：3000mm
• Condition：New
• Power Type：Diesel
• Rated Capacity：3000kg
• Fork Size：1220*125*45mm
• Wheelbase：1835mm
• Truck Weight：4800kg
• Lifting Height：3000mm
• Tire：Pneumatic
• Transmission：Automatic
• Drive Type：2WD
• Fuel Tank：60L
• Transport Package：Container
• Specification：3060mm*1604mm*2115mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000units,Year

Model

FDR30
Power Type

Diesel
Rated Capacity
kg
3000
Load Center
mm
600
Lift Height
mm
3000
Fork Size
L×W×T
mm
1220×125×45
Mast Tilt Angle
F/R
Deg
10°/12°
Front Overhang(Wheel center to fork face)
mm
601
Ground Clearance(Bottom of mast)
mm
265
Overall Dimension
Length to face of fork(Without fork)
mm
3060
Overall Width
mm
1604
Mast Lowered Height
mm
2115
Mast Extended Height(With backrest)
mm
4250
Overhead Guard Height
mm
2200
Turning Radius(outside)
mm
2750
Min. intersecting aisle
mm
2615
Speed
Travel (Empty load)
km/h
22
Lifting(Full load)
mm/s
450
Max.Gradeability
%
16
Tire
Front
mm
14-17.5-14PR
Rear
mm
27×10-12-12PR
Wheelbase
mm
1835Truck weight
kg
4800
Battery
Voltage/Capacity
V/Ah
12/90
Engine
Model

4TNE98
Manufacture

YANMAR
Rated output/r.p.m.
kw
42.1/2300
Rated torque/r.p.m.
N·m
186-206/1700
No.of Cylinder

4
Bore×Stroke
mm
98×110
Displacement
cc
3318
 Fuel Tank Capacity
L
60
Transmission Type

Automatic
Drive Type

2WD

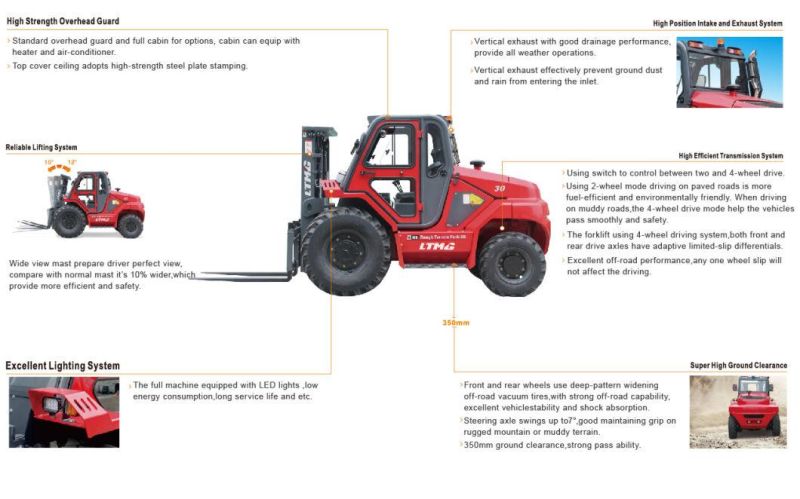

Product Features



1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

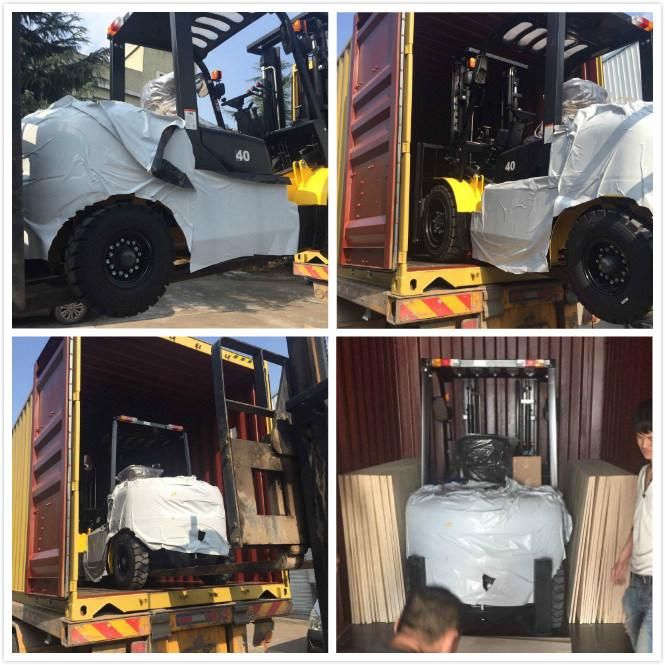

Packaging & shipping


After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
