Ltmg 5ton Diesel Forklift with Triplex Full-Free Mast and Optional Lifting Height
XIAMEN LTMG CO., LTD.- Warranty：1 Year or 2000 Working Hours
- Cab Location：Adjustable
- Type：Powered Pallet Truck
- Power：Diesel Engine
- Load Capacity：5ton
- Fuel：Diesel
Base Info
- Model NO.：FD50
- Load center：600mm
- Lift height：3000~5000mm
- Condition：New
- Fork Size：1220mm*150mm*60mm
- Weight：7830kg
- Engine：Mitsubishi or Other
- Wheelbase：2000mm
- Color：Decided by Buyer
- Rated Power：52kw,2300rpm
- Overall Length(Without Fork)：3183mm
- Item：5t Manual Hydraulic Forklift
- Brand：Ltmg
- Transport Package：Container
- Specification：3183mm*1485mm*2390mm
- Trademark：LTMG
- Origin：China
- HS Code：84272090
- Production Capacity：1000sets,Year
Description
The specification of 5ton diesel forklift Model FD50 Power Type Diesel Rated Capacity kg 5000 Load Centre mm 500 Lift Height mm 3000 Fork Size(L×W×T ) mm 1070×150×50 Mast Tilt Angle(F/R) Deg 6°/12° Front Overhang (Wheel center to fork face) mm 579 Ground Clearance(Bottom of mast) mm 150 Length to face of fork(Without fork) mm 3260 Overall Width mm 1460 Mast Lowered Height mm 2270 Mast Extended Height(With backrest) mm 4165 Overhead Guard Height mm 2340 Turning Radius (outside) mm 2910 Travel Speed(Full load) km/h 25 Lifting Speed(Full load) mm/s 380 Max.Gradeability (No load/Full load) % 20 Front Tire mm 300-15-18PR Rear Tire mm 7.00-12-12PR Wheelbase mm 2100 Service weight kg 6700 Battery(Voltage/Capacity) V/Ah (12/80) x 2 Engine Model 6BG1-02 Manufacture ISUZU Rated output/r.p.m. kw 82.4/2000 Rated torque/r.p.m. N·m 416.8/1500 No.of Cylinder 6 Bore×Stroke mm 105×125 Displacement cc 6494 Fuel Tank Capacity L 130 Transmission Type Hydraulic Stage FWD/RVS 2/1
Product Features
1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
packaging&shipping
Our clients

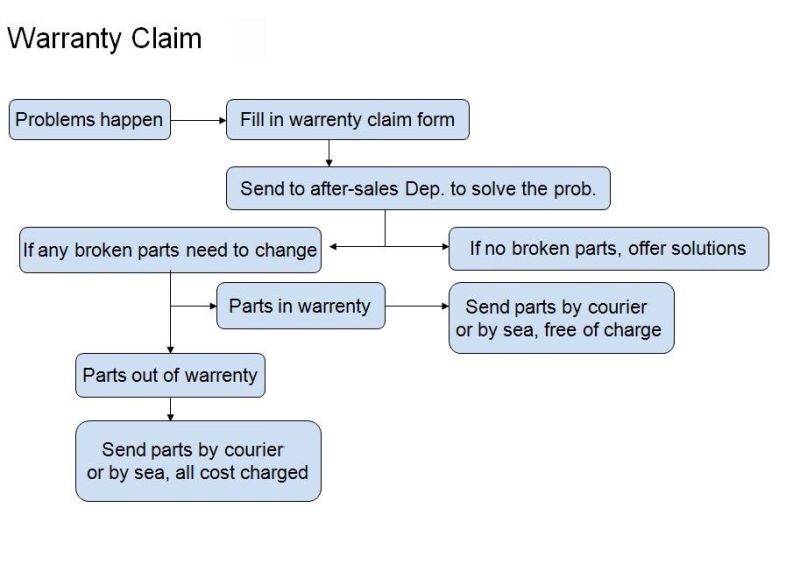

After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 15 days to 35 days.
