• Model NO.：FD50
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：8050kg
• Engine：Luotuo
• Wheelbase：2250mm
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Rated Power：82.3kw,2000rpm
• Ground Clearance：240 mm
• Brand：Ltmg
• Warranty：1 Year or 2000 Working Hours
• Transport Package：Nude Packing, Fixed in Container
• Specification：3455mm*1995mm*2500mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000set,Years

Model                              FD50Load capacity                         kg5000Load center                            mm600Power unit                                Diesel   Operator type                          Driver/seat Tire type                             Pnenumatic  Wheel            Front/rear 2/2Max. lifting height    mm3000Free lift    mm140Fork size    L*W*Tmm1220*150*60Tilt range         Mast forward/backward  deg6/12Overall length(without fork)    mm3183Total width     mm1485Mast height (fork lowering)   mm2390Overall height fork raised With backrest mm4295Height to head guard    mm2270Turning raduis(outside)  mm2865Front face of fork to front axle mm560Min. right angle stacking aislepallet size :1100×1100
add clearence mm4670Speed  Max Travelling
full/no loadkm/h18/19Lifting full/no load   mm/s380/430Lowering full/no load mm/s380/340Max.drawbar pull full/no load  kg4500/2000Gradeability at 1.6km/h full load %25Truck weight kg7830Weight  distribution Full  load front/rear kg10280/1790No  load  front/rear kg3330/4500Tires Number front/rear2/2Model front axle300-15-18PRrear axle 7.00-12-12PRWheelbase    mm2000TreadFront/rearmm1180/1190Ground clearence At lowest point(mast) mm100Frame mm240Brake Service  brake power brakeParking brake  Mechanical-hand lever Battery  Voltage/capacityV/AH2-12/80Engine Model  MITSUBISHI S6SRated power kw/rpm52/2300Rated torque N-m/rpm248/1700Number of cylinders  6Displacement L4.996Fuel tank capacity L80Transmission shift stage(front/rear-type) 2-1 power shift T/M Operating pressureHydraulic system pressurekg/cm²200

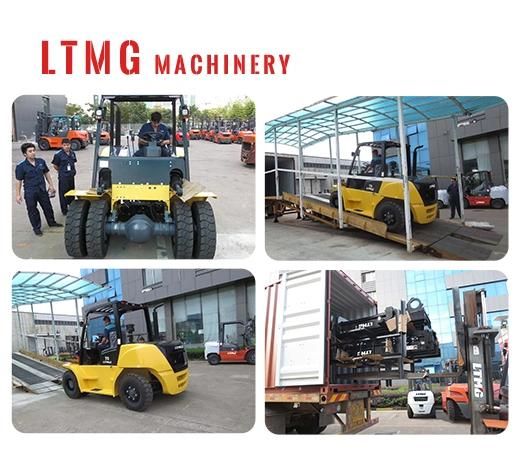

Packaging&Shipping

Factory&Customer




Product Features

1.Equipped with powerful and reliable original imported Mitsubishi engine with excellent environmental performance;
2.Install optional three-way catalytic conveter device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise andhigh exhaust system as option to reduce dust.
3.Install heavy-duty driving axle to ensure safety work at bad working conditions.
4.Equipped with the powerful and efficient engine , suitable for the Europe III emission standard (Mitsubishi S6S-T)
5.Forward visibility has been improved 10%.The wide mast,with lift chain spacing,makes the view forward less cluttered,enhance safety and improve productivity.
6.LTMG forklift trucks are designed for the operator to be more productive and require less downtime for maintenance.

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

FAQ

1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.


2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 7 days to 90 days.
