Heli 1 Ton Mini Diesel Forklift Price for Sale
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：1 Year Warranty
- Warranty：1 Year Warranty
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：≤1T
Base Info
- Model NO.：CPCD10
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Turning Radius：1880mm
- Ground Clearance：115mm
- Service Weight：2430kg
- Engine：Cummins,Weichai,Xinchai
- Transport Package：Nude
- Specification：1 ton
- Trademark：HELI
- Origin：China
- HS Code：84272090
- Production Capacity：100units,Month
Description
Model
Unit
CPCD10H
Load Capacity
Kg
1000
Load Center
mm
500
Mast Lifting Height
mm
3000
Mast Free Lift
mm
155
Mast Lifting Speed (With Load)
mm/s
550
Mast Tilting Angle (Front/Rear )
6°/ 12°
Driving Speed
km/h
13.5
Turning Radius
mm
1880
Ground Clearance
mm
115
External Dimension
Length to Face of Forks
mm
2171
Overall Width
mm
1080
Height of Overhead Guard (Cabin)
mm
2060
Height of Mast, Extended
mm
3930
Wheelbase
mm
1400
Tread
Front
mm
891
Rear
mm
920
Overhang (front)
mm
407
Fork
mm
1070
Service Weight
kg
2430

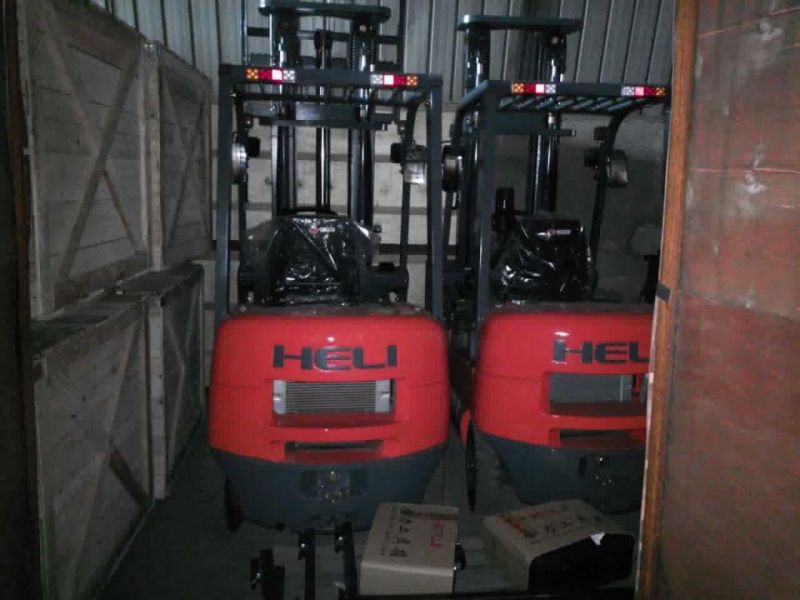

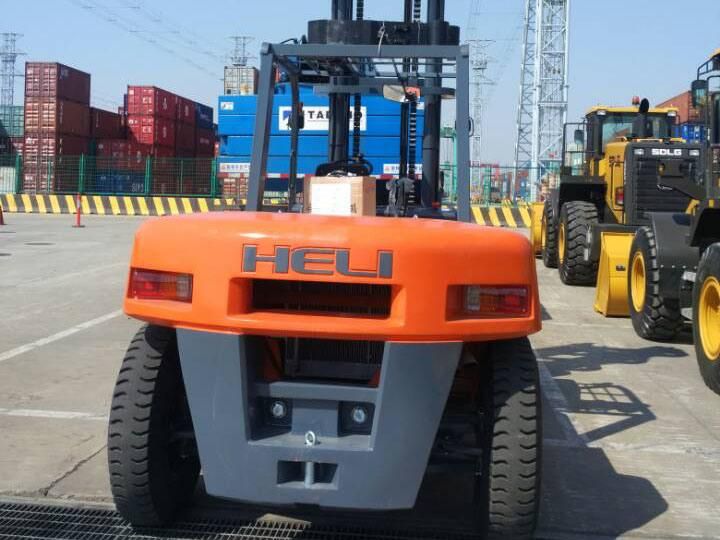

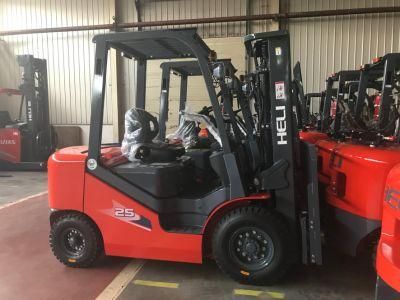

More pictures
Our factory
