• Model NO.：FD30
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Free Lifting Height：145mm
• Fork Size：1070*125*45mm
• Mast Tilt Angle：6,12 Degree
• Min. Turning Radius：2600mm
• Min. Stacking Right Angle Channel Width：4550mm
• Min. Ground Clearance：120mm
• Overhead Guard Height：2170mm
• Front Overhang：480mm
• Rear Overhang：545mm
• Transport Package：Nude Package
• Specification：2825*1230*2170mm
• Trademark：SNSC
• Origin：China
• HS Code：84272090
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. FD30 Fuel Diesel Load center 500mm Lift height 3000~5000mm Condition New Free Lifting Height 145mm Fork Size 1070*125*45mm Mast Tilt Angle 6/12 Degree Min. Turning Radius 2600mm Min. Stacking Right Angle Channel Width 4550mm Min. Ground Clearance 120mm Overhead Guard Height 2170mm Front Overhang 480mm Rear Overhang 545mm Transport Package Nude Package Specification 2825*1230*2170mm Trademark SNSC Origin China HS Code 84272090 Production Capacity 1000 Sets Per Month

Product Description

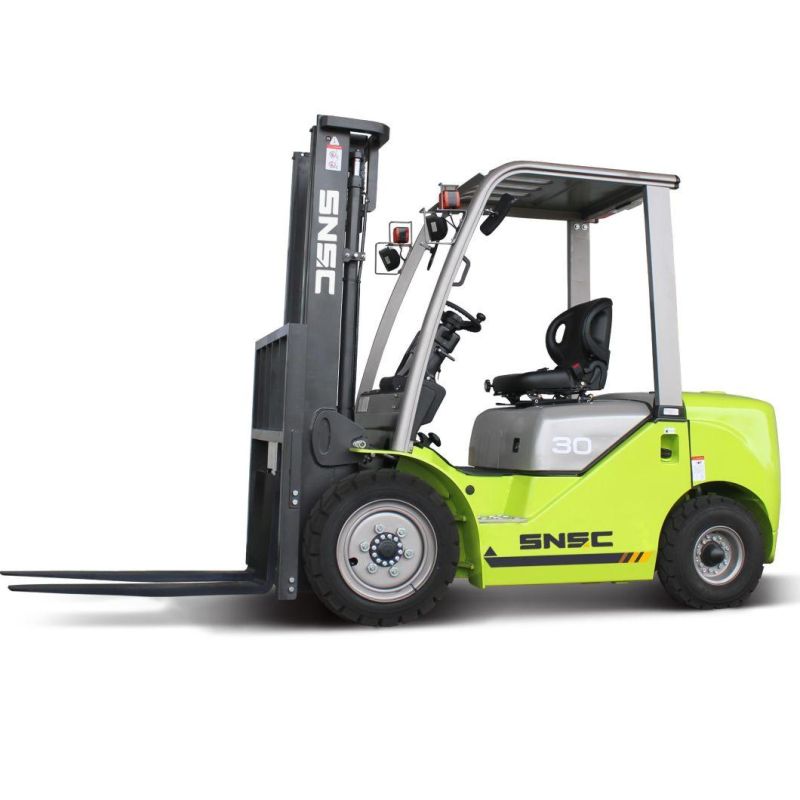

New Design Forklift Diesel Forklift 3ton lifter forklift

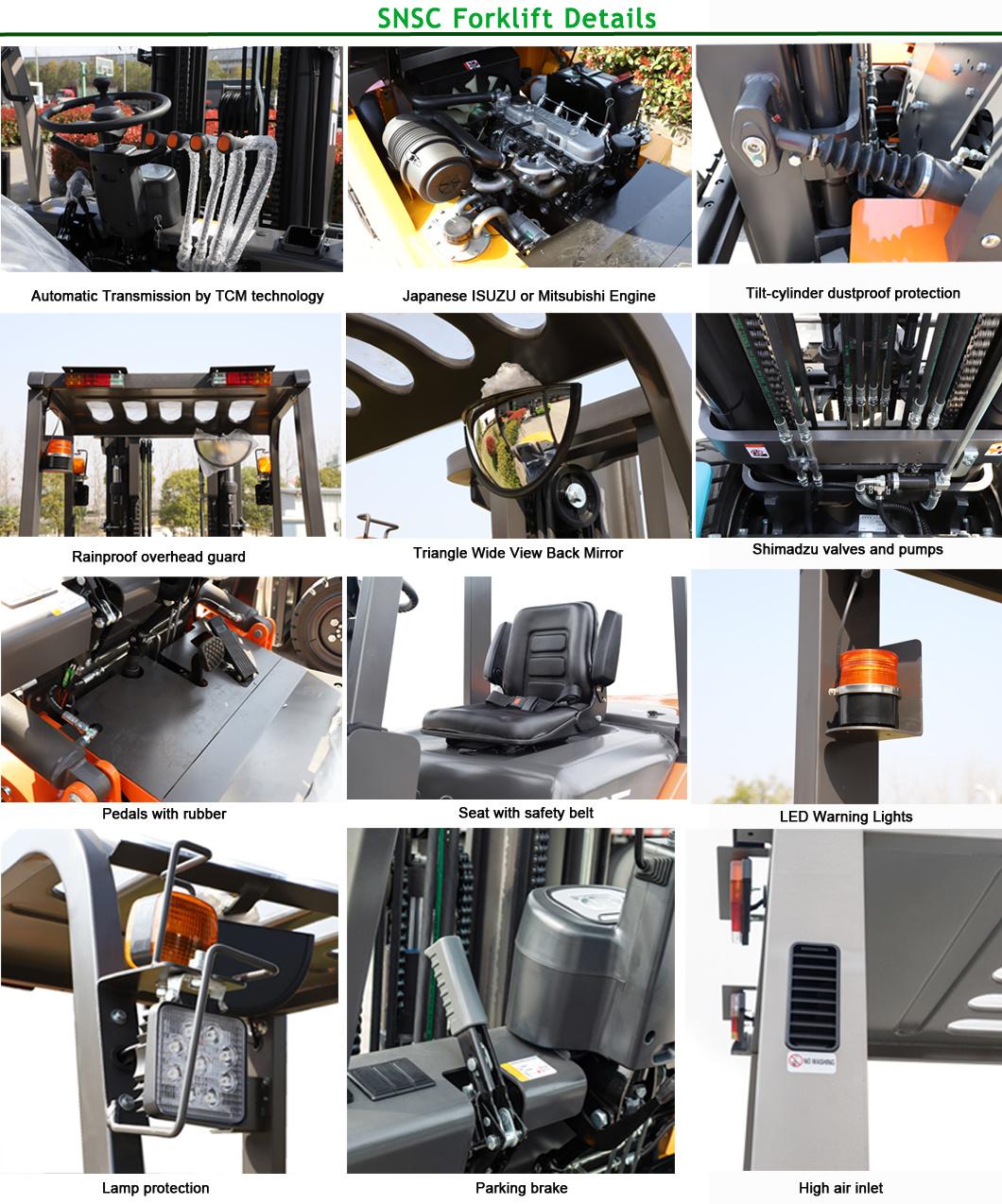

Details:
Standard China Xinchai C490BPG Engine;
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);
Standard 2-stage 3m mast;
Electric Hydraulic Automatic Transmission by TCM technology;
Lamp protection;
Tilt-cylinder dust-proof protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Standard Pneumatic Tires

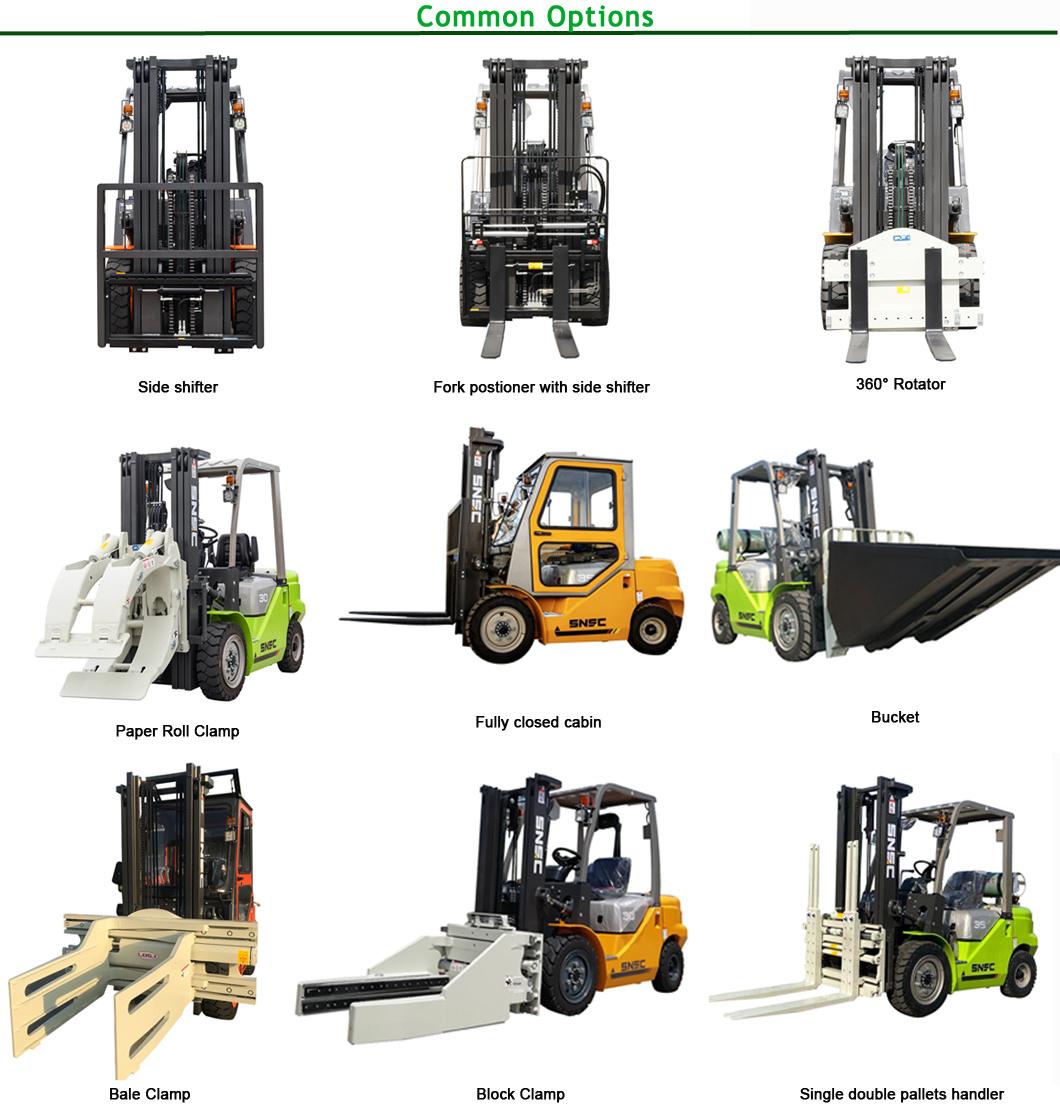

Common Options:
Japan C240 Engine or Japan Mitsubishi S4S Engine,
Solid Tires;
3m-7m duplex or triplex full free mast;

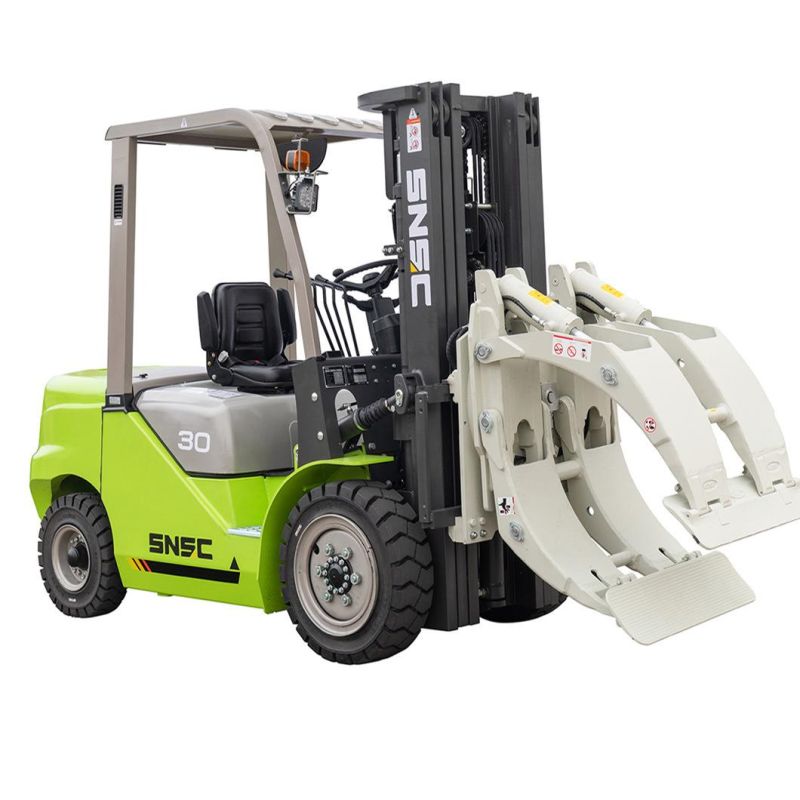

Attachments such as paper roll clamp, block clamp, bale clamp, bucket, etc;
Fully closed cabin with heater or air conditioner;
Side shifter and fork positioner;
Fully suspension luxury seat;
Double filter;
High exhaust;
Customized color except green, red and orange.

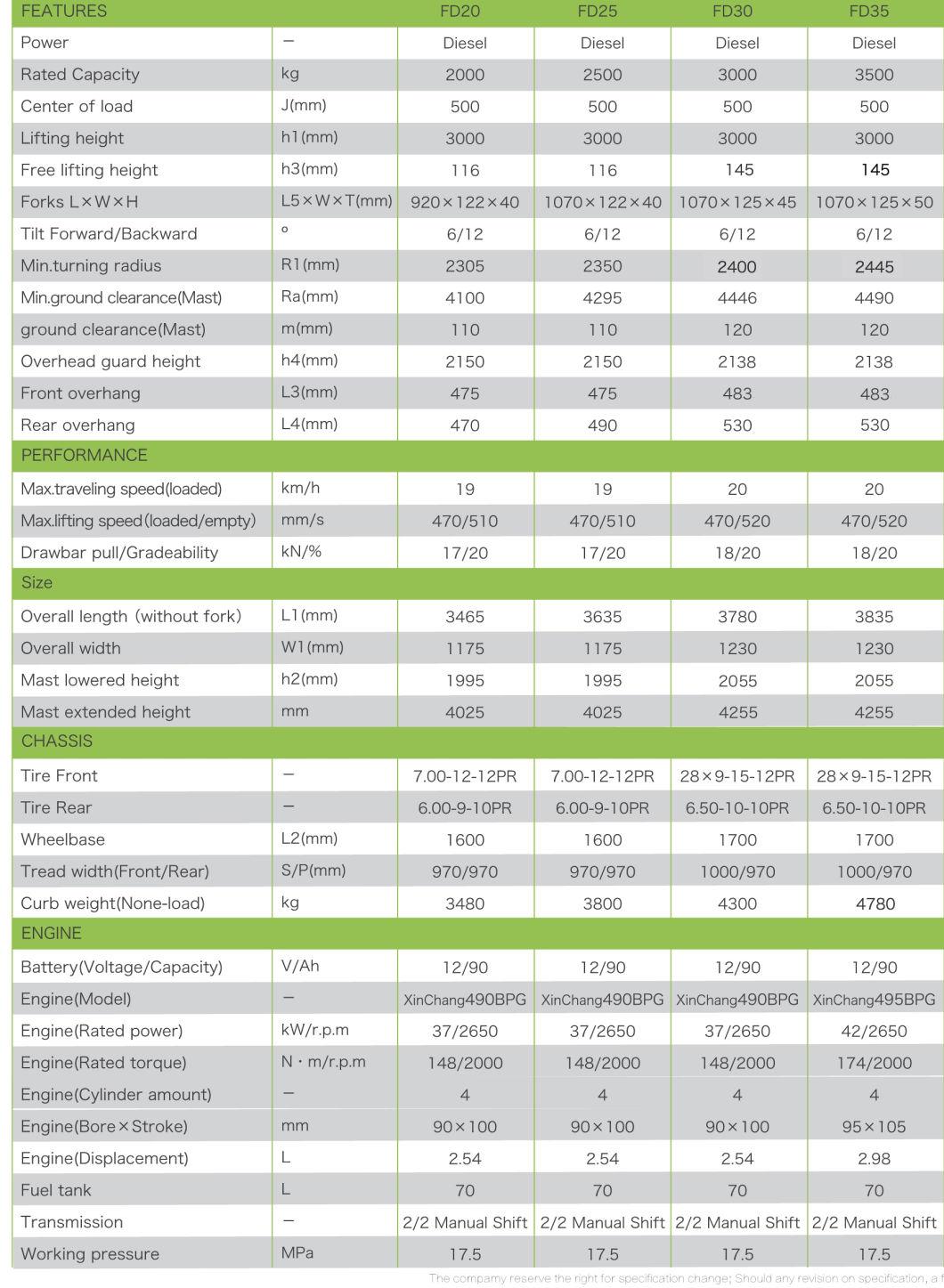

Specifications:

Details of 3Ton Diesel Forklift FD30


3 Ton Diesel Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."


We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands
