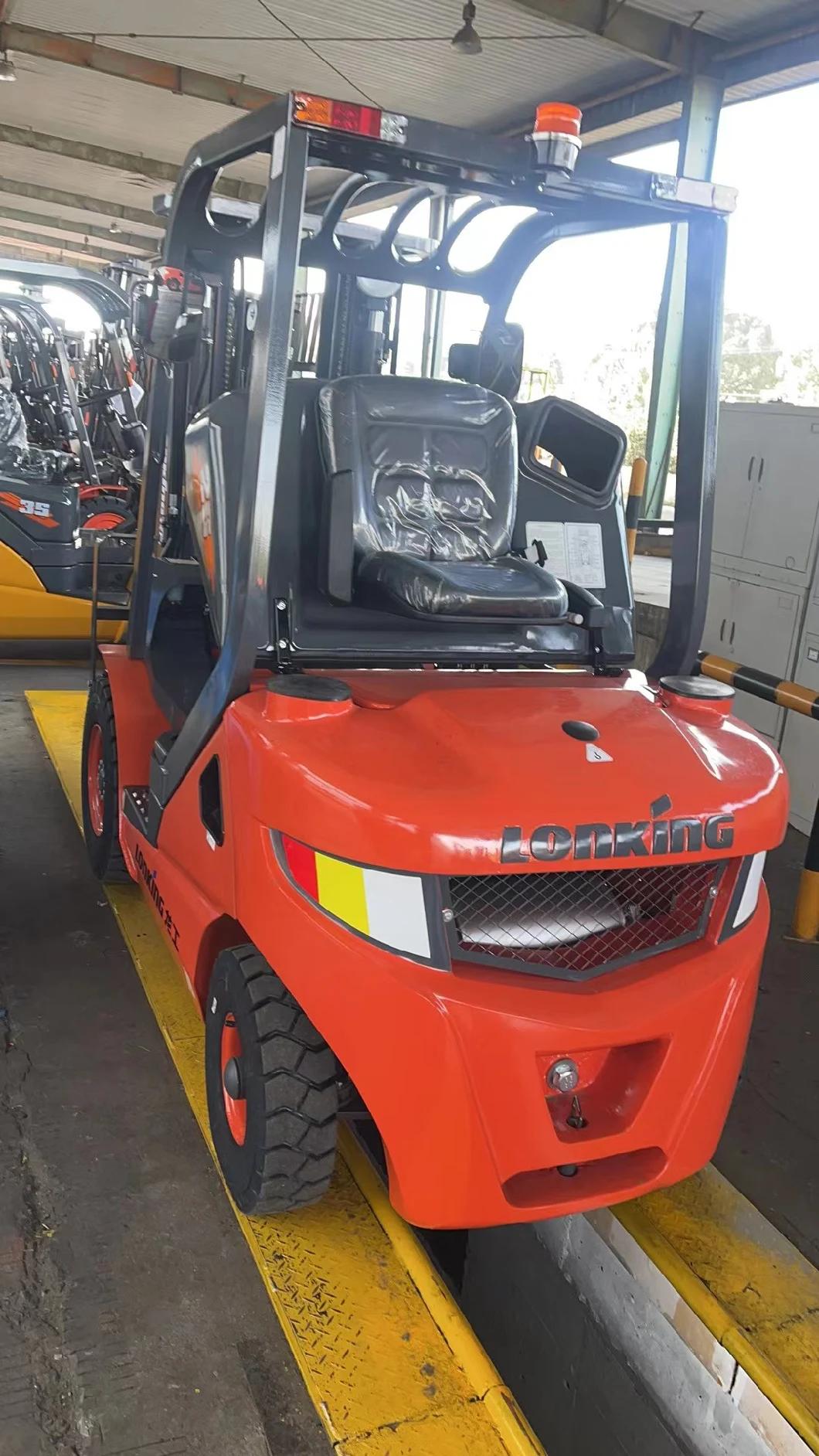

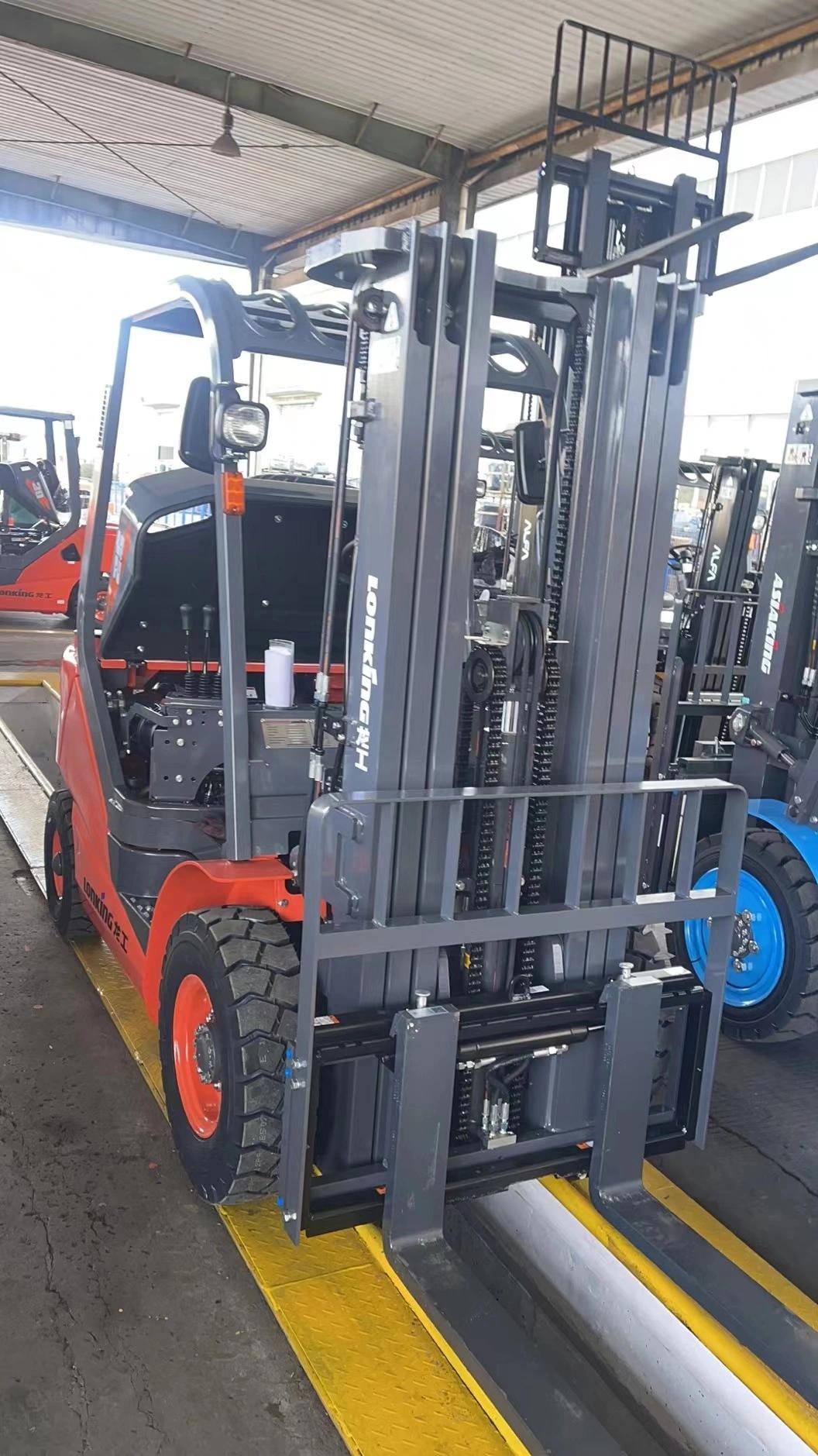

Good Price China Brand Lonking 2.5 Ton Diesel Forklift LG25dt
Sinomada Heavy Industry (Changsha) Co., Ltd.- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：LG25DT
- Lift height：3000~5000mm
- Condition：New
- Name：Forklift
- Power Type：Diesel
- Transport Package：Container
- Specification：3670*1165*2130 mm
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：1000sets,Month
Description
MODEL
LG25DT
Power type
Diesel
Rated capacity (Kg)
2500
J Load centre (mm)
500
h1 STD Max lifting height (mm)
3000
h3 Free lifting height (mm)
110
L5*W*T STD Fork size (mm)
1070×120×40
Mast tilt angle (deg)
6/12
L3 Front overhang (mm)
448
L4 Rear overhang (mm)
500
Overall dimension
L1 Overall length(mm)
3670
W1Overall width (mm)
1165
h2 Mast lowered height (mm)
2135
h4 Overhead guard height (mm)
2130
R1 Min.turning radius (mm)
2300
Min .intersecting aisle (mm)
3950
Speed(load/unload)
Max.traveling speed (km/h)(F/R)
20/18.5
Max,lifting speed (mm/s)(load/unload)
480/510
Max.gradient (%)
20
Dead weight (kg)
3500
S/P Tread(frnt/rear)(mm)
970/980
L2 Axle distance (mm)
1650
Min.ground clearance
m2 Mast (mm)
135
m1 Frame (mm)
160
STD Engine
Xinchai C490
Rated power(kw)
36.8
