• Model NO.：FRB25
• Warranty：1 Year , 2000 Working Hours
• Truck Weight(Without Battery)：2385kg
• Certificate：CE,ISO
• Transport Package：Nude Packing, Fixed in Container
• Specification：2095mm*1250mm*2315mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

SPECIFICATION1Manufacturer   LTMG2Model   FRB253Max.Lift capacity  Kg25004Load center  Mm5005Power unit   Battery6Operator type   Standing type7Tires type Fwd/bwd Solid tireDIMENSIONS8Max.Lift height  Mm30009Free lift  Mm41010Fork size L*W*HMm920*122*4011Tilt angle Fwd/bwdDeg3/512Total length without fork  Mm209513Total width  Mm125014Mast height (fork lowered)Mm203515Overall height fork raised  Mm393016Height of head guard  Mm231517Turning raduis (outside)  Mm197018Distance from front wheel center to forks face  Mm16519Right angle stacking aisle  Mm271020Reach distance(mast)  Mm770PERFORMANCE21Max.Travelling speed fw/bwFull loadKm/h10.5No loadKm/h1122Lifting speedFull loadMm/s240No loadMm/s48023Lowering speedFull loadMm/s450No loadMm/s55024GradeabilityFull load%10WEIGHTS25Truck weight(without battery) Kg238526Weight Distribution
(with standard battery)Full loadFrontKg3250RearKg2200No loadFrontKg880RearKg2070CHASSIS & WHEELS27TiresNumberFront/rear 2/1X+2 (X=drivenl)SizeFront,load Ф267x127Rear,drive Ф393x152Rear,steering Ф204x7628Wheelbase Mm170029Tread Front/rearMm1125/70530Ground ClearenceAt lowest pointMm75Mast 8531BrakeService brake  MechanicalParking brake  MechanicalDRIVE LINE32Battery(standard)Voltage/capacity V/AH48/32033Weight Kg56534Electric motorsDrive motor Kw/60min6Hydraulic motor Kw/5min8.6Steering motor Kw/60min0.335Control typeDriving motor  AC ConverterHydraulic motor  DC ChopperSteering motor  DC Chopper36Operating Pressure  Kg/cm2175

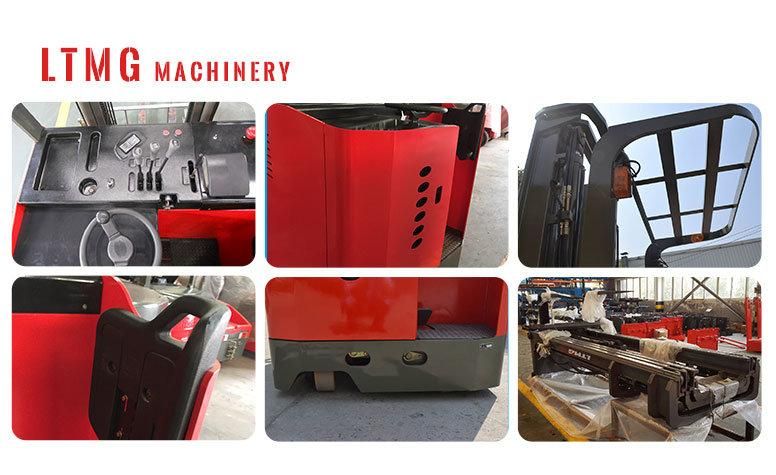

Product Details picture

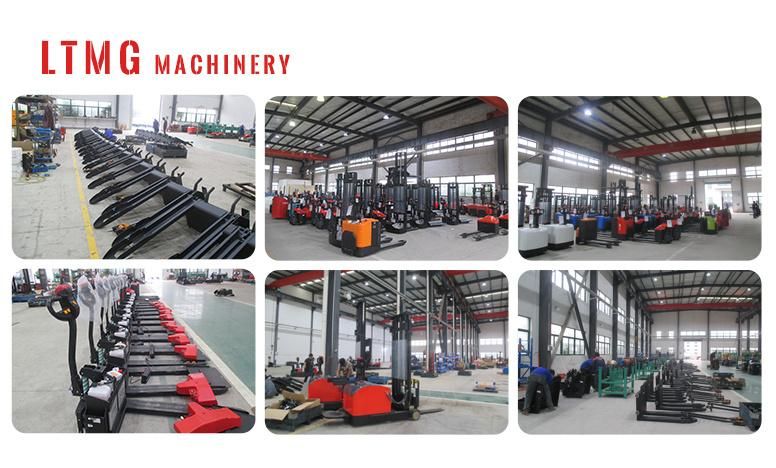

Factory Show
LTMG machinery is engaged in reach forklift trucks industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors


Product Features

1.Safety Device for neutral position to increase the safety of forklift;
2.High Strength frame to protect the operator;
3.Oil-way stop Valve,to protect the operator and goods;
4.AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5.Inching capacity, the forklift can finish the extremely adjustment during moving;
6.With Imported AC motor without Carbon brush, dustproof, damp proofing,long working life, lower use-cost, controlled voltage/frequency;
7.To use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened;
8.To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;
9.High Speed Limited, the forklift will reduce the lift speed when lift to a high position;
10.High Strength overhead guard to protect the operator.


After sales service

LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.




FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.

 2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.

 3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

 4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

 5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

 6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.

Welcome to contact us for further questions!
