20ton Diesel Forklift Truck with Isuzu Engine Ce

Uptra Electric & Machinery (Shanghai) Co., Ltd.
  • Type：Diesel Forklift
  • Power：Diesel Engine

Base Info

  • Model NO.：df
  • Load Capacity：18T - 42T
  • Fuel：Diesel
  • Load center：>500mm
  • Lift height：3000~5000mm
  • Condition：New
  • Overall Dimensions：2873*4425*6035mm
  • Warranty：1 Year
  • Spare Parts：Along with Equipment

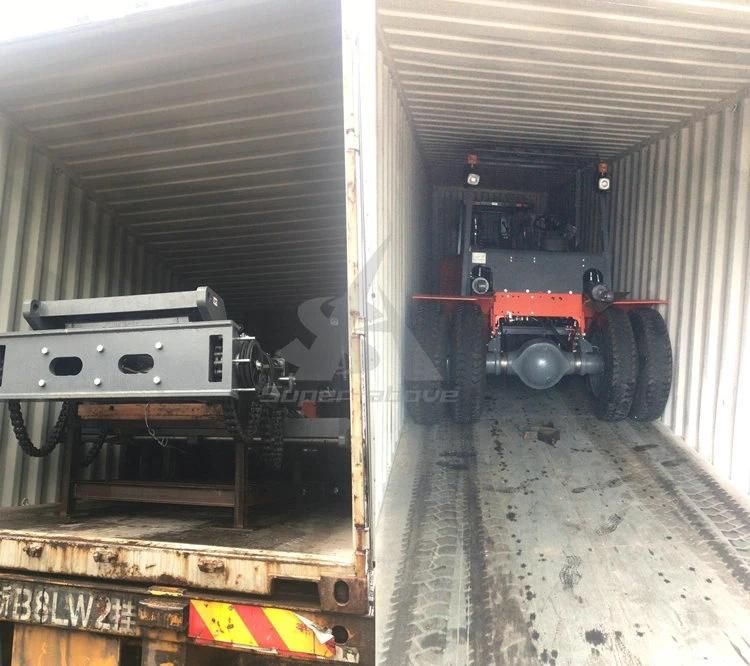

  • Transport Package：Naked in Container
  • Specification：CE
  • Trademark：Super-above
  • Origin：Jiangsu, China
  • HS Code：8705109100
  • Production Capacity：1000PCS,Year

Description

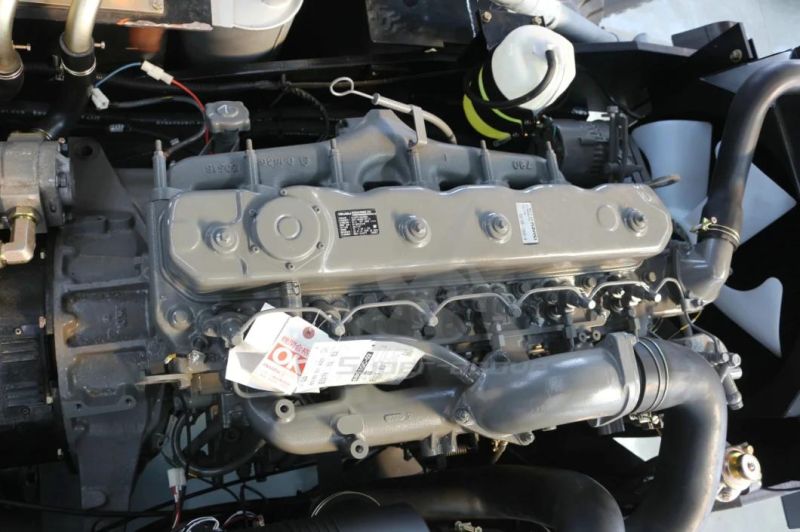

                      SPECIFICATIONS FOR  20 TON FORKLIFT TRUCKConfigurationdiesel heavy duty forklift truck 20 ton UnitSA200PerformanceRated load kg20000 Load center mm900 Free lift mm180 Mast tilt angle (front/rear) º6/12 Overall dimensionsLengthmm8100  Widthmm3020  Heightmm3600  Mast lifting heightmm3500 Fork size (L*W*H) mm2000X260X100 Min. turning radius mm5800 Max. travel speed (with load) Km/h25 Lifting speed (with load) mm/s180 Gradeability (with load) %20 Weight Kg26000TyreFront  4X14.00-24/24PR Rear  2X14.00-24/24PR Wheel treadFrontmm2200  Rearmm2390 Wheelbase mm4000 Min. ground clearance mm250EngineModel  SC8D180 Rated power/rotate speed KW/r.pm132/2000 Max. torque/rotate speed N.m/r.pm810/1600
