10ton Diesel Forklift From China

Uptra Electric & Machinery (Shanghai) Co., Ltd.
  • Type：Diesel Forklift
  • Power：Diesel Engine

Base Info

  • Model NO.：df
  • Load Capacity：5T - 10T
  • Fuel：Diesel
  • Load center：>500mm
  • Lift height：3000~5000mm
  • Condition：New
  • Overall Dimensions：2873*1425*2435mm
  • Warranty：1 Year
  • Spare Parts：Along with Equipment
  • Transport Package：Naked in Container
  • Specification：CE
  • Trademark：Super-above
  • Origin：Jiangsu, China
  • HS Code：8705109100
  • Production Capacity：1000PCS,Year

Description

ModeSACD100Load Capacity(Kg)10000Max lifting height(mm)4000Load Center(mm)600Lifting Speeds(mm/s)with load 320  without load 340Titing angles  (deg)forward /backward    6/12Max Driving Speeds(Km/h)25/27Min turning radius(mm)4080Max Gradebility (%)20Overall lenght(mm)(with forks)5795   (without forks)4295 Overall width(mm)2450Overall height(mm)2835over head guard(mm)2835Fork lenght(L)(mm)1500Transmission Number of Speed Fwd Hydraulic(CD-B)  ELECTRIC(CD-FB)Total Weight(Kg)12000intemal Combustion Enging Model: CHINA CA6DE1 (CD-B)

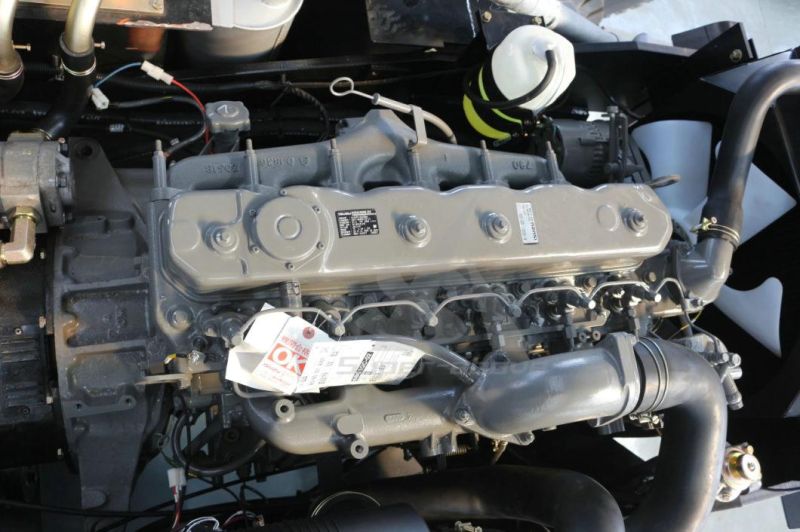

Rated Output: 124/2200 Kw/rpm
Max Torque:  600/1400 Nm/rpm

Model: JAPAN 6D16-TLE2C (CD-FB)
Rated Output: 100/2200 Kw/rpm
Max Torque:  490/1220 Nm/rpm Tire

Front: 10.00-20-14PR
Rear: 10.00-20-14PR
