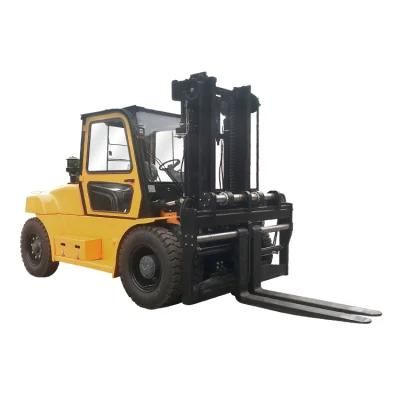

• Model NO.：FD100
• Load center：600mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*175mm*75mm
• Weight：12450kg
• Engine：Isuzu,Chaochai
• Wheelbase：2800mm
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Rated Power：112kw,2000rpm
• Transport Package：Container
• Specification：4255mm*2245mm*2850mm
• Trademark：LTMA
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Features    1Manufacturer                           LTMG2Model                               FD100T3Load capacity                         kg100004Load center                            mm6005Power unit                                Diesel   6Operator type                          Driver/seat  7Tire type                           Pneumatic  8Wheel                                    Front/rear 4/2Dimension  9Max. lifting height                    mm300010Free lift                              mm20511Fork size                           L*W*Tmm1220*175*7512Tilt range                                Mast forward/backward  deg6/1213Overall length(without fork)      mm425514Total width                              mm224515Mast height (fork lowering)   mm285016Overall height fork raised     With backrestmm433017Height to head guard               mm256018Turning radius(outside)            mm390019Front face of fork to front axle mm71020Min. right angle stacking aislepallet size :
1100×1100 add clearance                     mm6250Performance21SpeedMax Travelling full/no loadkm/h24/3022Lifting   full/no load mm/s390/41023Lowering   full/no load mm/s470/34024Max.drawbar pull                   full/no load  kg5850/320025Gradeability at 1.6km/h   full load  %22 Max. Gradeabilityfull/no load%24/20Weight    26Truck weight                        kg1245027Weight  distribution Full  load   front/rear  kg20160/229028No  load    front/rear   kg5480/6970Frame 29Tires Numberfront/rear4/230Modelfront axle  9.00x20-14PR31rear axle9.00x20-14PR32Wheelbase  mm280033Tread                    Front/rearmm1600/170034Ground clearance  At lowest point(mast)         mm245Framemm32035Brake Service  brake power brakeParking brake Mechanical-hand lever  Engine36Battery  Voltage/capacityV/AH2x12V-80AH37Engine Model ISUZU 6BG1Rated powerkw/rpm82.3/2000Rated torqueN-m/rpm418/1500Number of cylinders 6DisplacementL6.494Fuel tank capacityL14038Transmission shift stage(front/rear-type) 2-2 automatic             39Operating pressure Hydraulic system pressure    kg/cm²200
